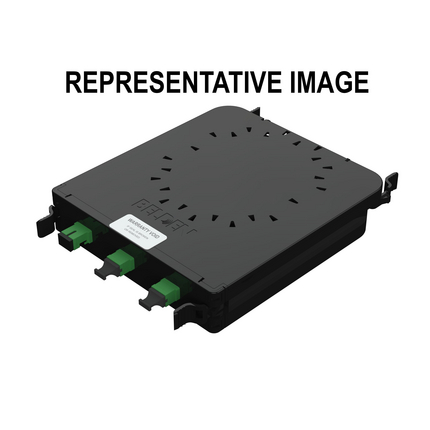

(4)FX ECX Splitter Cassette, OS2, 1 X 16, 1 Splitter, SC/APC Input, MPO/APC Output, Front
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Passive Optical LAN |
| Fiber Type |
|---|
| OS2 |
| Weight: | .600 lbs |
| Height: | 1.30 in |
| Width: | 6.34 in |
| Length: | 8.70 in |
| Max Capacity: | 16 Fibers (Output) |
| Front Connection: | Static |
| Termination Style: | Front |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -10°C To +60°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Housing | PC/ABS | Black | |
| Cover | Polycarbonate | Clear-Light Smoke | |
| Adapter Output | Plastic - UL94V-0 | Green | MPO Adapter |
| Adapter Input | Plastic - UL94V-0 | Green | SC-Simplex/APC |
| Splitter Configuration | IL Max (dB) | Uniformity Max (dB) | PDL Max (dB) | Directivity Min (dB) | RL Min (dB) |
|---|---|---|---|---|---|
| 1 x 16 | 14.000 | 1.200 | 0.300 | 55 | 55 |
| TIA/EIA Compliance: | Telcordia GR-1209-CORE (splitters only), Telcordia GR-1221-CORE (splitters only) |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | FX ECX Housings (4U, 2U, 1U), ECX Splice Cassettes, Patch Cords |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box (12/box) |
| Update and Revision: | Revision Number: 0.29 Revision Date: 02-12-2025 |
