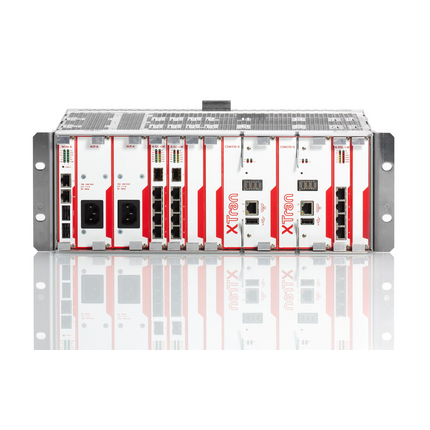

(4)The XTran node consists of a 3 U (3 U = 132.5 mm = 5.22 inches) high, 19 inches rack or DIN rail mountable stainless steel chassis. Each node type has a modular structure. The XT-2206-A node chassis can be equipped with 2 redundant Power Supply Units (PSU), 6 Interface Modules (IFM), 2 redundant Central Swichting Module (CSM) and a Node Support Module (NSM).
| Part Number: | S30926-B2206-X1 |
| MTBF (Telcordia SR-332 Issue 4) @ 25°C: | 665 Years (backplane) |
| Operating Temperature Range: | -30° to +65°C (-22° to 149°F) |
| Storage Temperature Range: | -30° to +75°C (-22° to 167°F) |
| Relative humidity (non-condensing): | 0-95 % |
| Redundancy: | CSM, PSU |
| Overall Width: | 353.5 mm |
| Overall Height: | 132.5 mm |
| Depth: | 220 mm |
| Weight: | 3.0 kg |
| Mount Type: | 19” Control Cabinet or DIN-Rail |
| Fan Cooled: | No |
| Protection class: | IP20 |
| Basis Standard: | CE, EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A2 :2021, EN 55035:2017 + A11:2020, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019 |
| Safety of industrial control equipment: | EN 62368-1:2014 |
| Power Utility: | EN 61000-6-5:2015, EN 61850-3:2014 (§6.7), IEEE 1613-2009 (§4), IEEE1613-2013 (clause 5,7,8,9,10) |
| Transportation: | EN 50121-4:2016 + A1:2019 |
| Guarantee: | Standard 1 year (extension possible) |
| Accessories to Order Separately: | Blank panel for interface slot: C30965-A9550-B1; Blank panel for CSM slot: C30965-A9550-B3; Blank panel for PSU slot: C30965-A9550-B2; 19" mounting kit for XT-2206-A: V30812-A3010-A193; Heavy duty DIN Rail kit XT-2206-A (Factory mounted):V30812-A3010-A195 |
| Product Documentation: | Available via Belden Solutions Portal site |
| Certificates: | Available via Belden Solutions Portal site |
| Update and Revision: | Revision Number: 0.23 Revision Date: 11-14-2025 |
