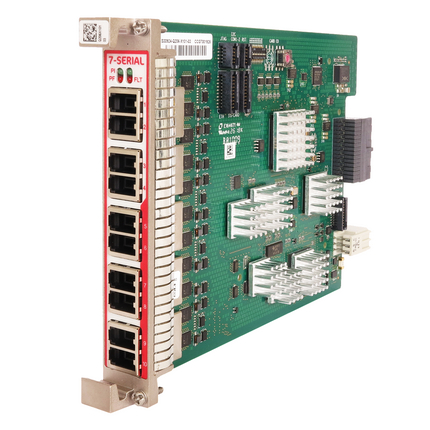

7-SERIAL - XTran Interface Module with 7x serial ports




The 6-SERIAL interface module (=IFM) provides 6 logical serial ports. Depending on how the IFM is used, the amount of available serial ports varies from 4 to 7 per IFM. These ports can be used to transport RS232, RS422 and RS485 in a Serial Ethernet (asynchronous mode) or Circuit Emulation Service (asynchronous/synchronous mode), or X.21 and V.35 in a Circuit Emulation Service (optimized/full mode).

Data Sheet
Share

Product Overview

Part Number: S30924-Q206-X101
Port Type and Quantity: 10x RJ-5 connectors
Port Mode: LAN

Power requirements

Operating Voltage: +12V
Power consumption: Measured at 25°C/77°F, with data transport: 6.5W

Features and Protocols

Synchronization: Asynchronous / Synchronous
Test & Debugging Features: Test & Loopback, Loss Measurement (LM) (in aggregation/access nodes), Delay Measurement (DM) (in aggregation/access node), Tunnel Ping, Tunnel Traceroute, Port Mirroring (can only be a source, can be mirrored to Ethernet IFMs), MAC Monitor (node level)
Configurable Services: Port Interface Types: RS232 / RS422 / RS485 / X.21 / V.35; Serial Port Role: DTE (=Data Terminal Equipment), DCE (=Data Communication Equipment); Circuit Emulation; Serial Ethernet; Serial Port Server

Ambient conditions

MTBF (Telcordia SR-332 Issue 4) @ 25°C: 159 Years
Operating Temperature Range: With XT-1104-A, XT-2206-A, XT-2209-A, XT-2210-A (aggregation nodes): -30° to +65°C (-22° to 149°F); With XT-2215-A (core nodes): -20° to +55°C (-4° to 131°F
Storage Temperature Range: -30° to +75°C (-22° to 167°F)
Relative humidity (non-condensing): 0-95 %

Mechanical construction

Overall Width: 20.32 mm
Overall Height: 126 mm
Depth: 195 mm
Weight: 0.24 kg

Approvals

Basis Standard: CE, EN 55032:2015 + A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A2 :2021, EN 55035:2017 + A11:2020, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019
Safety of industrial control equipment: EN 62368-1:2014
Power Utility: EN 61000-6-5:2015, EN 61850-3:2014 (§6.7), IEEE 1613-2009 (§4), IEEE1613-2013 (clause 5,7,8,9,10)
Transportation: EN 50121-4:2016 + A1:2019

Reliability

Guarantee: Standard 1 year (extension possible)

Scope of delivery and accessories

Accessories to Order Separately: Interface Adapter Kit for Core Nodes: C30965-A9550-D16; Cable set for connector 1-5 (open ended) for 7-SERIAL port 1-3: C30965-A9550-D8; Cable set for connector 6-10 (open ended) for 7-SERIAL port 4-7: C30965-A9550-D9

Further Instructions

Product Documentation: Available via Belden Solutions Portal site
Certificates: Available via Belden Solutions Portal site
Software Download: Available via Belden Solutions Portal site

History

Update and Revision: Revision Number: 0.23 Revision Date: 11-14-2025
