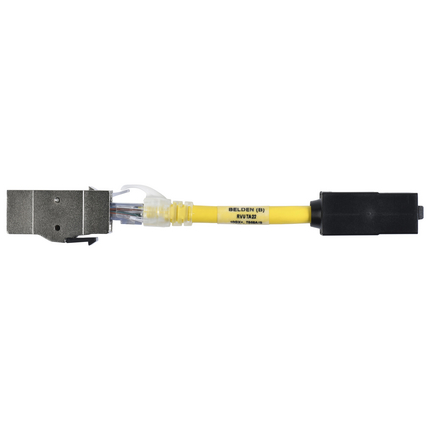

(109)REVConnect FlexPlug Test Adapter Kit
| Suitable Applications: | REVConnect system testing. For use in permanent link testing. |
| Wiring Scheme: | T568A/B |
| Packaging: | Individually packaged in a clear plastic bag. |
| Dielectric Strength: | 1,000 V RMS @ 60 Hz |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -20°C To +60°C |
| Plug /Jack Compatibility: | RJ45, REVConnect Core |
| Termination | Connection | Durabilities |
|---|---|---|
| Cable End 1 - RJ45 | Mated Connection | 1000 Cycles |
| Cable End 2 - REVConnect | Mated Connection | 1000 Cycles |
| RJ45 | Mated Connection |
| TIA/EIA Compliance: | Category 6A - ANSI/TIA 568.2-D, Category 6A - ISO/IEC 11801-1 |
| EU Directive 2002/95/EC (RoHS): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Oil Resistance: | No |
| Suitability - Outdoor: | No |
| Suitability - Sunlight Resistance: | No |
| Related Parts: | RVUTA01, RVUTA22, RVUTA02 |
| Included Parts: | RVUTA22, AX104552 |
| Update and Revision: | Revision Number: 0.13 Revision Date: 03-27-2024 |
