RVUTA01 - REVConnect Coupler Test Adapter Kit

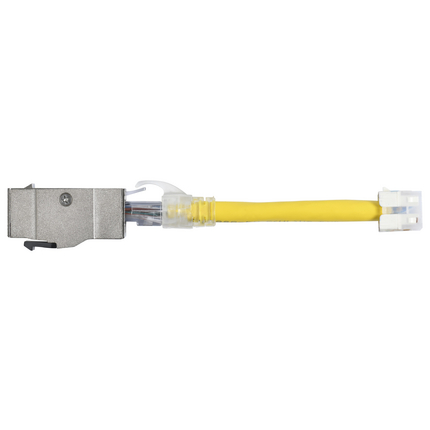

REVConnect Coupler Test Adapter Kit

Product Overview

Suitable Applications: REVConnect system testing. For use in permanent link testing.

Physical Characteristics (Overall)

Wiring Scheme: T568A/B
Packaging: Individually packaged in a clear plastic bag.

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -20°C To +60°C

Mechanical Characteristics

Plug /Jack Compatibility: RJ45, REVConnect Core
Termination Interface
TerminationConnectionDurabilities
Cable End 1 - RJ45Mated Connection1000 Cycles
Cable End 2 - REVConnectMated Connection1000 Cycles
RJ45Mated Connection

Standards

TIA/EIA Compliance: Category 6A - ANSI/TIA 568.2-D, Category 6A - ISO/IEC 11801-1

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes
EU Directive 2011/65/EU (RoHS 2): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Oil Resistance: No
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No

Part Number

Related Parts: RVUTA21, RVUTA22, RVUTA02

Product Notes

Included Parts: RVUTA02, AX104552

History

Update and Revision: Revision Number: 0.9 Revision Date: 03-16-2021
