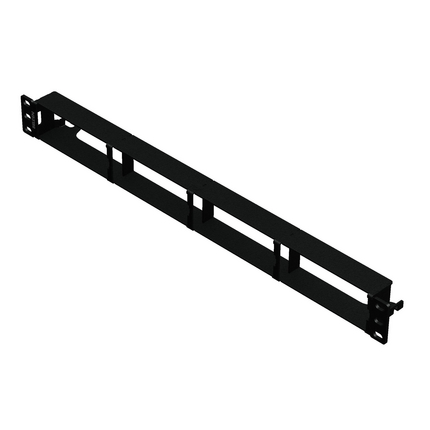

RVEPPF1U48BK - REVConnect Patch Panel, Empty, Flat, 1U, 48P

REVConnect Empty Patch Panel, Flat, 48 Port, 1U, Black

Product Overview

Suitable Applications: For use with REVConnect High Density Termination Modules

Physical Characteristics (Overall)

Height: 1.73
Width: 19
Depth: 2
Front Connection: Flush
Packaging: Individually packaged in a cardboard box.
Weight: 2.088


Management BarSteelBlack

Construction and Dimensions

Max Capacity: 48 Connectors

Temperature Range

Installation Temperature Range: -10°C to +60°C
Storage Temperature Range: -40°C to +70°C
Operating Temperature Range: -10°C to +60°C

Mechanical Characteristics

Footprint/Type: REVConnect

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU Directive 2011/65/EU (RoHS 2): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Related Part Numbers

Related Parts: REVConnect 12-port Termination Modules, REVConnect Blank Modules

Product Notes

Included Parts: 1 REVConnect Empty High Density Patch Panel; 1 Rear Cable Management Bar; 4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 1 Installation Guide
Notes: For proper installation, refer to Installation Guide PX107031.


Update and Revision: Revision Number: 0.27 Revision Date: 05-31-2024
