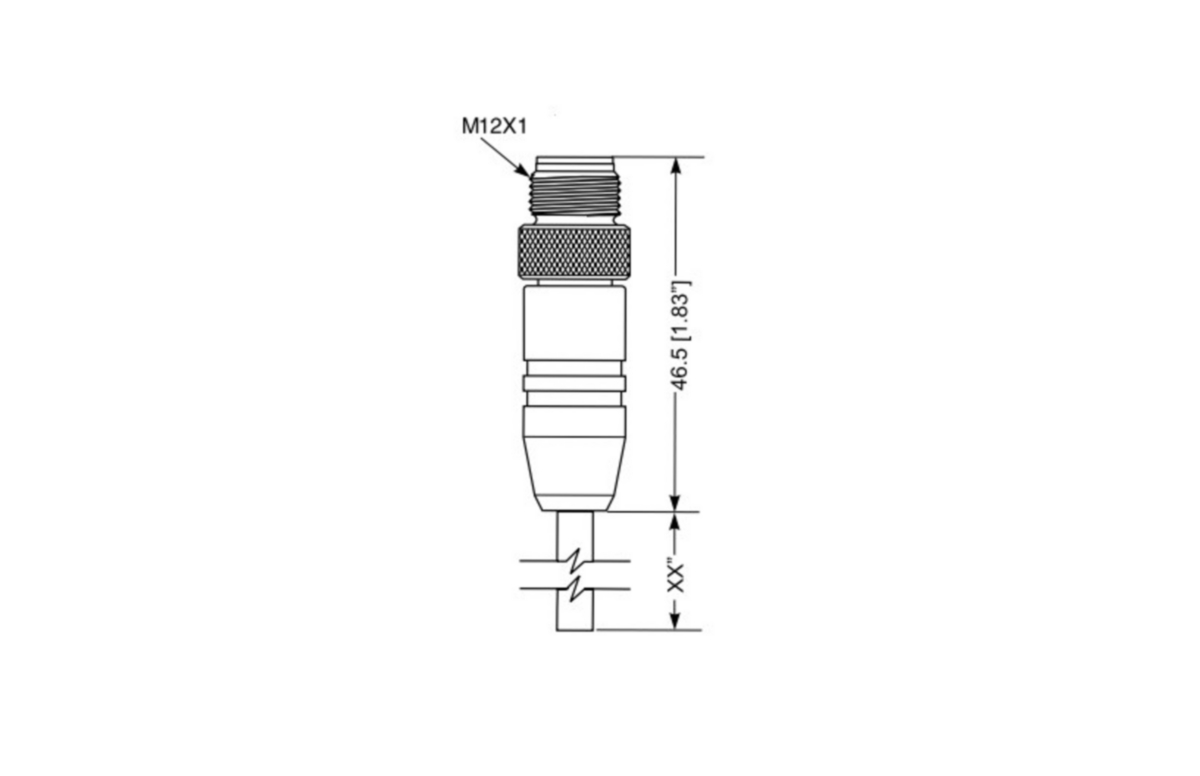

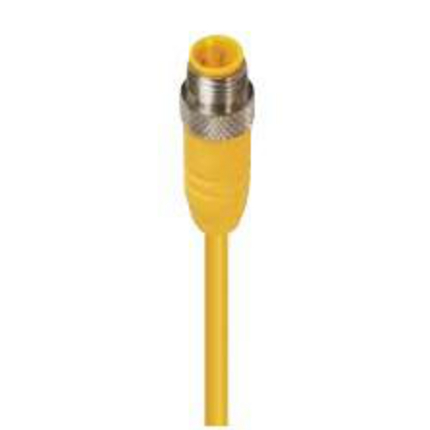

(4)RST 5-794 - M12 - Male 0° to Open | #Contacts: 5 | 30 V | Cable TPE YE, 18 AWG, IEC | cURus
| Brand: | Belden |
| Connector Design: | Straight (0°) Body |

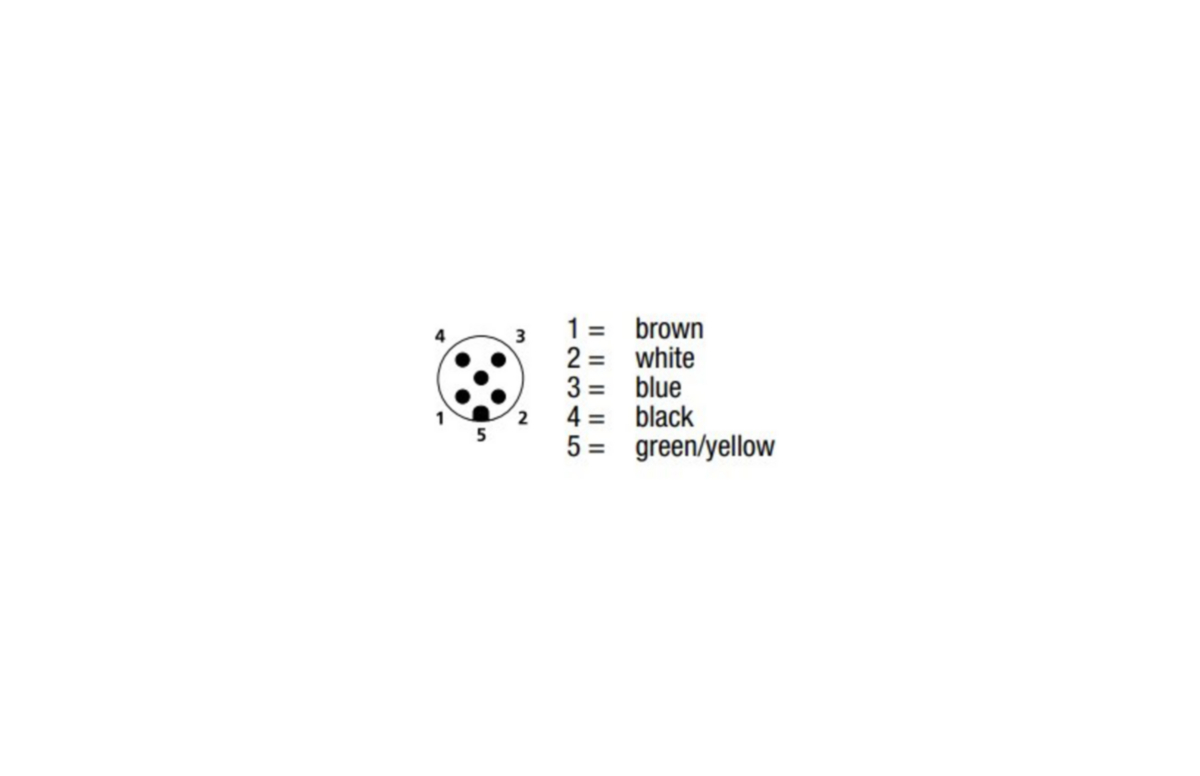

| Number of Pins: | 5 |
| Coding, Side 1: | A |
| Rated Impulse Voltage: | 2.5 kV |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | -40° C - +90° C |
| Design Standard: | IEC 61076-2-101 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Copper-Tin (CuSn) |
| Side 1 Contact Plating: | Copper over Gold (Cu/Au) |
| Contact Bearer Material: | Thermoplastic Polyurethane (TPU) |
| Contact Bearer Color: | Yellow |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color: | Yellow |
| Flammability Class (Molded Body): | UL 94 HB |
| Attachment Material: | Brass (Cu/Zn) |
| Attachment Plating: | Nickel-plated (Ni) |
| O-Ring Material: | FKM, green |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number: | 794 |
| Conductor Size: | 18 AWG |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 5 M |
| Conductor Material: | Cu |
| Cable Jacket Material: | Thermoplastic Elastomer (TPE) |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | Ø 7.70 mm [0.304”] |
| Insulated Wire Diameter: | Ø 2.03 mm [0.080”] |
| Ambient Temperature (Fixed Installation): | - 35° C - + 105° C |
| Ambient Temperature (Flex Installation): | + 5° C - + 105° C |
| Flammability Class (Cable Jacket): | CSA FT-4 |
| Cable Characteristics: | Oil Resistant, C-Track rated |
| UL-File: | E104696 |
| UL: | UL 2238; cURus |
| RoHS Compliant: | Yes |
| Update and Revision: | Revision Number: 0.33 Revision Date: 12-07-2025 |
| Item # | Item Description |
|---|---|
| 600005651 | RST 5-794/10M |
| 600005652 | RST 5-794/2M |
| 600005653 | RST 5-794/5M |
| 600006531 | RST 5-794/15M |
