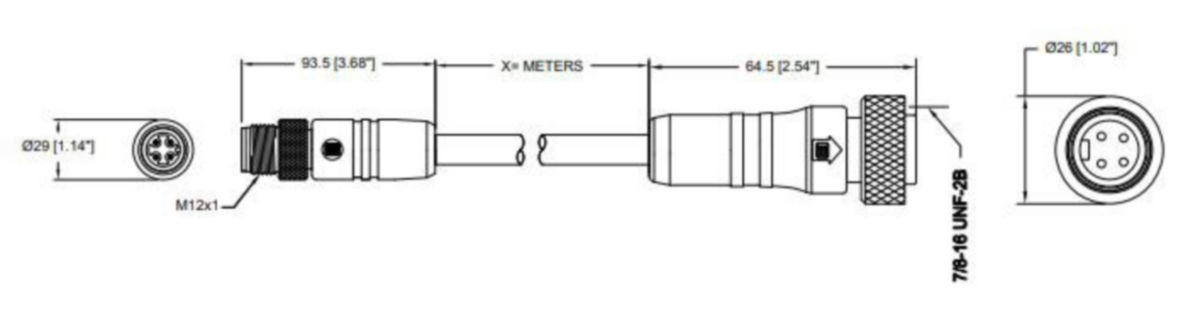

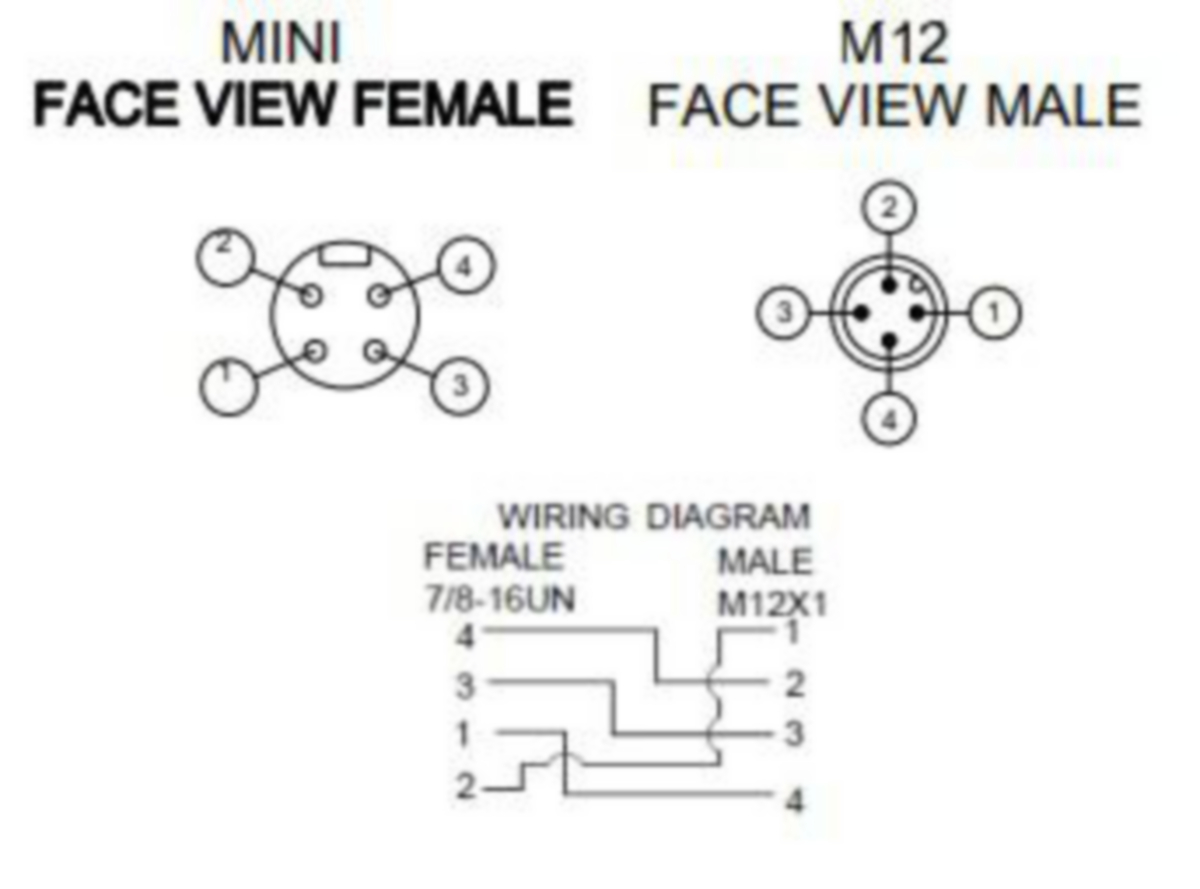

(4)Power Double-Ended Cordset: Male straight A-coded yellow 4-pin M12 Standard connector to female straight A-coded yellow 4-pin 7/8" connector, 250 V, 4 A; TPE yellow cable, 4-wires, 18 AWG (0.82 mm²)
| Product Family: | Sensor / Actuator Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding: | Unshielded |
| Rated Voltage: | 250 V |
| Rated Voltage (UL): | 250 V AC |
| Rated Impulse Voltage: | 2.5 kV |
| Operating Voltage: | 230 V AC/DC |
| Rated Current*: | 4 A |
| Rated Current (UL)*: | 4 A |
| Product Sub Family: | M12 Standard |
| Type of Contact / Gender: | Male |
| Connector Design: | Straight |
| Attachment Type: | Coupling Screw |
| Number of Pins: | 4 |
| Coding: | A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | -40°C to +90°C |
| Operating Temperature (UL): | max. + 50 °C |
| Protection Degree / IP Rating**: | IP67 |
| Design Standard: | IEC 61076-2-101 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | CuSn |
| Contact Plating: | Cu/Au |
| Contact Bearer Material: | Thermoplastic Polyurethane (TPU) |
| Contact Bearer Color: | Yellow |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color: | Yellow |
| Flammability Class (Molded Body): | UL 94 HB |
| Attachment Material: | CuZn |
| Attachment Plating: | Nickel-plated |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number: | 637 |
| Conductor Size: | 18 AWG |
| Number of Wires: | 4 |
| Cable Jacket Material: | Thermoplastic Elastomer (TPE) |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | .280" (7.1 mm) |
| Wire Insulation Material: | PP |
| Ambient Temperature (Fixed Installation): | -50°C to +105°C |
| UL Cable Type: | PLTC |
| Flammability Class (Cable Jacket): | FT-4 |
| Product Sub Family, Side 2: | 7/8" |
| Type of Contact / Gender, Side 2: | Female |
| Connector Design, Side 2: | Straight |
| Attachment Type, Side 2: | Coupling nut with internal threads |
| Number of Pins, Side 2: | 4 |
| Ambient Temperature (Operation), Side 2*: | -40°C to +90°C |
| Protection Degree / IP Rating, Side 2**: | IP 67 |
| Contact Base Material, Side 2: | CuSn |
| Contact Plating, Side 2: | Cu/Au |
| Contact Bearer Material, Side 2: | Thermoplastic Polyurethane (TPU) |
| Contact Bearer Color, Side 2: | Yellow |
| Molded Body Material, Side 2: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color, Side 2: | Yellow |
| O-Ring Material, Side 2: | FKM |
| UL: | UL 2238 Recognized |
| RoHS Compliant: | Yes |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500004841 | RST 4-RK 40-637/1M P-13452 | 1 m |
