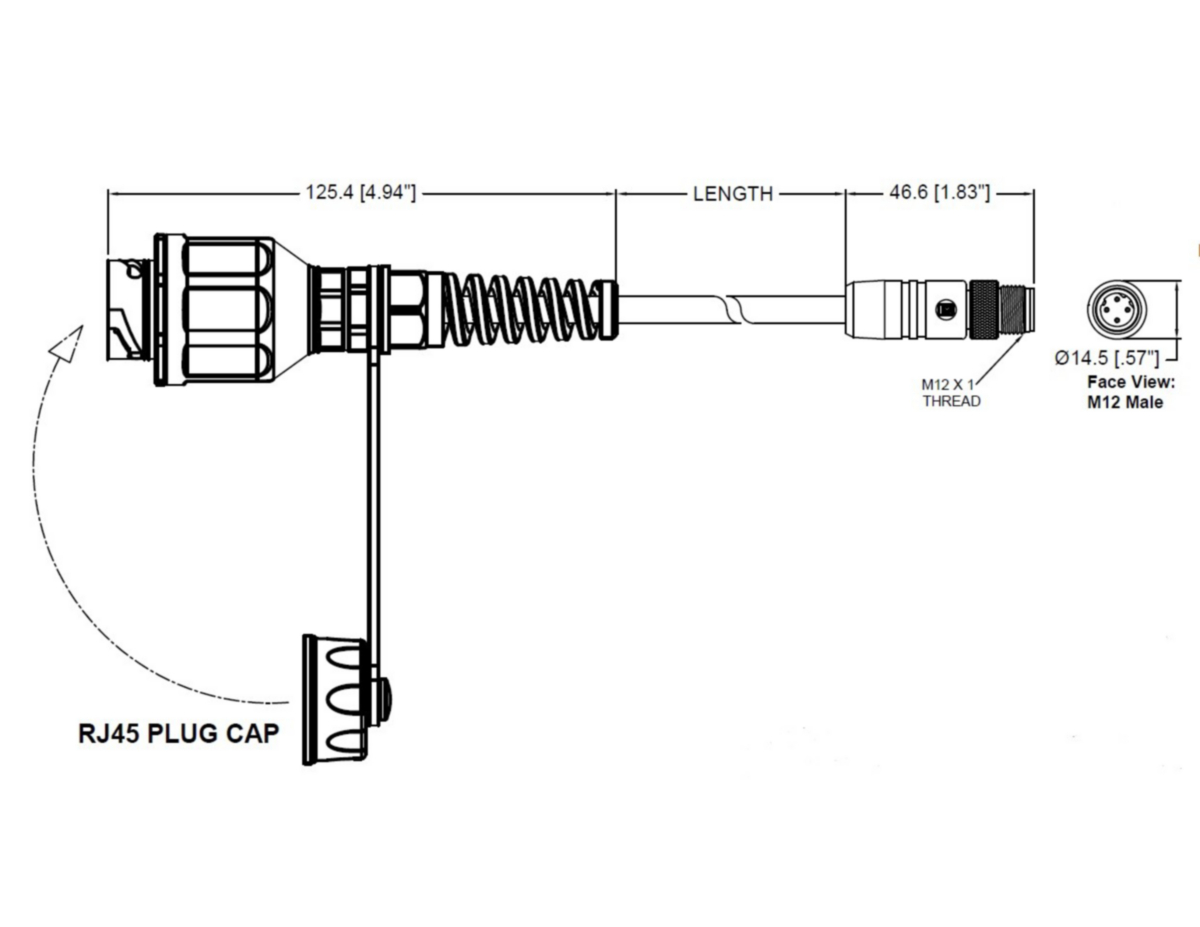

Cable assembly M12, 4-Pin D-Code, Male Straight / Female RJ45 with Cover, IP67, 2 pair, Unshielded, Cat5e, TPE, 0.5 M(1.64 ft), 24 AWG
| Product Family: | Data Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Voltage Rating: | 30 V AC |
| Data Transmission Type: | Fast Ethernet Cat5e |
| Data Transmission Rate: | 100 Mbit/s |
| Side 1 Product Sub Family: | M12 Standard |
| Side 1 Type of Contact/Gender: | Male |
| Connector Design: | Straight |
| Attachment Type: | Coupling Nut |

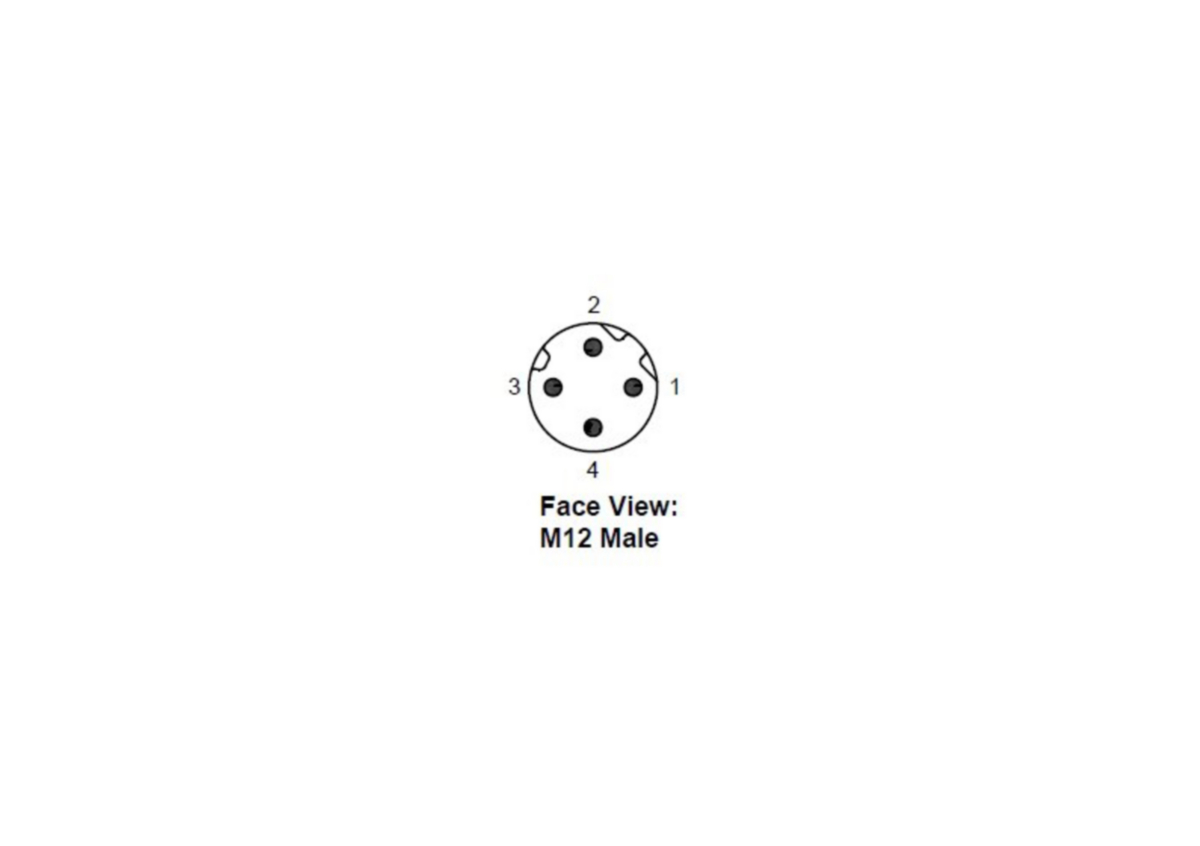

| Number of Pins: | 4 |
| Coding, Side 1: | D |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | - 40 °C to 70 °C |
| Design Standard: | IEC 61076-2-101 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Brass |
| Side 1 Contact Plating: | Au over Ni |
| Molded Body Material: | PUR |
| Molded Body Color: | Black |
| Housing Material: | Clear Polycarbonate |
| Attachment Material: | Brass |
| Attachment Plating: | Nickel-plated |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number: | 806 |
| Conductor Size: | 24 AWG |
| Number of Wires: | 4 (2 twisted pairs) |
| Minimal Bending Radius (Fixed Inst): | .250" |
| Cycles (Bending): | ˃ 2 M |
| Conductor Material: | Cu |
| Cable Jacket Material: | Thermoplastic Elastomer (TPE) |
| Cable Jacket Color: | Teal |
| Cable Diameter D: | .275" |
| Wire Insulation Material: | PO |
| Insulated Wire Diameter: | .037" |
| Ambient Temperature (Fixed Installation): | -50°C + 75°C |
| UL Cable Type: | Cat 5e |
| Flammability Class (Cable Jacket): | UL: CMR / CSA: CMG |

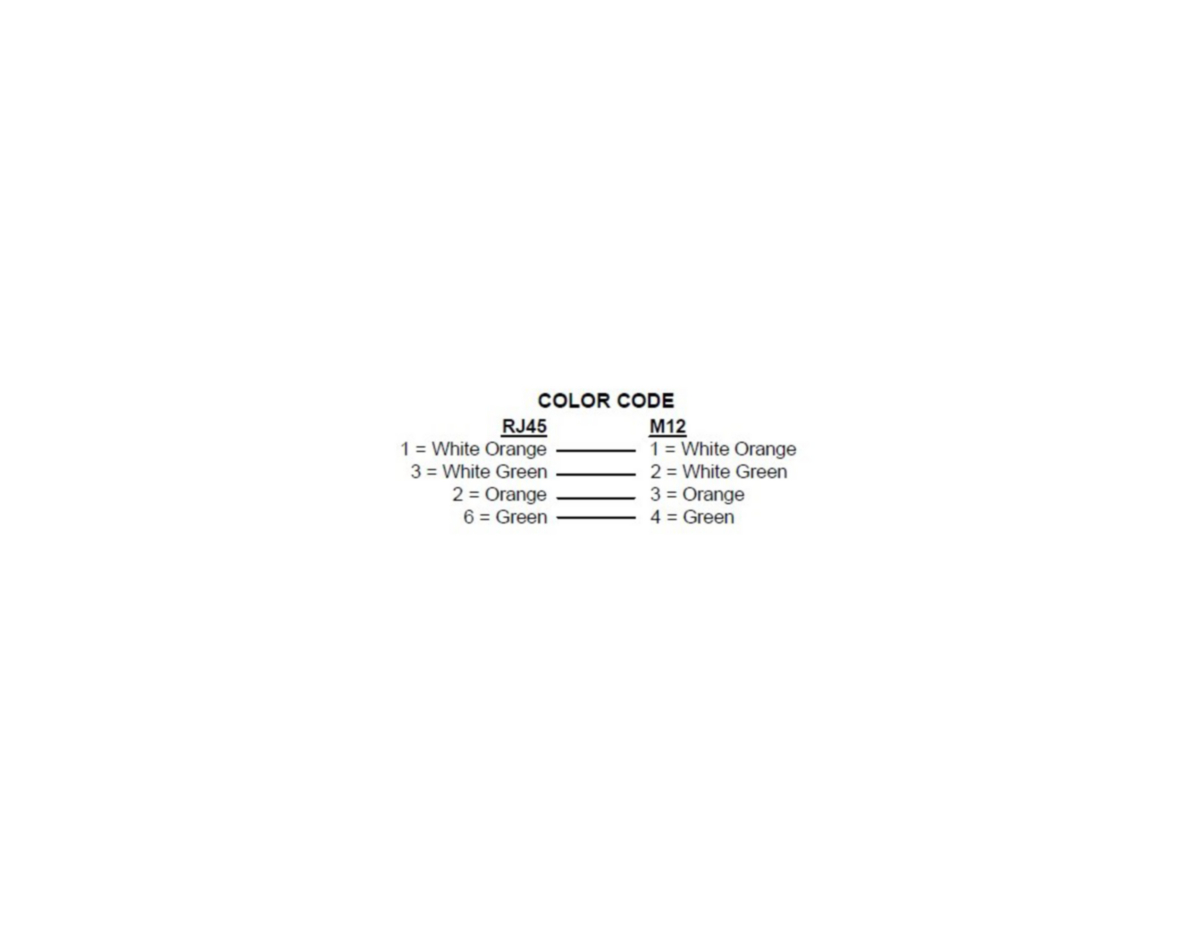

| Core Colors: | White / Orange, White / Green, Orange, Green |
| Side 2 Type of Contact/Gender: | Female |
| Connector Design, Side 2: | Straight |

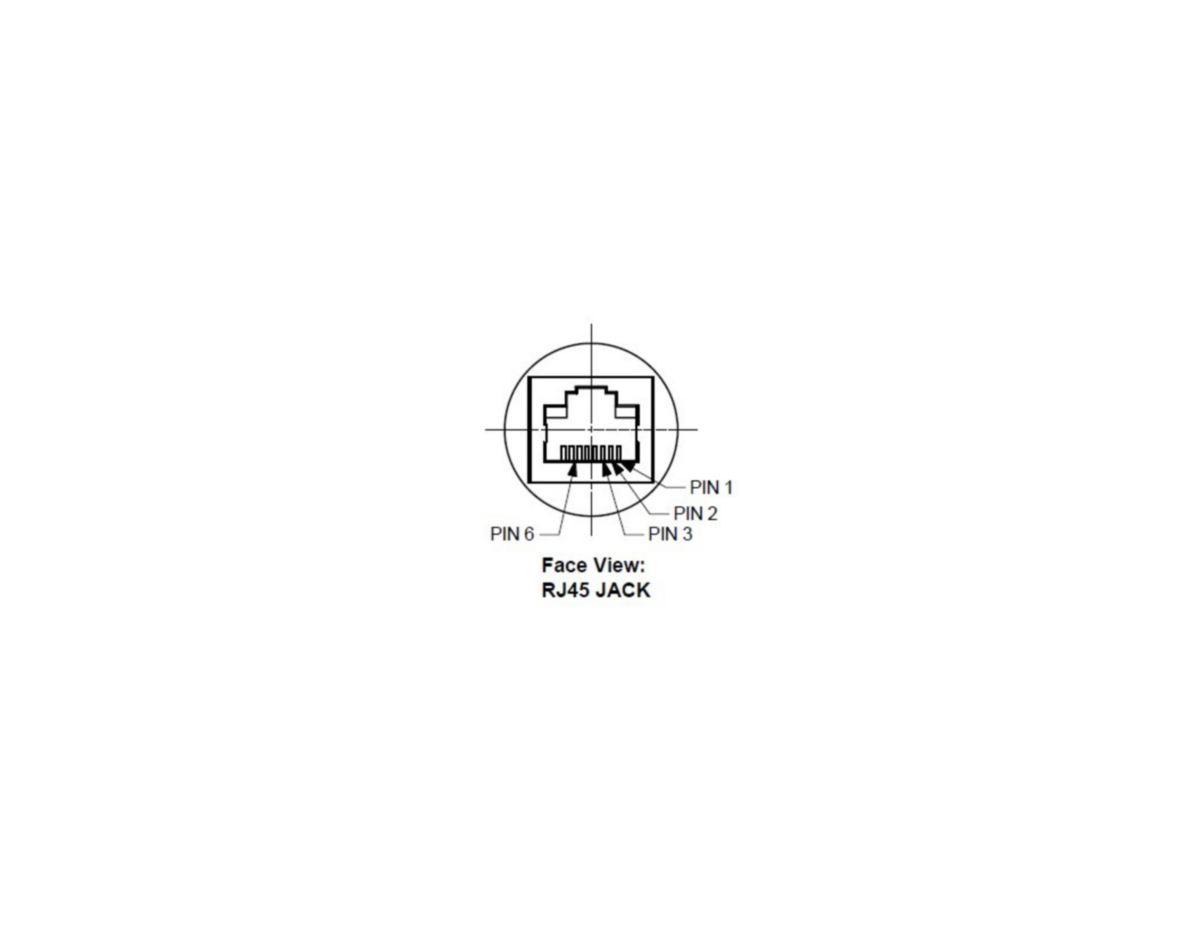

| Number of Pins, Side 2: | 4 |
| Ambient Temperature (Operation), Side 2*: | - 40 °C to 70 °C |
| Protection Degree / IP Rating, Side 2**: | IP20 |
| Contact Base Material, Side 2: | Phospher Bronze |
| Contact Plating, Side 2: | Au over Ni |
| Housing Material, Side 2: | Clear Polycarbonate |
| Attachment Plating, Side 2: | Gold plating in contact area |
| Update and Revision: | Revision Number: 0.6 Revision Date: 10-27-2025 |
