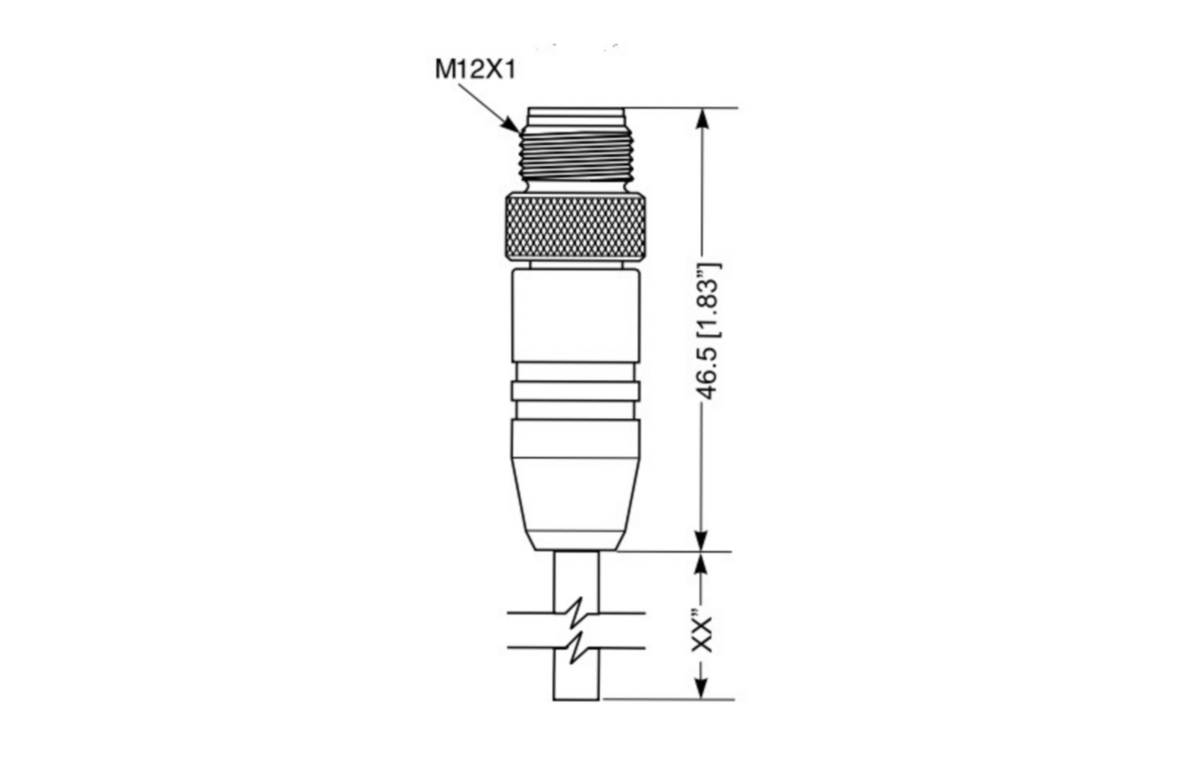

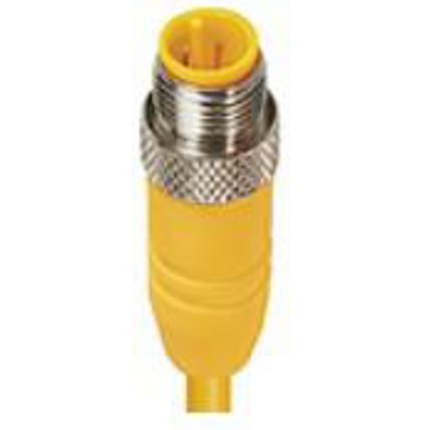

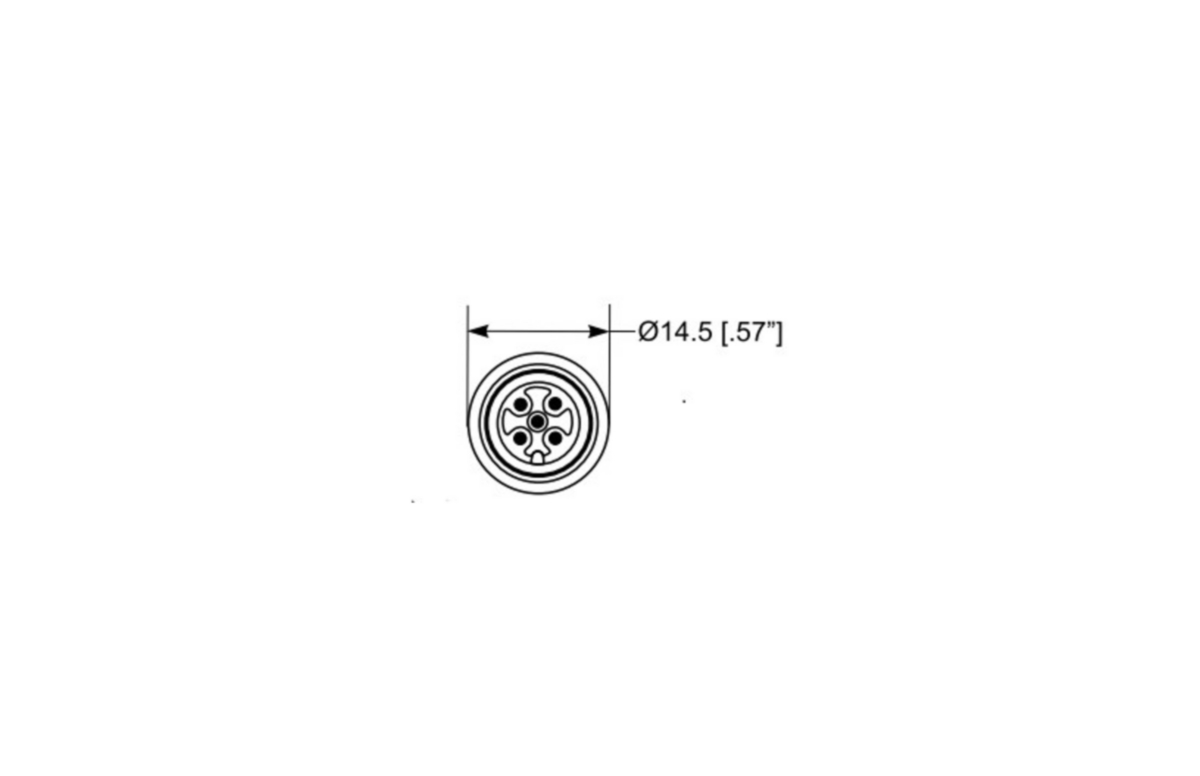

(4)RST 4-643 - M12 - Single Ended Male 0° | #Contacts: 4 | 250 V | Cable TPE YE, 22 AWG, IEC | cURus
| Brand: | Belden |
| Connector Type: | Cordset, single ended |
| Connector Design: | Straight (0°) Body |

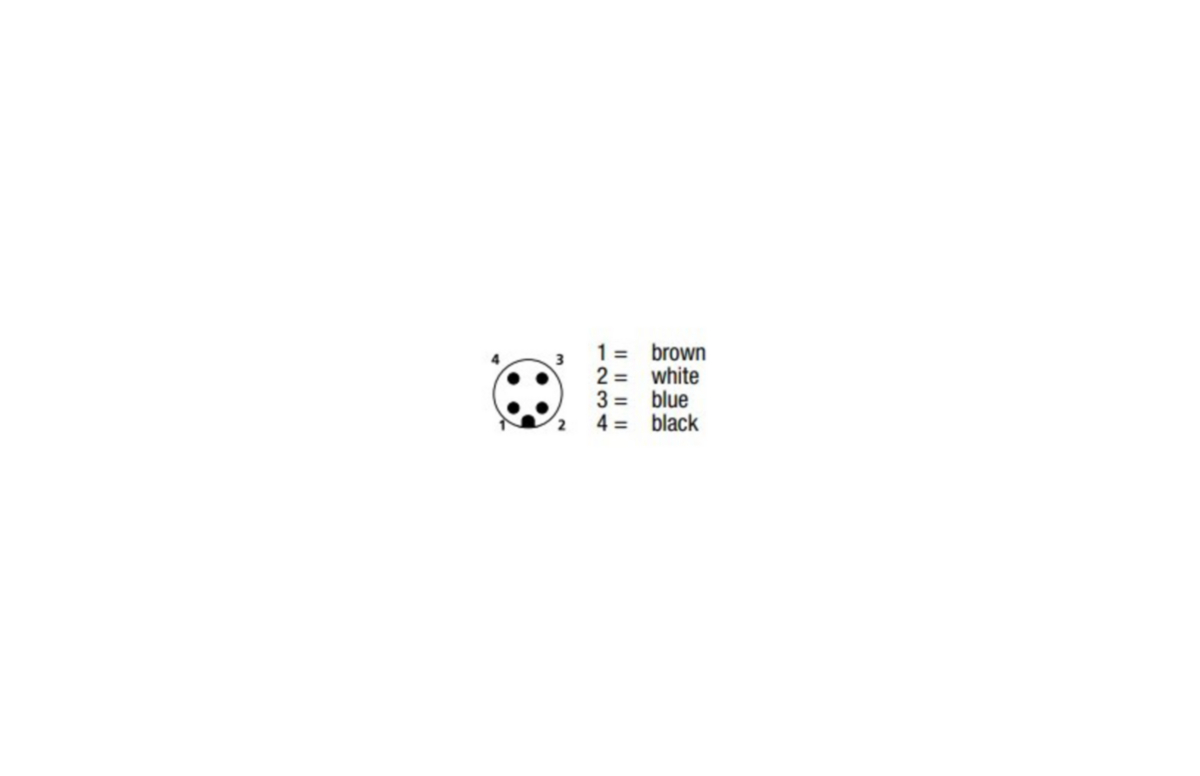

| Number of Pins: | 4 |
| Coding, Side 1: | A |
| Shielding Type: | Unshielded |
| Rated Impulse Voltage: | 2.5 kV |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | -40° C - +90° C |
| Protection Degree / IP Rating**: | IP67 |
| Design Standard: | IEC 61076-2-101 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Copper-Tin (CuSn) |
| Side 1 Contact Plating: | Copper over Gold (Cu/Au) |
| Contact Bearer Material: | Thermoplastic Polyurethane (TPU) |
| Contact Bearer Color: | Yellow |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | Polyurethane (PUR) |
| Molded Body Color: | Yellow |
| Flammability Class (Molded Body): | UL 94 HB |
| Attachment Material: | Brass (Cu/Zn) |
| Attachment Plating: | Nickel-plated (Ni) |
| O-Ring Material: | FKM or Viton |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number: | 643 |
| Conductor Size: | 22 AWG |
| Number of Wires: | 4 |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 1 M |
| Conductor Material: | Cu |
| Cable Jacket Material: | Thermoplastic Elastomer (TPE)/ PLTC |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | Ø 5.10 mm (.201”) |
| Wire Insulation Material: | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter: | Ø 1.83 mm [0.072”] |
| Ambient Temperature (Fixed Installation): | - 10° C - + 105° C |
| Ambient Temperature (Flex Installation): | - 25° C - + 105° C |
| UL Cable Type: | PLTC |
| Flammability Class (Cable Jacket): | Jacket FT-4 |
| Cable Characteristics: | Oil Resistant, C-Track rated |
| UL-File: | E104696 |
| UL: | UL 2238; cURus |
| RoHS Compliant: | Yes |
| Update and Revision: | Revision Number: 0.31 Revision Date: 12-07-2025 |
| Item # | Item Description |
|---|---|
| 600005549 | RST 4-643/10M |
| 600005646 | RST 4-643/3M |
| 600006004 | RST 4-643/2M |
| 600006026 | RST 4-643/5M |
