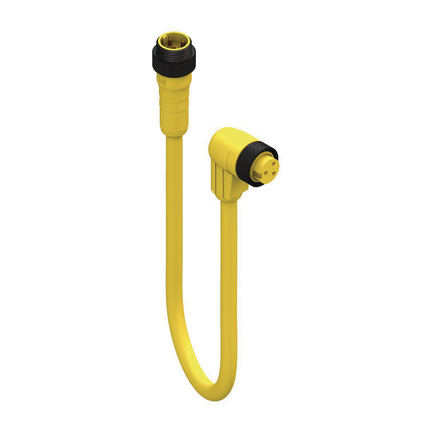

(109)RSRKW 30-838 - 7/8" Power Double-Ended Cordset: Male straight to female angled, 3-pin, yellow body, 600 V (UL), 10 A (UL); TPE yellow cable, 16 AWG
| Product Family: | Power Connector |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding: | Unshielded |
| Rated Voltage: | 600 V |
| Rated Voltage (UL): | 600 V |
| Rated Current*: | 10 A |
| Rated Current (UL)*: | 10 A |
| Product Sub Family: | 7/8" |
| Type of Contact / Gender: | Male |
| Connector Design: | straight |
| Attachment Type: | Coupling nut with external threads |
| Number of Pins: | 3 |
| Coding: | A |
| Ambient Temperature (Operation)*: | - 30 °C - + 90 °C |
| Protection Degree / IP Rating**: | IP65, IP67, NEMA 6P |
| Contact Base Material: | CuZn |
| Contact Plating: | Au over Ag |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | Yellow |
| Molded Body Material: | TPU |
| Molded Body Color: | Yellow |
| Attachment Material: | Al |
| Cable Number: | 838 |
| Conductor Size: | 16 AWG (65/34) |
| Number of Wires: | 3 |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Conductor material: | Stranded, BC |
| Cable Jacket Material: | TPE |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | Ø 8 mm |
| Wire Insulation Material: | PVC-Nylon |
| Insulated Wire Diameter: | Ø 2.5 mm |
| Ambient Temperature (Fixed Installation): | -30 °C to +90°C |
| UL Cable Type: | TC-ER (90°C Dry / 75°C Wet) 600 V |
| Flammability Class (Cable Jacket): | FT4 / IEEC 1202 |
| Cable Characteristics: | Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex |
| Product Sub Family, Side 2: | 7/8" |
| Type of Contact / Gender, Side 2: | Female |
| Connector Design, Side 2: | Angled (90°) |
| Attachment Type, Side 2: | Coupling Nut |
| Number of Pins, Side 2: | 3 |
| Coding, Side 2: | A |
| Ambient Temperature (Operation), Side 2*: | -30°C to +90°C |
| Operating Temperature (UL), Side 2: | - 30 °C - + 90 °C |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67, NEMA 6P |
| Contact Base Material, Side 2: | CuZn |
| Contact Plating, Side 2: | Au/Ag |
| Contact Bearer Material, Side 2: | TPU |
| Contact Bearer Color, Side 2: | Yellow |
| Molded Body Material, Side 2: | TPU |
| Molded Body Color, Side 2: | Yellow |
| Attachment Material, Side 2: | Al |
| Attachment Plating, Side 2: | anodized black |
| Note, Side 2: | Do not connect or disconnect under load |
| UL-File: | E104696 |
| UL: | UL recognized |
| RoHS Compliant: | Yes |
| Oil Resistance: | Oil Res II |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating: | Notice derating |
| Update and Revision: | Revision Number: 0.86 Revision Date: 05-04-2023 |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500004143 | RSRKW 30-838/1M | 1 m |
| 500004144 | RSRKW 30-838/2M | 2 m |
| 500004145 | RSRKW 30-838/3M | 3 m |
| 500004146 | RSRKW 30-838/5M | 5 m |
| 500004147 | RSRKW 30-838/10M | 10 m |
| 500004148 | RSRKW 30-838/15M | 15 m |
| 500004149 | RSRKW 30-838/20M | 20 m |
| 500004150 | RSRKW 30-838/25M | 25 m |
| 500004151 | RSRKW 30-838/30M | 30 m |
