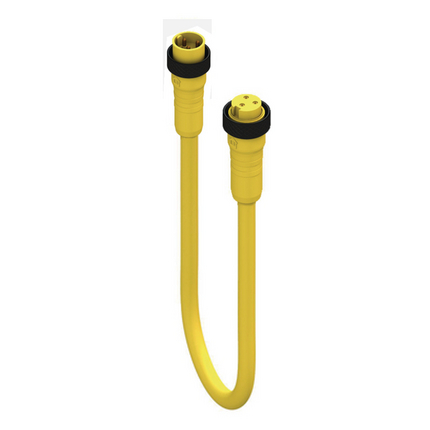

(4)Double-Ended Cordset | 7/8"- Male Straight | #Contacts: 3 | 7/8"- Female Straight | #Contacts: 3 | 300 V / 8 A | Cable: PVC Yellow; 3x18 AWG; AUTO | UL 2238; cURus
| Pin 1 | Pin 2 | Pin 3 |
|---|---|---|
| green | red-black | red-white |
| Pin 1 | Pin 2 | Pin 3 |
|---|---|---|
| green | red-black | red-white |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding: | Unshielded |
| Rated Voltage: | 300 V |
| Rated Current*: | 8 A |
| Product Sub Family: | 7/8" (2, 3, 4, 5, 6 contacts) |
| Type of Contact / Gender: | Pin Contact / Male |
| Connector Design: | 7/8" | Male | 3 Pole | 0° |
| Attachment Type: | Female Thread (round coupling nut) |
| Number of Pins: | 3 |
| Coding: | A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | - 40 °C to + 90°C |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Brass (CuZn) |
| Contact Plating: | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material: | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color: | Yellow |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | Thermoplastic polyurethane (TPU) |
| Molded Body Color: | Yellow |
| Flammability Class (Molded Body): | UL 94 HB |
| Attachment Material: | Aluminum (Al) |
| Attachment Plating: | Anodized Black |
| Fastening Torque (Attachment): | 7/8'': 70 Ncm, hand-tight |
| Cable Number: | 688 |
| Conductor Size: | 18 AWG |
| Number of Wires: | 3 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 1 mio |
| Conductor material: | Cu |
| Cable Jacket Material: | Polyvinyl Chloride (PVC) |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | Ø 7.4 mm (.290") |
| Wire Insulation Material: | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter: | Ø 1.65 mm [0.065”] |
| Ambient Temperature (Fixed Installation): | - 40 °C to +105 °C |
| Ambient Temperature (Flex Installation): | - 15 °C to +105 °C |
| UL Cable Type: | UL: AWM 2661 / CSA: AWM I/II A/B |
| Flammability Class (Cable Jacket): | UL VW-1 / CSA FT-1 |
| Cable Characteristics: | Flexibility: Good | Abrasion Resistance: Good | Chemical Resistance: resists water, oil, acids, and alkalis| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact, tear, and flex) | Environmental Suitability: Indoor, excellent balance of performance, cost, and versatility |
| Product Sub Family, Side 2: | 7/8" (2, 3, 4, 5, 6 contacts) |
| Type of Contact / Gender, Side 2: | Socket Contact / Female |
| Connector Design, Side 2: | 7/8" | Female | 3 Pole | 0° |
| Attachment Type, Side 2: | Female Thread (round coupling nut) |
| Number of Pins, Side 2: | 3 |
| Coding, Side 2: | A |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Mating Cycles, Side 2: | ≤ 100 |
| Ambient Temperature (Operation), Side 2*: | - 40 °C to + 90°C |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2: | Brass (CuZn) |
| Contact Plating, Side 2: | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material, Side 2: | Thermoplastic polyurethane (TPU) |
| Contact Bearer Color, Side 2: | Yellow |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Molded Body Material, Side 2: | Thermoplastic polyurethane (TPU) |
| Molded Body Color, Side 2: | Yellow |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Attachment Material, Side 2: | Aluminum (Al) |
| Attachment Plating, Side 2: | Anodized Black |
| Fastening Torque (Attachment), Side 2: | 7/8'': 70 Ncm, hand-tight |
| Note, Side 2: | Do not connect / disconnect under load. |
| UL-File: | E315587 |
| UL: | UL 2238; cURus |
| RoHS Compliant: | Yes |
| Halogenfree: | No |
| Oil Resistance: | Yes |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note Derating: | * Notice derating |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500000270 | "RSRK 301-688/3F" | 3 ft |
| 500000271 | RSRK 301-688/6F | 6 ft |
| 500000269 | RSRK 301-688/12F | 12 ft |
| 500000937 | "RSRK 301-688/15F" | 15 ft |
| 500000938 | "RSRK 301-688/20F" | 20 ft |
| 500000939 | "RSRK 301-688/25F" | 25 ft |
| 500000940 | "RSRK 301-688/30F" | 30 ft |
