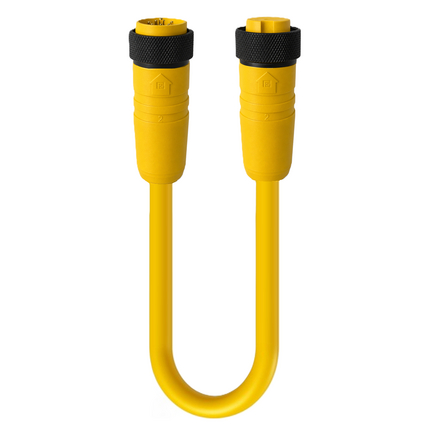

RSRK 1201M-776 - MINI C | Cordset | 1-1/8 Male Straight, 12-pin → 1-1/8 Female Straight, 12-socket | Yellow TPE; 18 AWG | 300 V / 5 A





MINI C | Double-Ended Cordset | 1-1/8 Male Straight, 12-pin → 1-1/8 Female Straight, 12-socket | Cable Yellow TPE; 18 AWG | 300 V / 5 A

Data Sheet
Share

Product Description

Product Family: Power Connector
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding Type: Unshielded
Voltage Rating: 300 V
Rated Voltage (UL): 300 V
Operating Voltage: 300 V AC/DC
Current Rating: 5 A
Rated Current (UL)*: Power 5 A | Signal 5 A

Technical Data Side 1

Side 1 Product Sub Family: MINI 1-1/8"
Side 1 Type of Contact/Gender: Pin Contact / Male

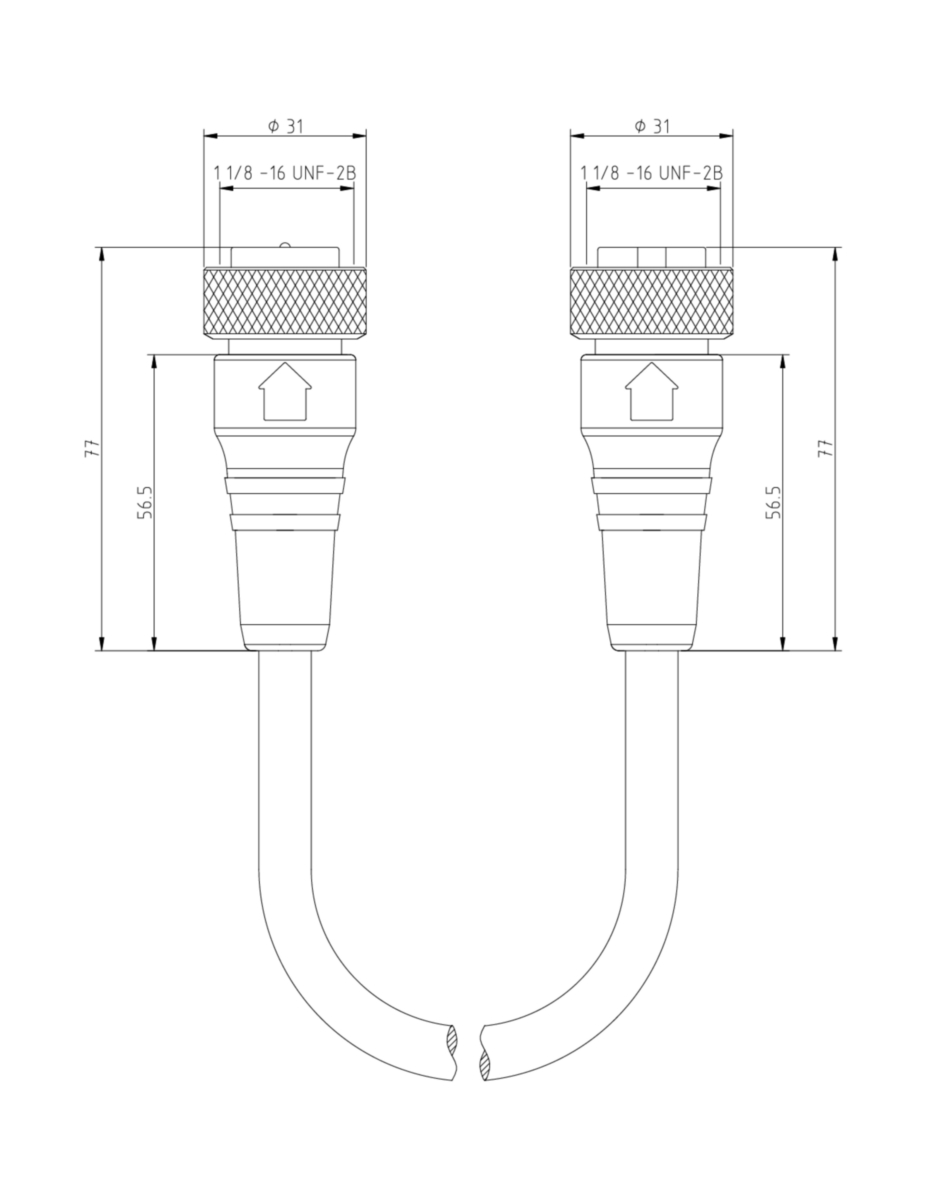

Connector Design: Molded | 1-1/8" Male | Straight
Attachment Type: Female Thread, Coupling Nut

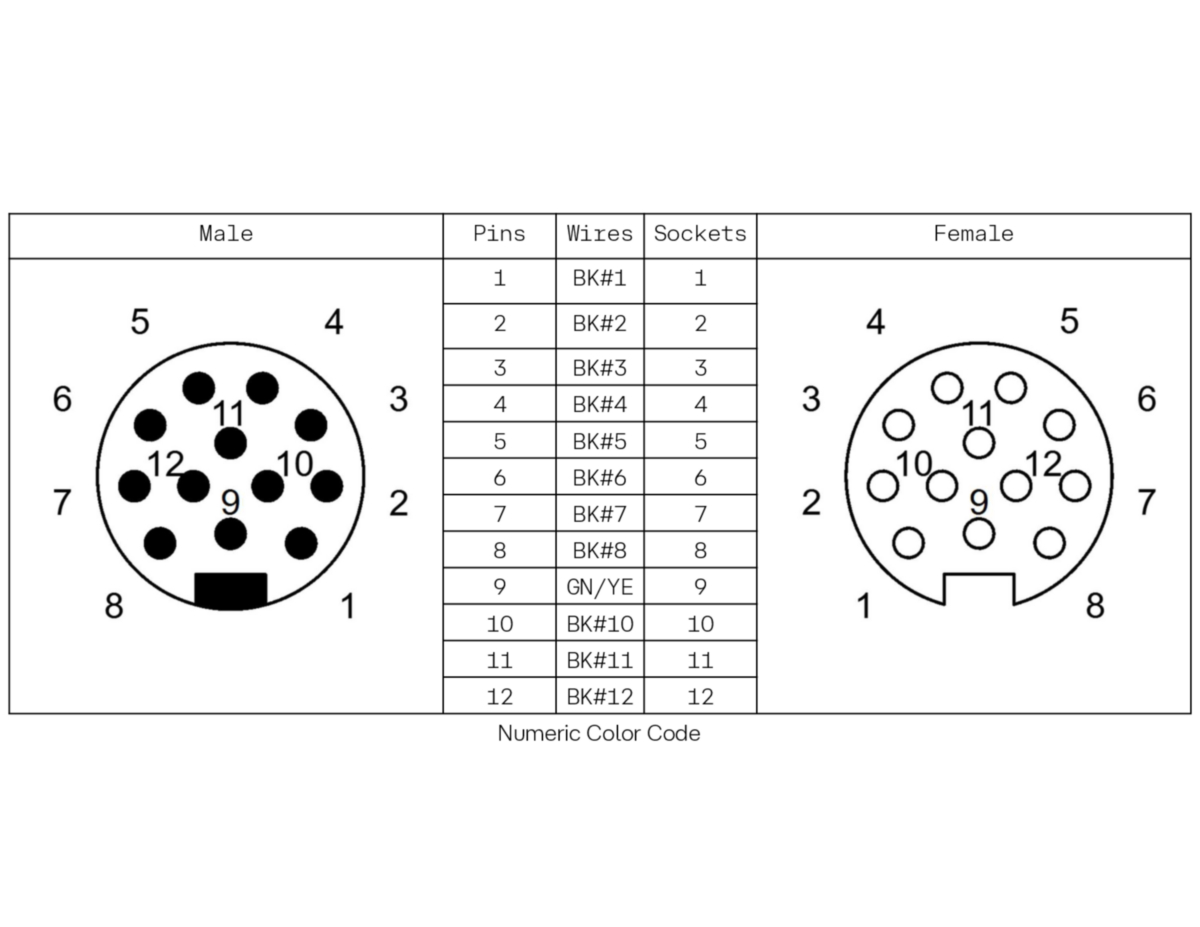

Number of Pins: 12 (11+PE)
Coding, Side 1: A
Mating Cycles: ≤ 100
Ambient Temperature (Operation)*: - 40 °C to + 90 °C
Protection Degree / IP Rating**: IP65, IP67
Contact Base Material: Copper Alloy (CuZn)
Side 1 Contact Plating: Copper-Silver-Gold-Alloy (Cu/Ag/Au)
Contact Bearer Material: Thermoplastic polyurethane (TPU)
Contact Bearer Color: Yellow
Flammability Class (Contact Bearer): UL 94 HB
Molded Body Material: Thermoplastic polyurethane (TPU)
Molded Body Color: Yellow
Flammability Class (Molded Body): UL 94 HB
Attachment Material: Aluminum (Al)
Attachment Plating: Anodized Black
Fastening Torque (Attachment): MINI: 70 Ncm, hand-tight
Note: 1. Do not connect or disconnect under load.

Cable Data

Cable Number: 776
Conductor Size: 18 AWG
Number of Wires: 12
Minimal Bending Radius (Fixed Inst): ˃ 5 x D
Minimal Bending Radius (Flexible Inst): ˃ 10 x D
Cycles (Bending): ˃ 5 mio
Conductor Material: Cu
Cable Jacket Material: Thermoplastic Elastomers (TPE)
Cable Jacket Color: Yellow
Cable Diameter D: Ø 11.10 mm | 0.438”
Wire Insulation Material: Polyvinyl chloride (PVC)
Insulated Wire Diameter: Ø 2.00 mm | 0.079"
Overall Shield (Cable): Unshielded
Ambient Temperature (Fixed Installation): - 40° C to + 90° C
Ambient Temperature (Flex Installation): - 40° C to + 90° C
Ambient Temperature (Fixed Installation short-term 100h): - 40° C to + 90° C
Ambient Temperature (Drag Chain Inst): - 40° C to + 90° C
UL Cable Type: PLTC or AWM Style 20626
Flammability Class (Cable Jacket): FT4

Technical Data Side 2

Side 2 Product Sub Family: MINI 1-1/8"
Side 2 Type of Contact/Gender: Socket Contact / Female
Connector Design, Side 2: Molded | 1-1/8" Female | Straight
Attachment Type, Side 2: Female Thread, Coupling Nut
Number of Pins, Side 2: 12 (11+PE)
Coding, Side 2: A
Mating Cycles, Side 2: ≤ 100
Ambient Temperature (Operation), Side 2*: - 40° C to + 90° C
Protection Degree / IP Rating, Side 2**: IP65, IP67
Contact Base Material, Side 2: Copper Alloy (CuZn)
Contact Plating, Side 2: Copper-Silver-Gold-Alloy (Cu/Ag/Au)
Contact Bearer Material, Side 2: Thermoplastic polyurethane (TPU)
Contact Bearer Color, Side 2: Yellow
Flammability Class (Contact Bearer), Side 2: UL 94 HB
Molded Body Material, Side 2: Thermoplastic polyurethane (TPU)
Molded Body Color, Side 2: Yellow
Flammability Class (Molded Body), Side 2: UL 94 HB
Attachment Material, Side 2: Aluminum (Al)
Attachment Plating, Side 2: Anodized Black
Fastening Torque (Attachment), Side 2: MINI: 70 Ncm, hand-tight
Note, Side 2: 1. Do not connect or disconnect under load.

Approvals

UL-File: E315587
UL: UL 2238; cURus

Safety & Environmental Compliance

RoHS Compliant: Yes

Resistances

Halogenfree: No
Oil Resistance: Yes

Notes

Protection Degree / IP Rating Note: IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating: * Notice derating
Variants
Item #Item DescriptionCable Length
500004021RSRK 1201M-776/1M1 m
500003255RSRK 1201M-776/2M2 m
500004022RSRK 1201M-776/3M3 m
540001290RSRK 1201M-776/4M4 m
500003256RSRK 1201M-776/5M5 m
500003257RSRK 1201M-776/10M10 m
540002590RSRK 1201M-776/12M12 m
540002091RSRK 1201M-776/15M15 m
500003258RSRK 1201M-776/20M20 m
540004478RSRK 1201M-776/35M35 m
540004598RSRK 1201M-776/60M60 m
No accessories are available for this product
