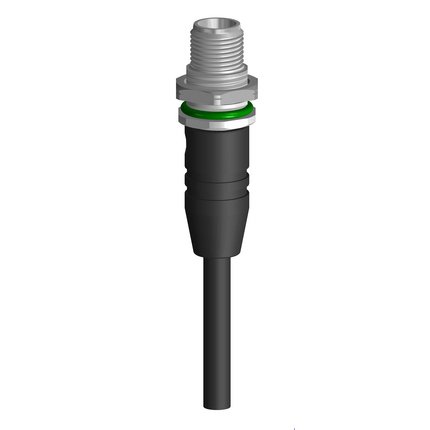

(4)Gigabit Ethernet Cat6A Data Receptacle Connector: Male, rear mount, M12 - mating side, cable - connecting side, 8-pin, X-coded, shielded, metallic housing, 50 V AC / 60 V DC, 0.5 A; PUR black cable, 8-wires, 4x2x0.14mm2

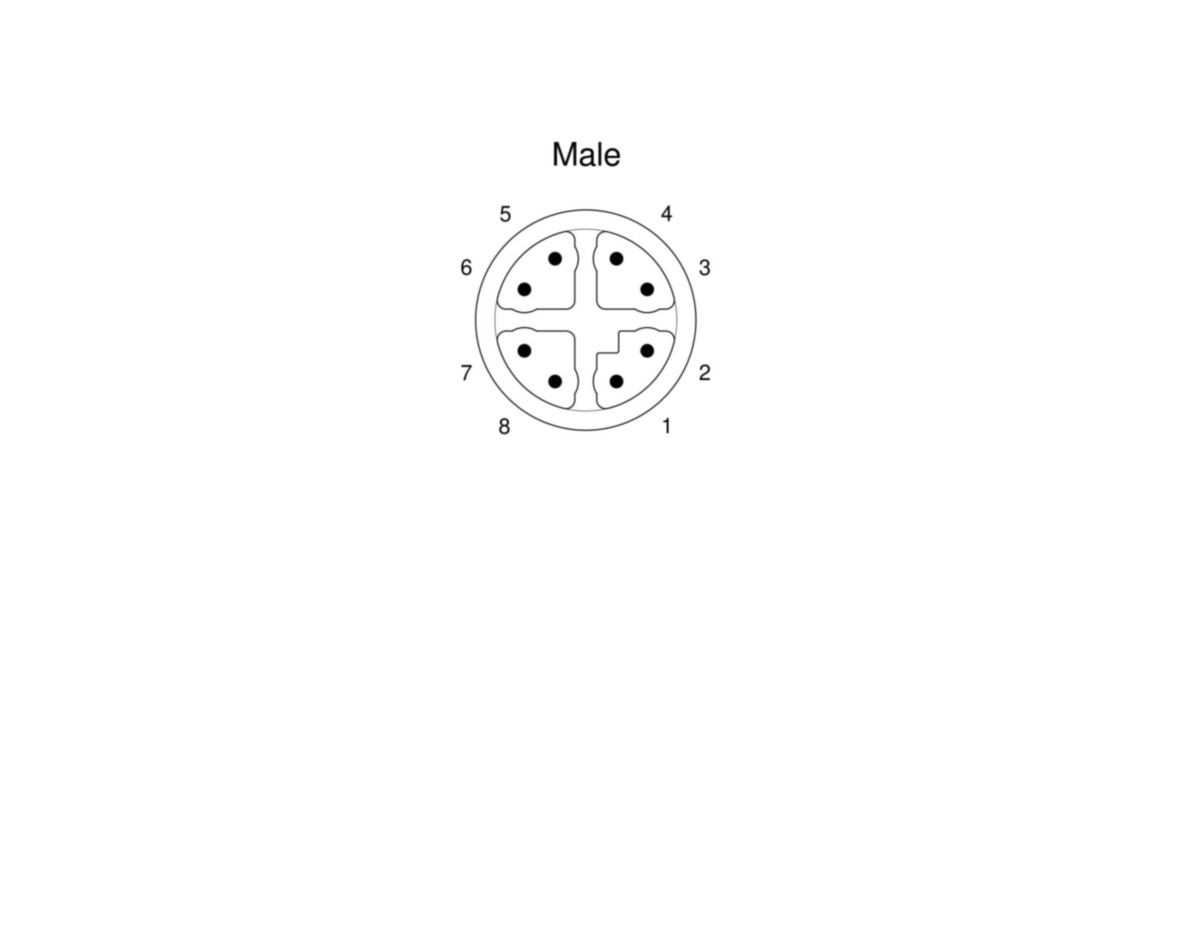

| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 |
|---|---|---|---|---|---|---|---|
| white (orange) | orange | white (green) | green | white (brown) | brown | white (blue) | blue |
| Product Family: | Data Connectors |
| Product Sub Family: | M12 Standard |
| Mating Side: | M12 |
| Connecting Side: | Cable |
| Brand: | Lumberg Automation |
| Connector Type: | Receptacle |
| Type of Contact / Gender: | Male |
| Connector Design: | Rear Mount |
| Number of Pins: | 8 |
| Coding: | X |
| Shielding: | Shielded |
| Attachment Type: | Screw-Locking |
| Rated Voltage: | 60 V |
| Rated Impulse Voltage: | 1.5 kV |
| Operating Voltage: | 50 V AC/60 V DC |
| Rated Current*: | 0.5 A |
| Rated Current (UL)*: | 0.5 A |
| Data Transmission Rate: | Gigabit Ethernet Cat6A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^ 8 Ohm |
| Mating Cycles: | ≤ 100 |
| Thread Size: | PG9 |
| Thread Material: | CuZn |
| Thread Plating: | Nickel-plated |
| Ambient Temperature (Operation)*: | - 25 °C - + 85 °C |
| Protection Degree / IP Rating**: | IP 67 |
| Design Standard: | IEC 61076-2-109 |
| Contact Plating: | Cu/Au |
| Molded Body Material: | PA |
| Molded Body Color: | Black |
| Housing Material: | CuZn |
| Housing Plating: | Nickel-plated |
| O-Ring Material: | FKM |
| Cable Number: | 478 |
| Conductor Size: | 4x2x0.14 mm² |
| Number of Wires: | 8 |
| Minimal Bending Radius (Fixed Inst): | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst): | ˃ 65 mm |
| Cycles (Bending): | ˃ 0.2 M |
| Conductor material: | Cu |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | black |
| Cable Diameter D: | ø 6.8 ± 0.3 mm |
| Wire Insulation Material: | PE |
| Insulated Wire Diameter: | ø 1.05 ± 0.05 mm |
| Overall Shield (Cable): | Cu-ETP1 tinned |
| Foil shield: | Al-PT Foil |
| Ambient Temperature (Fixed Installation): | - 40 °C - + 80 °C |
| Ambient Temperature (Flex Installation): | 0°C - + 50 °C |
| UL Cable Type: | AWM: 21327 |
| Core Colors: | Twisted pairs: white & blue, white & orange, white & green, white & brown |
| RoHS Compliant: | yes |
| Note Derating: | Notice derating |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |

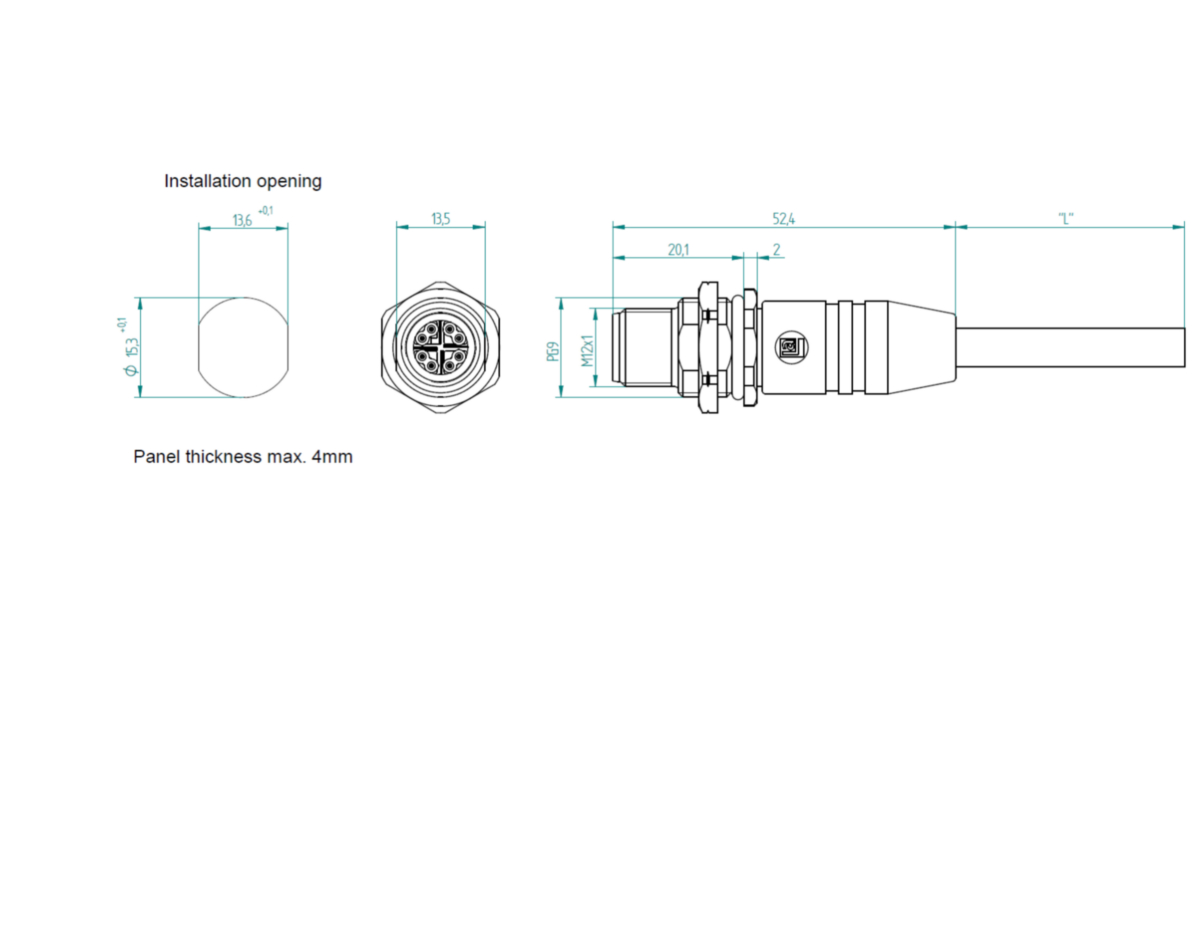

| Note: | The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-109. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 94781001 | RSHS 8X-478/1M CN | 1m |
