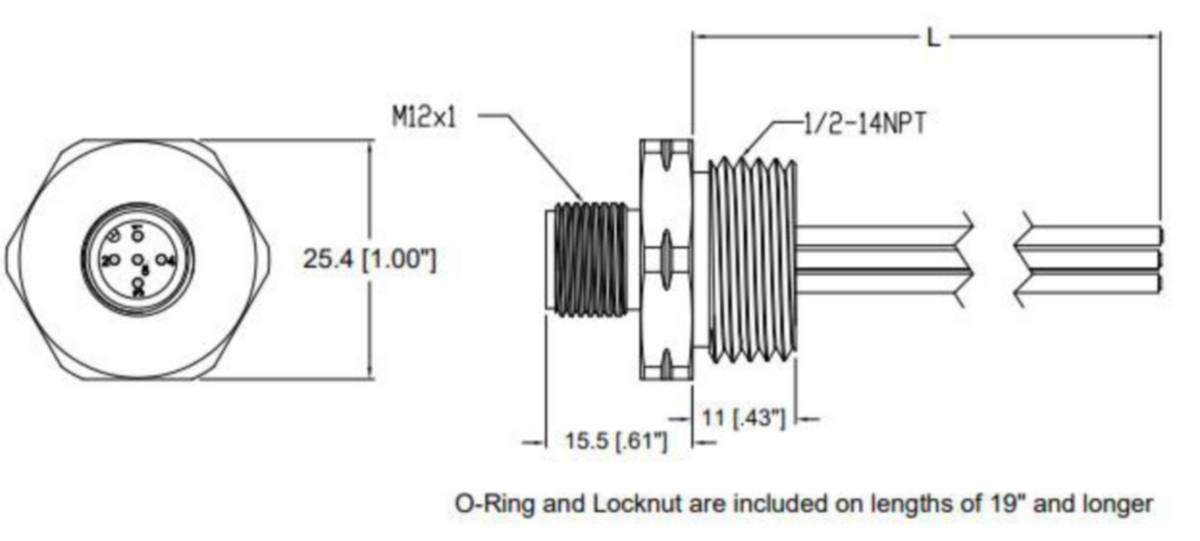

(4)M12 standard sensor/actuator receptacle connector, male 5-pin, front mounting, A-coding, 18 AWG, 5 stranded wires, panel mount thread 1/4" -NPT, 300 V AC/DC, 4 A
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 |
|---|---|---|---|---|
| brown | white | blue | black | gray |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M12 Standard |
| Mating Side: | M12 |
| Connecting Side: | Stranded Wires |
| Brand: | Lumberg Automation |
| Connector Type: | Receptacle |
| Type of Contact / Gender: | Male |
| Connector Design: | Front Mount |
| Number of Pins: | 5 |
| Coding: | A |
| Rated Voltage: | 300 V |
| Rated Voltage (UL): | 300 V |
| Operating Voltage: | 300 V |
| Rated Current*: | 4 A |
| Rated Current (UL)*: | 4 A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | -40°C(-40°F) / +105°C(+221°F) |
| Protection Degree / IP Rating**: | IP67 |
| Design Standard: | IEC 61076-2-101 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Copper alloy, gold over nickel plated |
| Contact Plating: | Au |
| Contact Bearer Material: | Polyamide |
| Contact Bearer Color: | Black |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Housing Material: | Anodized aluminum |
| Housing Color: | Silver |
| Attachment Material: | Steel |
| Attachment Plating: | Zinc |
| O-Ring Material: | NBR & FPM |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Conductor Size: | 18 AWG |
| Number of Wires: | 5 |
| Conductor material: | Cu |
| Wire Insulation Material: | PVC |
| Core Colors: | Brown, White, Blue, Black, Grey |
| UL-File: | UL1007/1569 |
| RoHS Compliant: | yes |
| Note Derating: | * Notice derating |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
