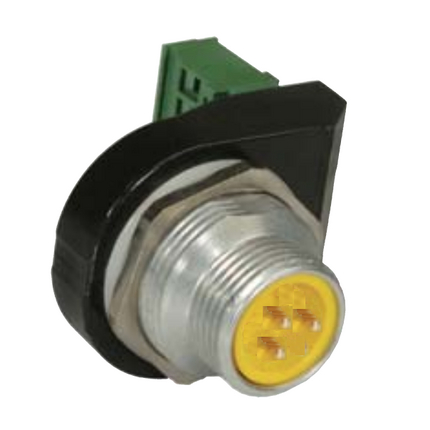

(109)7/8" Power Receptacle: Male, straight, 3-pin, front mount, PG21 Panel Hole to Terminal Black 6 Pin, 300 V, 8 A
| Product Family: | Power Connector |
| Product Sub Family: | 7/8" |
| Brand: | Lumberg Automation |
| Connector Type: | Receptacle |
| Type of Contact / Gender: | Male |

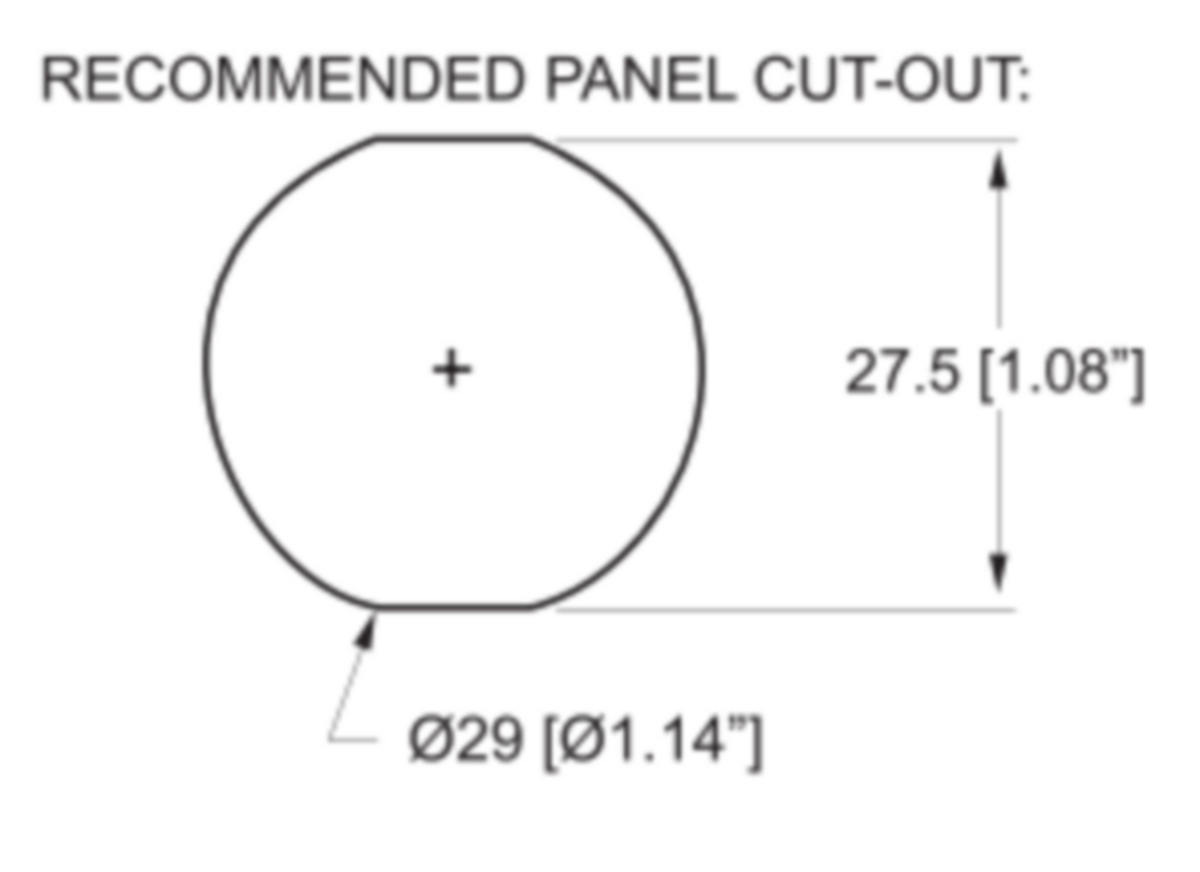

| Connector Design: | Front Mount, PG21 panel tap size |
| Number of Pins: | 3 |
| Coding: | A |
| Shielding: | Unshielded |
| Attachment Type: | Fixed, External Thread |
| Rated Voltage: | 300 V |
| Rated Voltage (UL): | 300 V |
| Rated Current*: | 8 A |
| Rated Current (UL)*: | 8 A |
| Ambient Temperature (Operation)*: | -25 °C to +90 °C |
| Contact Plating: | Au over Ag |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | YE |
| Housing Material: | Al, clear anodized |
| O-Ring Material: | TPU, WH |

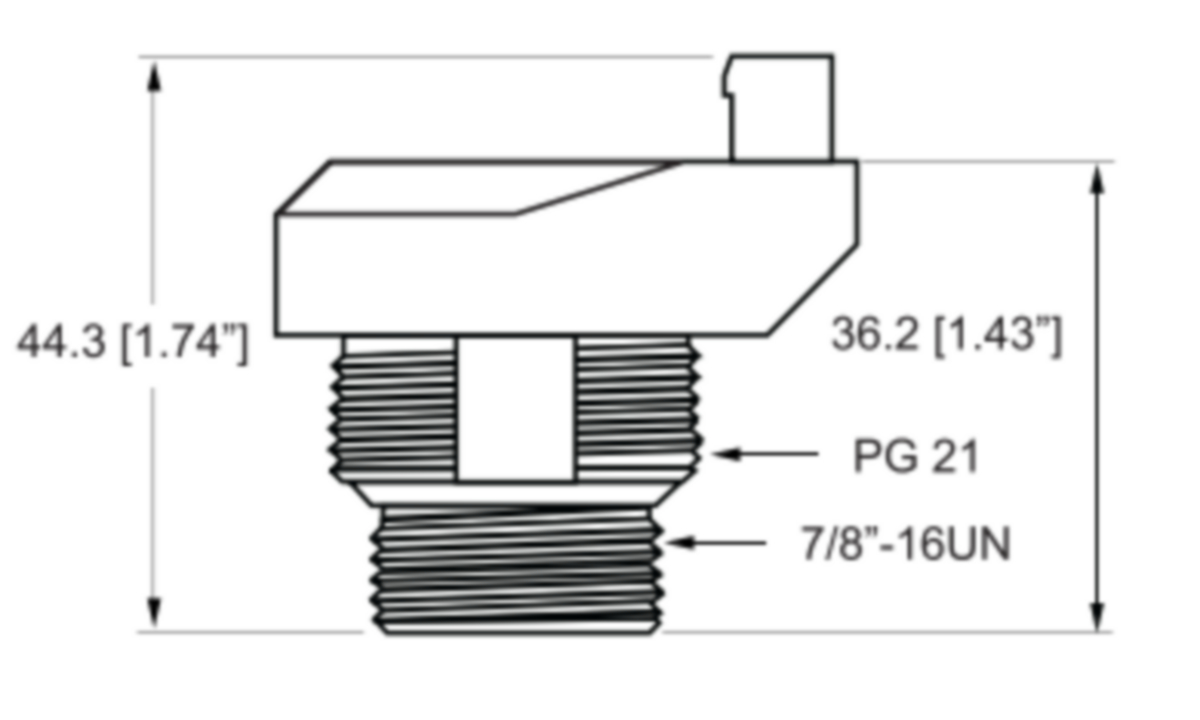

| Attachment Type, Side 2: | PG21, Zn, Zn Plated, Lock Nut |
| RoHS Compliant: | Yes |
| Note Derating: | Notice Derating |
| Protection Degree / IP Rating Note: | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |

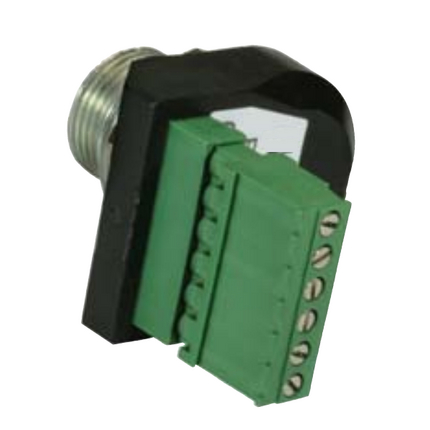

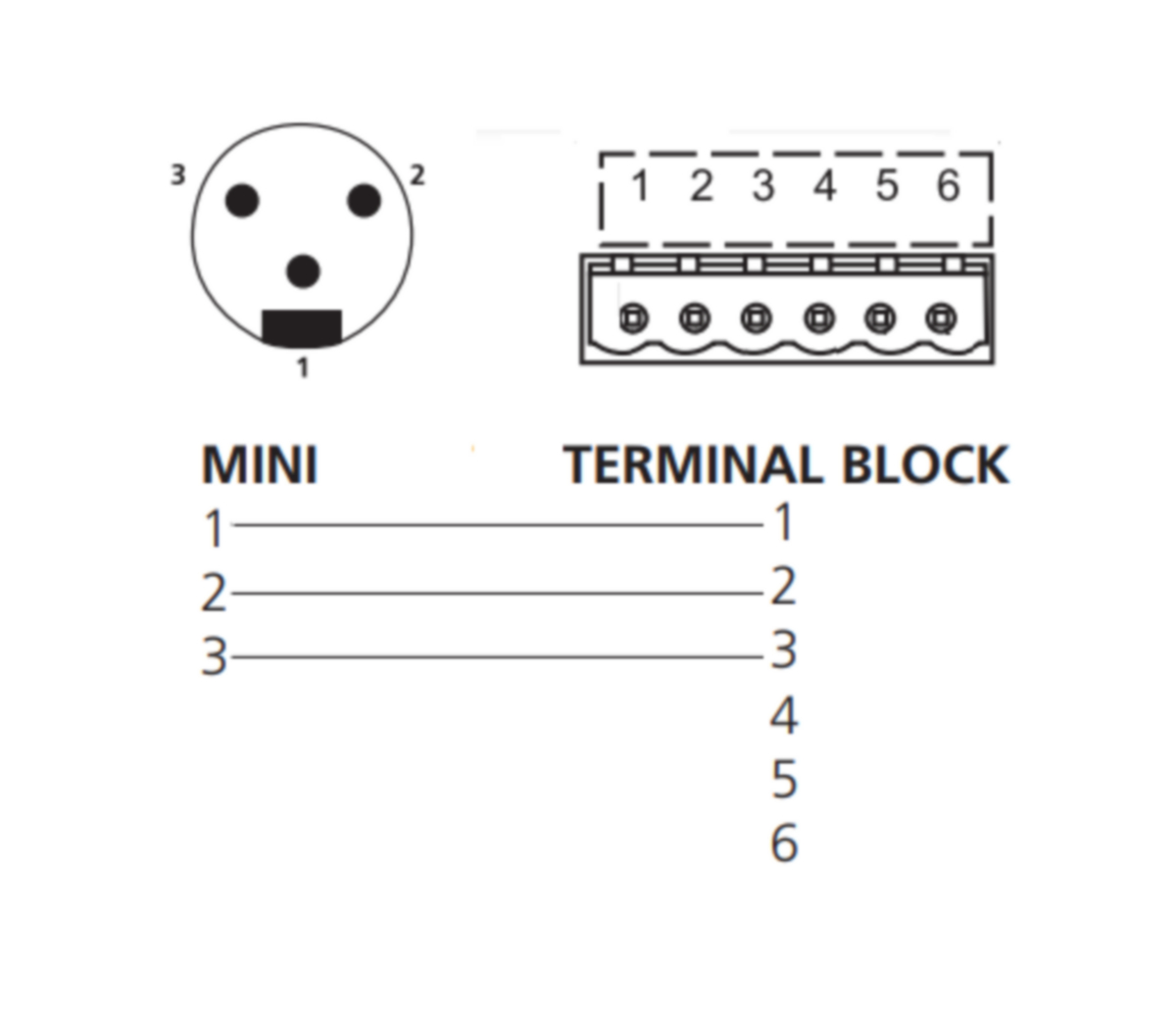

| Note: | Recommended Mating Terminal Block: MC 100-508-06 180° wire exit; Do not connect / disconnect under load |
| Item # | Item Description |
|---|---|
| 500002266 | RSF 30 TB |
