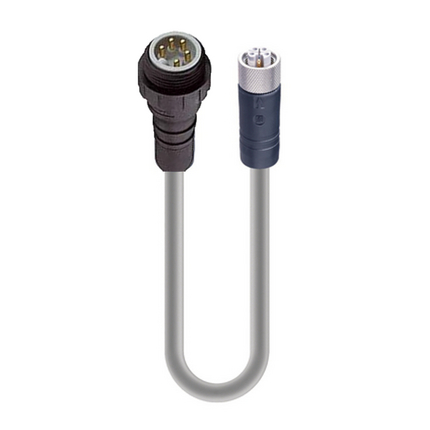

(4)7/8" to M12, Power Double-Ended Cordset: Male straight to female straight, 5-pin, Black body, 50 V AC/60 V DC, 9 A; PUR grey cable, 1.50 mm131
| Product Family: | Power Connector |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding: | Unshielded |
| Rated Voltage: | 63 V |
| Operating Voltage: | 50 V AC / 60 V DC |
| Rated Current*: | 9 A |
| Product Sub Family: | 7/8" |
| Type of Contact / Gender: | Male |
| Connector Design: | Straight |
| Attachment Type: | Coupling nut |

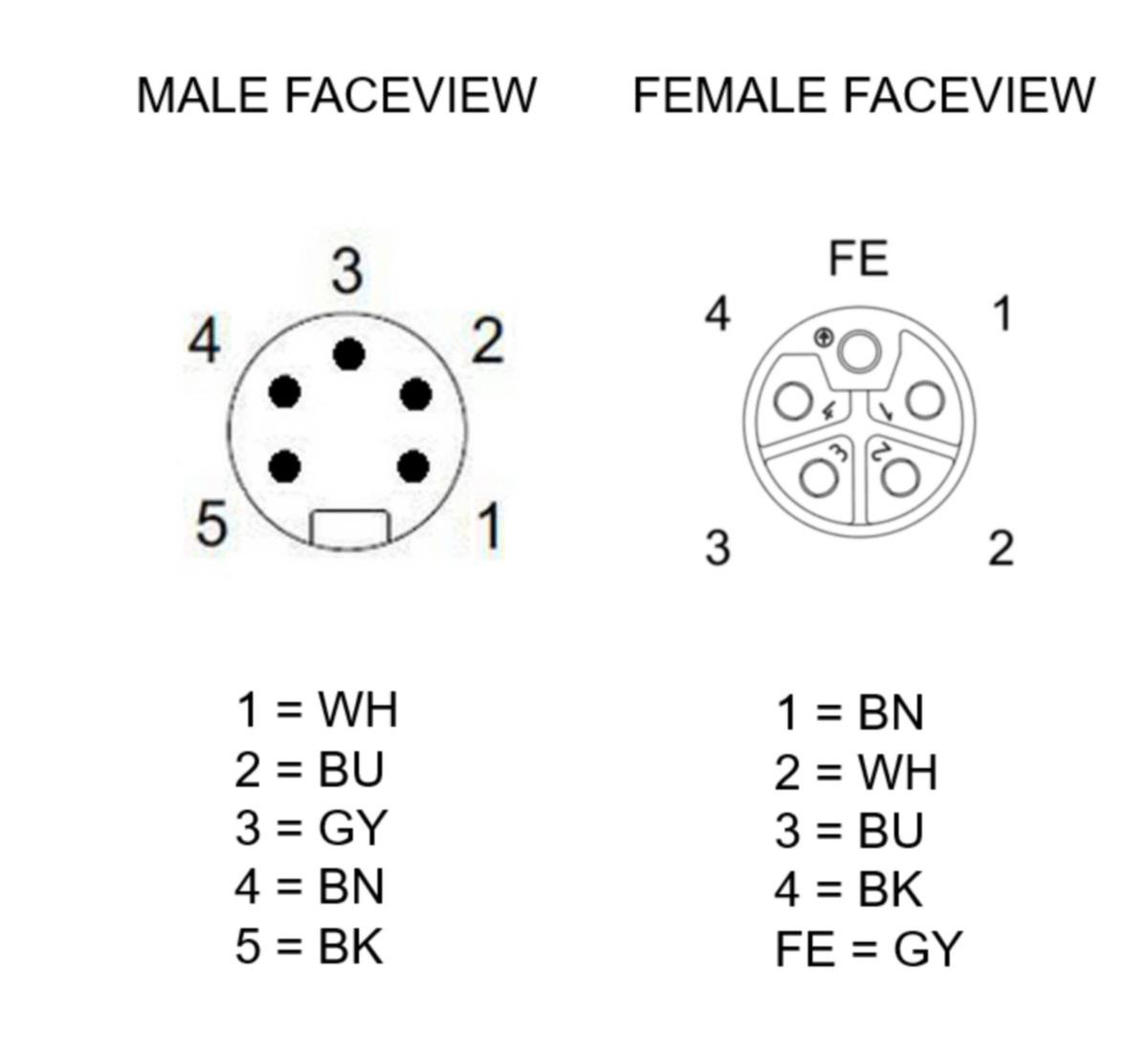

| Number of Pins: | 5 |
| Contact Resistance: | ≤ 5 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Ambient Temperature (Operation)*: | -40 °C to +90 °C |
| Protection Degree / IP Rating**: | IP68 (2h at 10 bar) |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | CuZn |
| Contact Plating: | Cu/Au |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | Grey |
| Molded Body Material: | TPU |
| Molded Body Color: | Black |
| Attachment Material: | PA, black |
| Cable Number: | 949 |
| Conductor Size: | 1.50 mm² |
| Number of Wires: | 5 |
| Minimal Bending Radius (Fixed Inst): | ˃ 4 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 7.5 x D |
| Cycles (Bending): | ˃ 10 M |
| Conductor material: | Cu |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | grey (RAL 7032) |

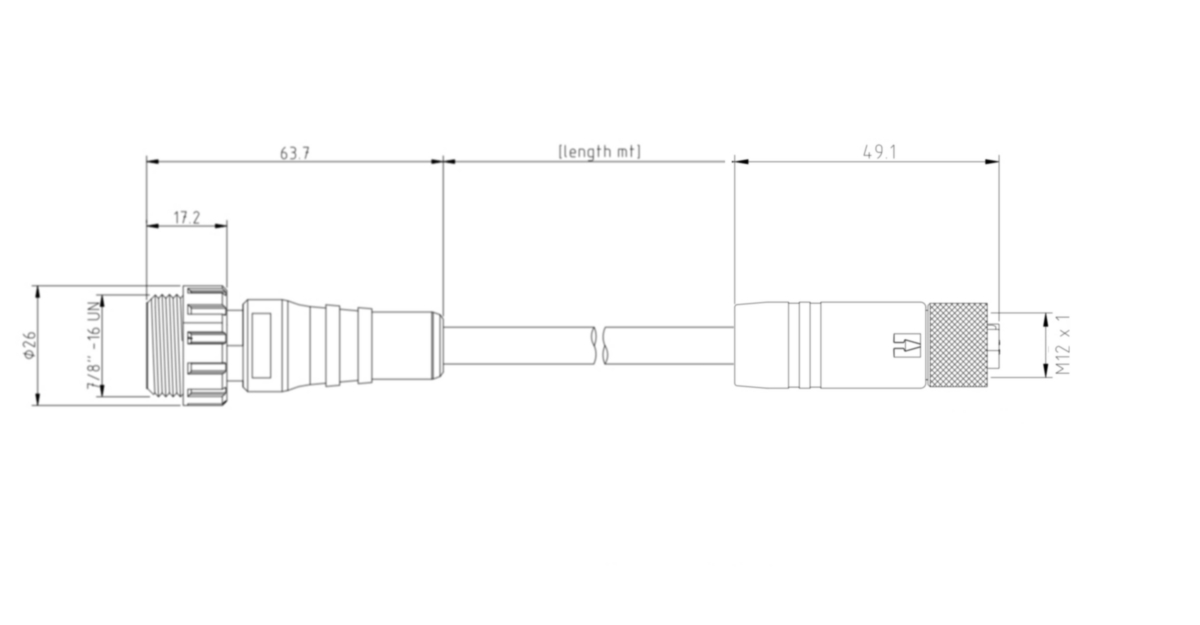

| Cable Diameter D: | ø 8.0 ±0.20 mm |
| Wire Insulation Material: | PP |
| Insulated Wire Diameter: | ø 2.35 mm |
| Ambient Temperature (Fixed Installation): | -40 °C to +90 °C (UL AWM 80°C) |
| Ambient Temperature (Flex Installation): | -30 °C to +90 °C (UL AWM 80°C) |
| Ambient Temperature (Fixed Installation short-term 100h): | -40 °C to +125 °C |
| Ambient Temperature (Drag Chain Inst): | -20 °C to +60 °C |
| UL Cable Type: | AWM: 20939 |
| Flammability Class (Cable Jacket): | VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1 |
| Product Sub Family, Side 2: | M12 Power |
| Type of Contact / Gender, Side 2: | Female |
| Connector Design, Side 2: | Straight |
| Attachment Type, Side 2: | Coupling nut |
| Number of Pins, Side 2: | 5(4+FE) |
| Coding, Side 2: | L |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Ambient Temperature (Operation), Side 2*: | -40 °C to +125 °C, notice derating |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67, IP69K |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2: | CuNi |
| Contact Plating, Side 2: | Cu/Au |
| Contact Bearer Material, Side 2: | PBT GF |
| Contact Bearer Color, Side 2: | Grey |
| Molded Body Material, Side 2: | TPE |
| Molded Body Color, Side 2: | Black |
| Attachment Material, Side 2: | CuZn, plated Cu/Ni |
| O-Ring Material, Side 2: | FKM |
| Note, Side 2: | Do not connect / disconnect under load. |
| RoHS Compliant: | Yes |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating: | * Notice derating |
