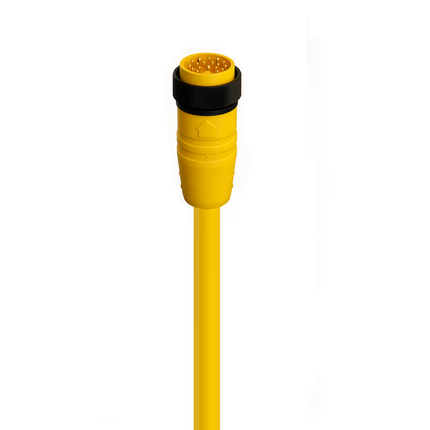

(4)Singled-Ended Cordset| 1-1/8"- Male Straight | #Contacts: 19 | 300 V / 8 & 3 A | Cable TPE Yellow; 19x18 AWG; NUMERIC | cURus 2238
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 | Pin 9 | Pin 10 | Pin 11 | Pin 12 | Pin 13 | Pin 14 | Pin 15 | Pin 16 | Pin 17 | Pin 18 | Pin 19 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| black 1 | black 2 | black 3 | black 4 | black 5 | black 6 | black 7 | black 8 | black 9 | black 10 | black 11 | green-yellow | black 13 | black 14 | black 15 | black 16 | black 17 | black 18 | black 19 |
| Product Family: | Power Connector |
| Side 1 Product Sub Family: | 1-1/8" (9; 10; 12; 19 contacts) |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, single ended |
| Side 1 Type of Contact/Gender: | Socket Contacts / Female |

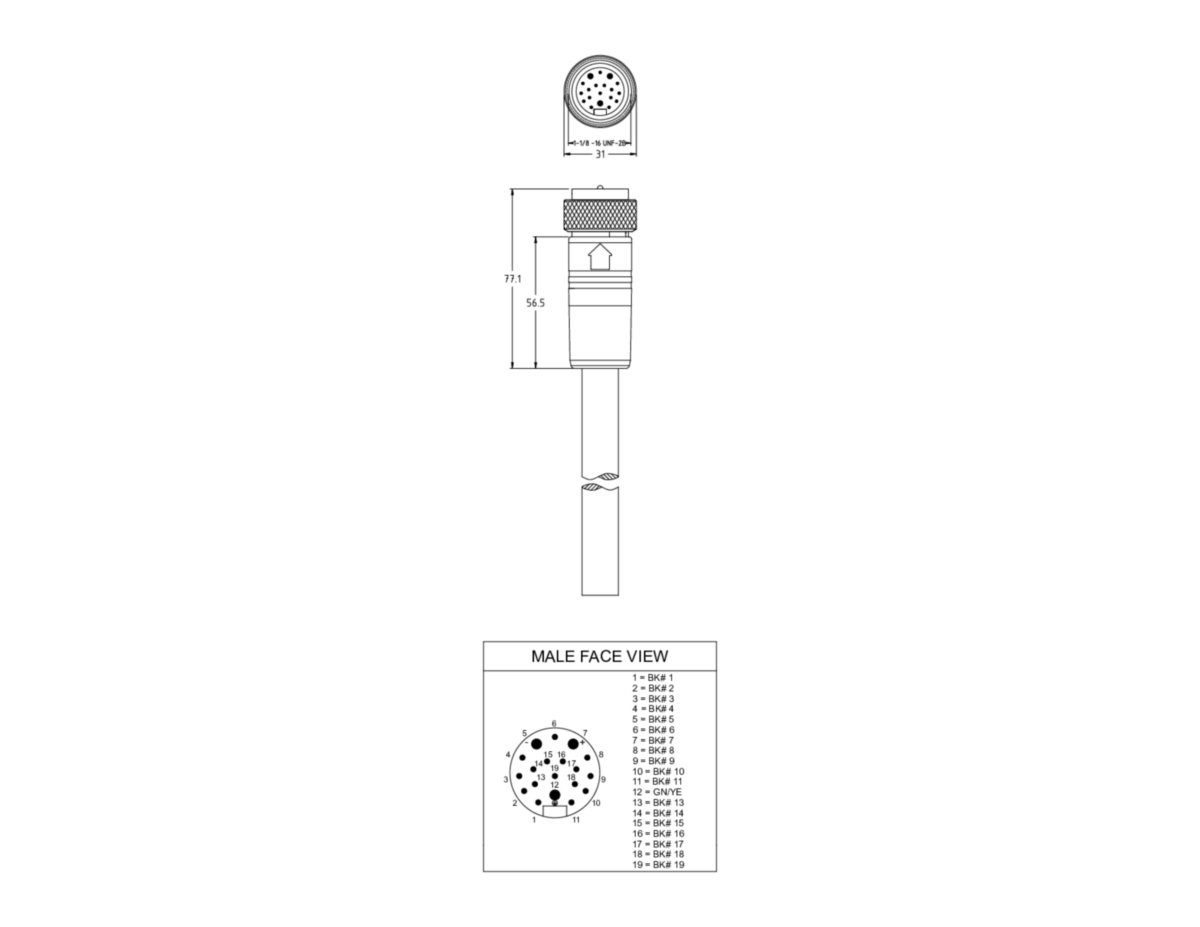

| Connector Design: | 1-1/8" | Male | 19 Pole | 0° |
| Number of Pins: | 19 (18+PE) |
| Coding, Side 1: | A |
| Attachment Type: | Female Thread (coupling nut) |
| Voltage Rating: | 300 V |
| Rated Voltage (UL): | 300 V |
| Operating Voltage: | 270 V |
| Rated Current (UL)*: | Power 8 A | Signal 3 A |
| Mating Cycles: | ≤ 50 |
| Ambient Temperature (Operation)*: | - 40 °C to + 90°C |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Brass (CuZn) |
| Side 1 Contact Plating: | Gold / Silver alloy (Au / Ag) |
| Contact Bearer Color: | Yellow |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | Thermoplastic polyurethane (TPU) |
| Molded Body Color: | Yellow |
| Flammability Class (Molded Body): | UL 94 HB |
| Attachment Material: | Aluminum (Al) |
| Attachment Plating: | Anodized; Black |
| Fastening Torque (Attachment): | 1-1/8'': 70 Ncm, hand-tight |
| Accessories to Order Separately: | 500000358 - RS-TU thread adaptor |
| Cable Number: | 769 |
| Conductor Size: | 18 AWG |
| Number of Wires: | 19 |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 5 Mio. |
| Conductor Material: | Cu |
| Cable Jacket Material: | Thermoplastic Elastomer (TPE) |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | Ø 13.46 mm |
| Wire Insulation Material: | Polyvinyl Chloride w/ Nylon (PVC-Nylon) |
| Insulated Wire Diameter: | Ø 2.00 mm |
| Ambient Temperature (Fixed Installation): | - 40 °C to + 90°C |
| UL Cable Type: | (UL) PLTC or AWM 20626 |
| Flammability Class (Cable Jacket): | I/II A/B; CSA FT4 |
| Cable Characteristics: | Flexibility: Excellent | Abrasion Resistance: Very Good | Chemical Resistance: resists water; oils; greases; acids; alkalis; and solvents| Flame Retardance: Good | Halogen-Free: No | Mechanical Durability: Good (resists impact; tear; and flex) | Environmental Suitability: outdoor; oily; wet; or rough environments |
| UL-File: | E315587 |
| UL: | UL 2238; cURus |
| RoHS Compliant: | Yes |
| Note Derating: | * Notice derating |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500004653 | RS 1901M-769/10M | 10 m |
