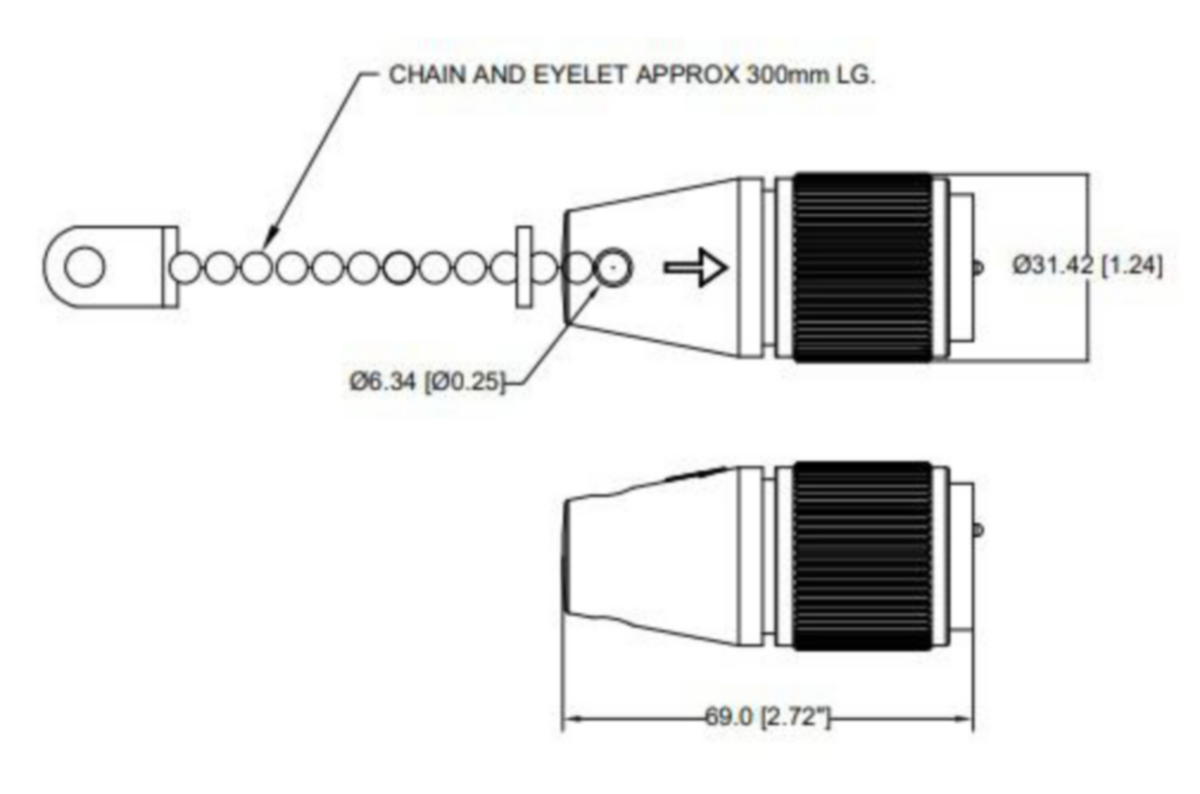

(4)Shorting plug, mini, 12-pin with 300 mm chain and eyelet
| Product Family: | Accessories |
| Product Sub Family: | 1" |
| Brand: | Lumberg Automation |
| Type of Contact / Gender: | Male |

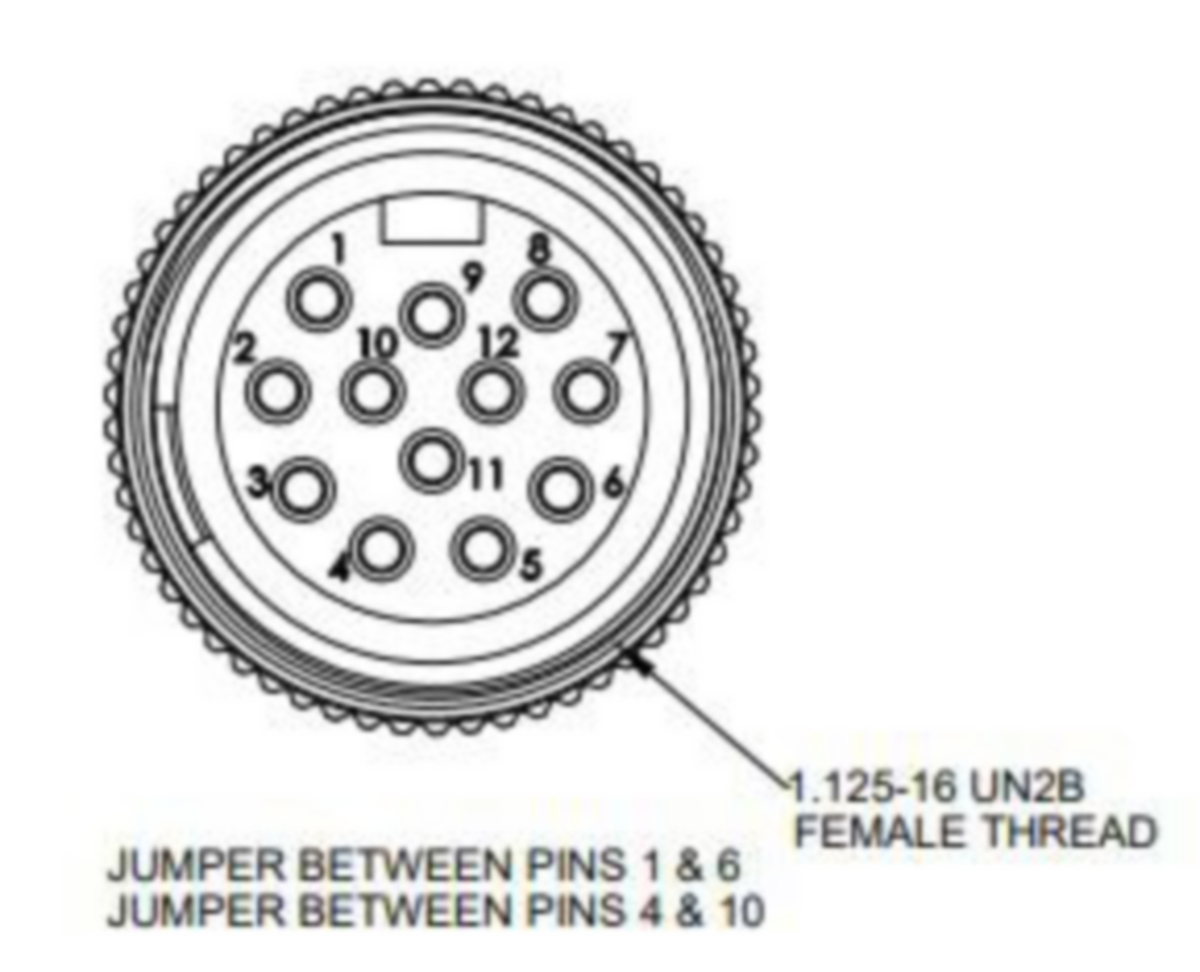

| Number of Pins: | 12 |
| Rated Voltage: | 300 V |
| Rated Current (UL)*: | 4 A |
| Ambient Temperature (Operation)*: | 105 °C |
| Molded Body Material: | PVC |
| Molded Body Color: | Yellow |
| UL-File: | Pending |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
