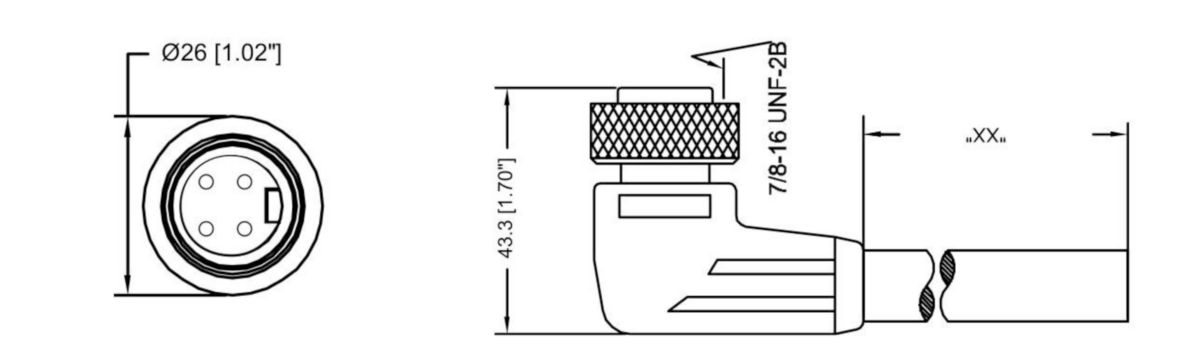

(109)7/8" Power Single-Ended Cordset: Female, angled, 4-pin, yellow body, 300 V (UL), 5.6 A (UL); TPE yellow cable, 18 AWG
| Product Family: | Power Connector |
| Product Sub Family: | 7/8" |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, single ended |
| Type of Contact / Gender: | female |
| Connector Design: | angled |

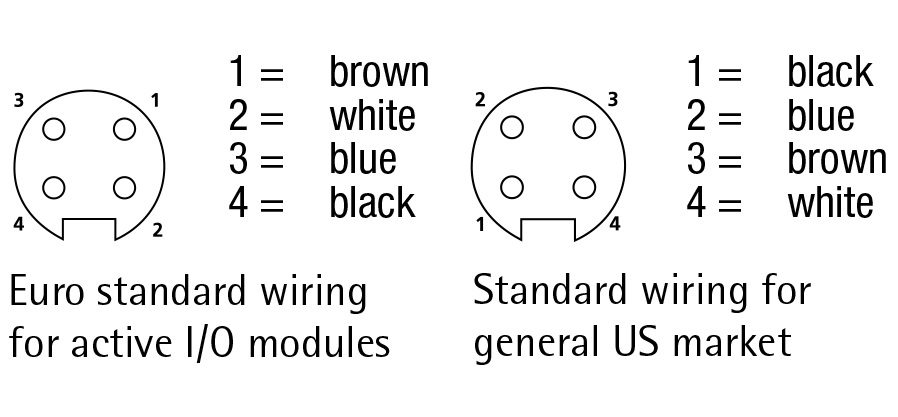

| Number of Pins: | 4 |
| Shielding: | Unshielded |
| Attachment Type: | Coupling nut with internal threads |
| Rated Voltage (UL): | 300 V |
| Rated Current (UL)*: | 5.6 A |
| Ambient Temperature (Operation)*: | -40°C to +90°C |
| Protection Degree / IP Rating**: | IP 67 / NEMA 6P |
| Contact Base Material: | CuZn |
| Contact Plating: | gold over silver plated |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | yellow |
| Molded Body Material: | TPU |
| Molded Body Color: | yellow |
| Cable Number: | 637 |
| Conductor Size: | 18 AWG |
| Number of Wires: | 4 |
| Cable Jacket Material: | TPE |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | .280" (7.1 mm) |
| UL Cable Type: | PLTC |
| UL: | UL 2238 Recognized |
| RoHS Compliant: | yes |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Update and Revision: | Revision Number: 0.69 Revision Date: 03-22-2023 |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500002703 | RKW 40-637/6F | 6 ft |
| 500002700 | RKW 40-637/12F | 12 ft |
| 500002780 | RKW 40-637/15F | 15 ft |
| 500002701 | RKW 40-637/20F | 20 ft |
| 500002702 | RKW 40-637/30F | 30 ft |
| 500003334 | RKW 40-637/50F | 50 ft |
