(4)M23 - Female 0° | #Contacts: 6 |250 V | Cable: Black (PUR); 3x1.0 mm², Numeric
Life Cycle Status: Limited Availability/Passive

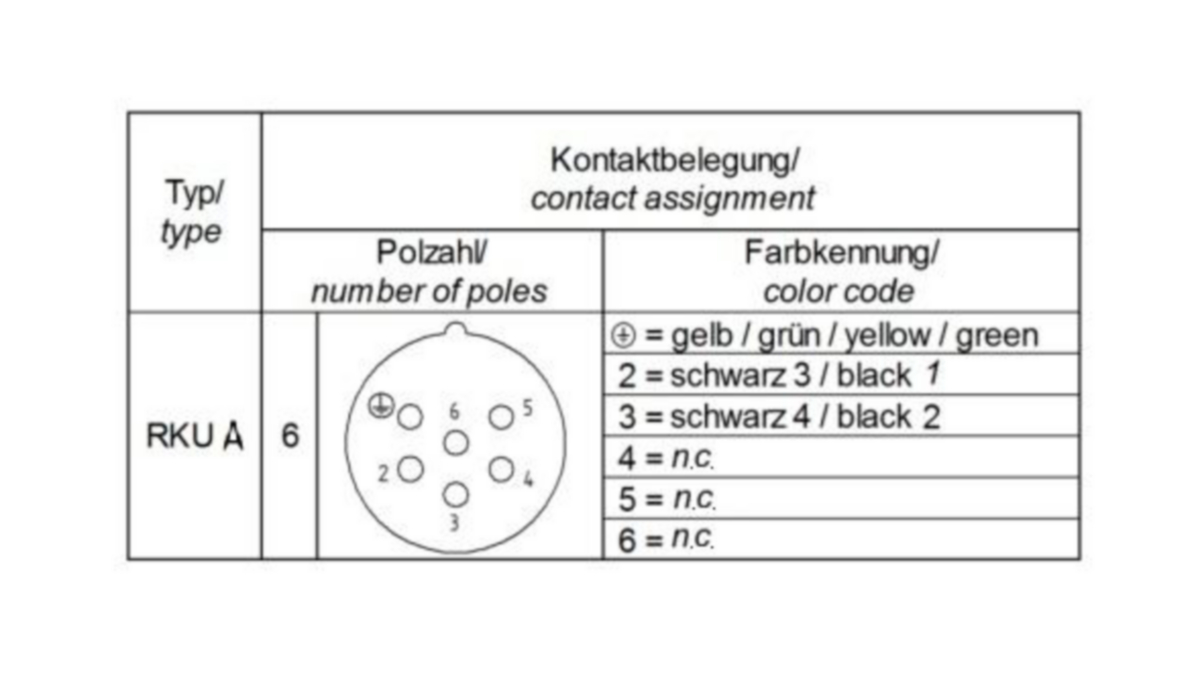

| Pin 1 | Pin 2 | Pin 3 |
|---|---|---|
| green/yellow | black 1 | black 2 |
| Product Family: | Power Connector |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Side 1 Type of Contact/Gender: | Socket Contact / Female |
| Connector Design: | M23 | Female | 6 Pole | 0° |
| Number of Pins: | 6 |
| Attachment Type: | Knurled Nut |
| Voltage Rating: | 250 V |
| Rated Impulse Voltage: | 2.5 kV |
| Current Rating: | 12 A |
| Contact Resistance: | ≤ 5 mOhm |
| Mating Cycles: | ≤ 100 |
| Cross Section: | 3x1.0mm² |
| Ambient Temperature (Operation)*: | - 25 °C to + 80 °C |
| Protection Degree / IP Rating**: | IP67 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance: | acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Brass (CuZn) |
| Side 1 Contact Plating: | Gold over Copper (Cu/Au) |
| Contact Bearer Material: | Polybutylene terephthalate (PBT) |
| Contact Bearer Color: | White |
| Flammability Class (Contact Bearer): | UL 94 V0 |
| Molded Body Material: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color: | Black |
| Flammability Class (Molded Body): | UL 94-HB |
| Attachment Material: | Brass (CuZn) |
| Attachment Plating: | Nickel (Ni) |
| Cable Number: | 203 |
| Number of Wires: | 3 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Conductor Material: | Cu |
| Cable Jacket Material: | Polyurethane (PUR) |
| Cable Jacket Color: | Black |
| Cable Diameter D: | Ø 6.50 |
| Wire Insulation Material: | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter: | Ø 2.20 mm [0.087"] |
| Ambient Temperature (Fixed Installation): | - 40 °C to + 90 °C |
| Ambient Temperature (Flex Installation): | + 5 °C to + 90 °C |
| Flammability Class (Cable Jacket): | VDE 0482-265-2-1 EN 50265-2-1 IEC 60332-1 |
| RoHS Compliant: | Yes |
| Halogenfree: | Yes |
| Oil Resistance: | Yes |

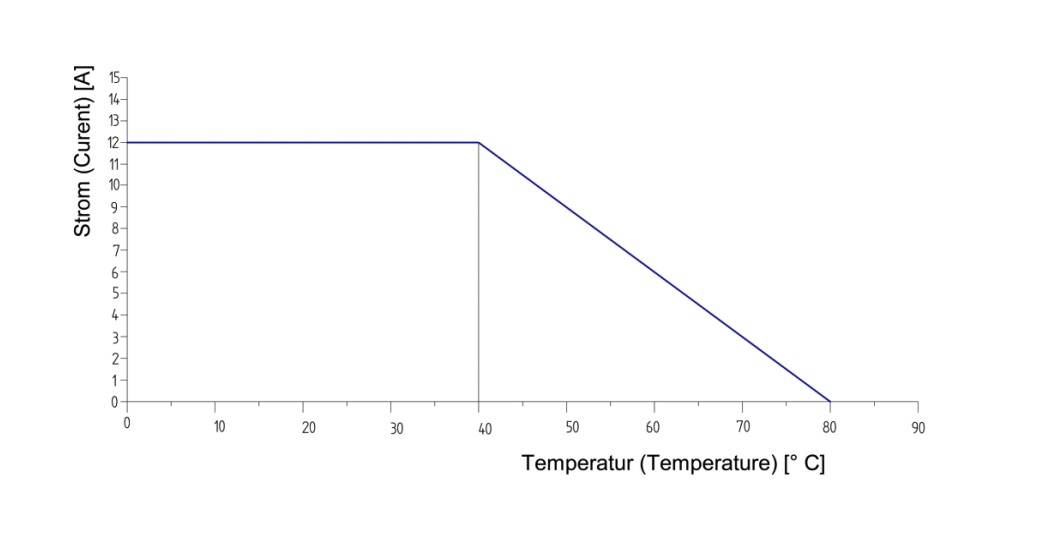

| Note Derating: | * Notice derating |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Note: | L = Standard length of control line |
| Particularities: | When the connector is unlocked and in risk of pollution the connector has to be covered with a protective cap ≥ IP54. |
| Product Characteristics: | Drag chain sustainability, Very good resistance to oils, coolants, lubricants as well as emulsions, Very good vibration and shock resistance |
| Item # | Item Description | Cable Length |
|---|---|---|
| 900001056 | RKU A 6-203/5 M | 5 m |
| 900001689 | RKU A 6-203/10 M | 10 m |
| 57246 | RKU A 6-203/15 M | 15 m |
