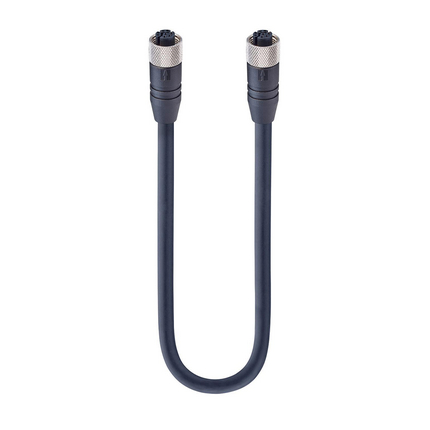

RKTS 8Y-RKTS 8Y-922 - Fast Ethernet Cat5e Data Double-Ended Cordset: Female straight Y-coded black M12 Hybrid to female straight Y-coded black M12 Hybrid, shielded, 50 V AC/ DC, Power: 6 A; Data: 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm² + Power: 4x0.75 mm²







Fast Ethernet Cat5e Data Double-Ended Cordset: Female straight Y-coded black M12 Hybrid to female straight Y-coded black M12 Hybrid, shielded, 50 V AC/ DC, Power: 6 A; Data: 0.5 A; PUR black cable, 8-wires, Data: 4x0.15 mm² + Power: 4x0.75 mm²

Data Sheet
Share

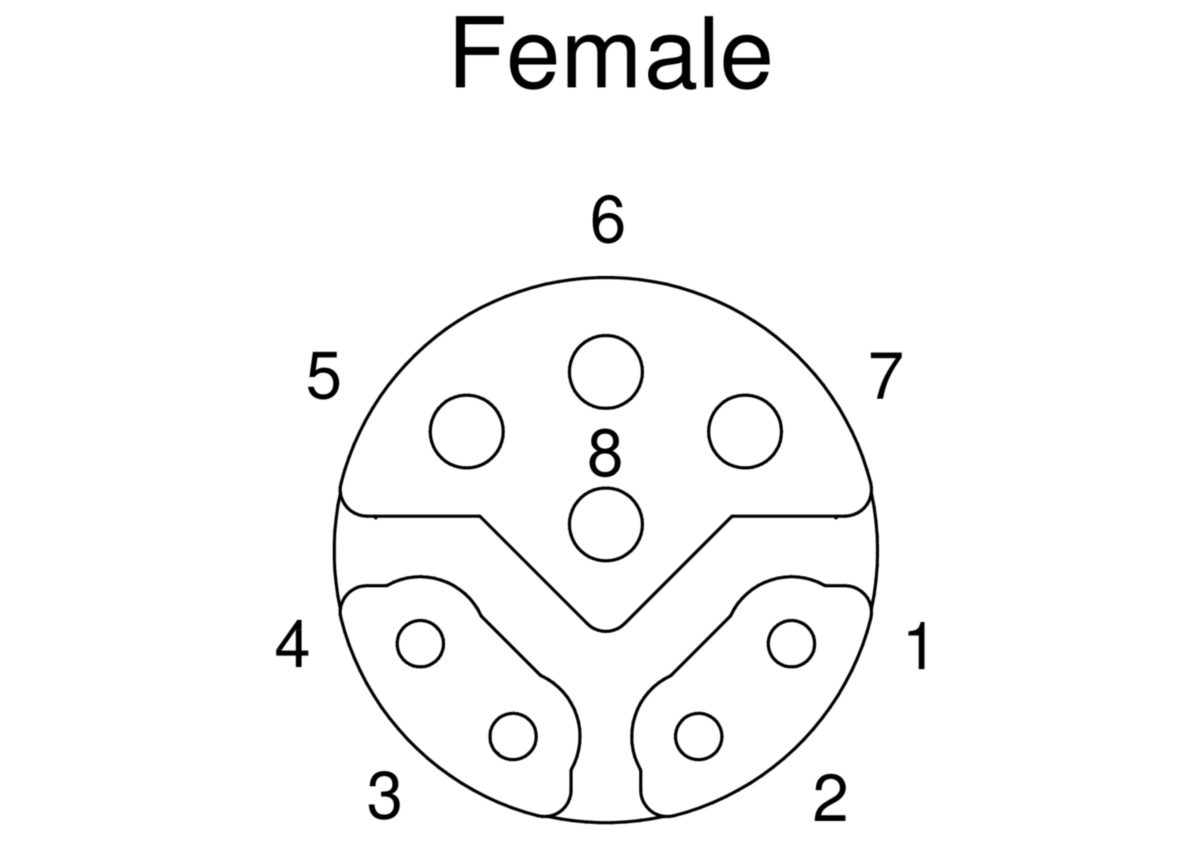

Face View Side 1
Pin 1Pin 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8
white-orangeorangewhite-greengreenbluewhitebrownblack
Face View Side 2
Pin 1Pin 2Pin 3Pin 4Pin 5Pin 6Pin 7Pin 8
white-orangeorangewhite-greengreenbluewhitebrownblack

Product Description

Product Family: Data Connectors
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Shielded
Rated Voltage: 50 V
Rated Voltage (UL): 50 V AC/DC
Rated Impulse Voltage: 0.8 kV
Operating Voltage: 50 V AC/ DC
Rated Current*: Power: 6 A; Data: 0.5 A
Rated Current (UL)*: Power: 6 A; Data: 0.5 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s

Technical Data Side 1

Product Sub Family: M12 Hybrid
Type of Contact / Gender: Female
Connector Design: Straight
Attachment Type: Coupling Nut
Number of Pins: 8
Coding: Y
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation)*: - 40 °C - + 90 °C
Operating Temperature (UL): max. + 80 °C
Protection Degree / IP Rating**: IP65, IP67, IP69K
Design Standard: IEC 61076-2-113
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material: CuZn
Contact Plating: Cu/Au
Contact Bearer Material: PBT-GF
Contact Bearer Color: Black
Flammability Class (Contact Bearer): Data: UL 94 V-2 + Power: UL 94 V-0
Molded Body Material: TPU
Molded Body Color: Black
Flammability Class (Molded Body): UL 94 HB
Attachment Material: CuZn
Attachment Plating: Nickel-plated
Shielding Material: GD-Zn, nickel-plated
Fastening Torque (Attachment): M 12x1: (50-60) Ncm, hand-tight
Note: Do not connect or disconnect under load.

Cable Data

Cable Number: 922
Conductor Size: Data: 4x0.15 mm² + Power: 4x0.75 mm²
Number of Wires: 8
Minimal Bending Radius (Fixed Inst): ˃ 6 x D
Minimal Bending Radius (Flexible Inst): ˃ 10 x D
Cycles (Bending): ˃ 1-2 M
Conductor material: Cu
Cable Jacket Material: PUR
Cable Jacket Color: black matt similarly RAL 9005
Cable Diameter D: ø 8.00 ± 0.3 mm
Wire Insulation Material: PP
Insulated Wire Diameter: Data: ø 1.15 ± 0.03 mm + Power: ø 1.70 ± 0.05 mm
Overall Shield (Cable): Cu-ETP1 tinned
Element Shield: Shielding Foil
Ambient Temperature (Fixed Installation): - 40 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation): - 30 °C - + 70 °C
UL Cable Type: AWM: 20233
Cable Characteristics: Exclusion of dangerous materials; Exclusion of PVC and Silicone
Core Colors: Data: green, orange, white-green, white-orange + Power: brown, black, white, blue

Technical Data Side 2

Product Sub Family, Side 2: M12 Hybrid
Type of Contact / Gender, Side 2: Female
Connector Design, Side 2: Straight
Attachment Type, Side 2: Coupling Nut
Number of Pins, Side 2: 8
Coding, Side 2: Y
Contact Resistance, Side 2: ≤ 10 mOhm
Insulation Resistance, Side 2: ˃ 10^9 Ohm
Mating Cycles, Side 2: ≤ 100
Ambient Temperature (Operation), Side 2*: - 40 °C - + 90 °C
Operating Temperature (UL), Side 2: max. + 80 °C
Protection Degree / IP Rating, Side 2**: IP65, IP67, IP69K
Design Standard, Side 2: IEC 61076-2-113
Pollution Degree, Side 2: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2: CuZn
Contact Plating, Side 2: Cu/Au
Contact Bearer Material, Side 2: PBT-GF
Contact Bearer Color, Side 2: Black
Flammability Class (Contact Bearer), Side 2: Data: UL 94 V-2 + Power: UL 94 V-0
Molded Body Material, Side 2: TPU
Molded Body Color, Side 2: Black
Flammability Class (Molded Body), Side 2: UL 94 HB
Attachment Material, Side 2: CuZn
Attachment Plating, Side 2: Nickel-plated
Shielding Material, Side 2: GD-Zn, nickel-plated
Fastening Torque (Attachment), Side 2: M 12x1: (50-60) Ncm, hand-tight

Approvals

UL-File: E315587
UL: UL 2238; cULus

Safety & Environmental Compliance

RoHS Compliant: yes

Resistances

Halogenfree: EN 50267-2-1, IEC 60754-1 max. 0,5% HCI
Oil Resistance: IEC 60811-2-1, ASTM 1 standard oil requirement

Notes

Protection Degree / IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Note Derating: Notice derating

History

Update and Revision: Revision Number: 0.44 Revision Date: 01-19-2023
Variants
Item #Item DescriptionCable Length
934966101RKTS 8Y-RKTS 8Y-922/0,3 M0.3 m
934966102RKTS 8Y-RKTS 8Y-922/0,6 M0.6 m
934966103RKTS 8Y-RKTS 8Y-922/1 M1 m
934966104RKTS 8Y-RKTS 8Y-922/2 M2 m
934966105RKTS 8Y-RKTS 8Y-922/3 M3 m
934966106RKTS 8Y-RKTS 8Y-922/5 M5 m
934966107RKTS 8Y-RKTS 8Y-922/10 M10 m
934966108RKTS 8Y-RKTS 8Y-922/15 M15 m

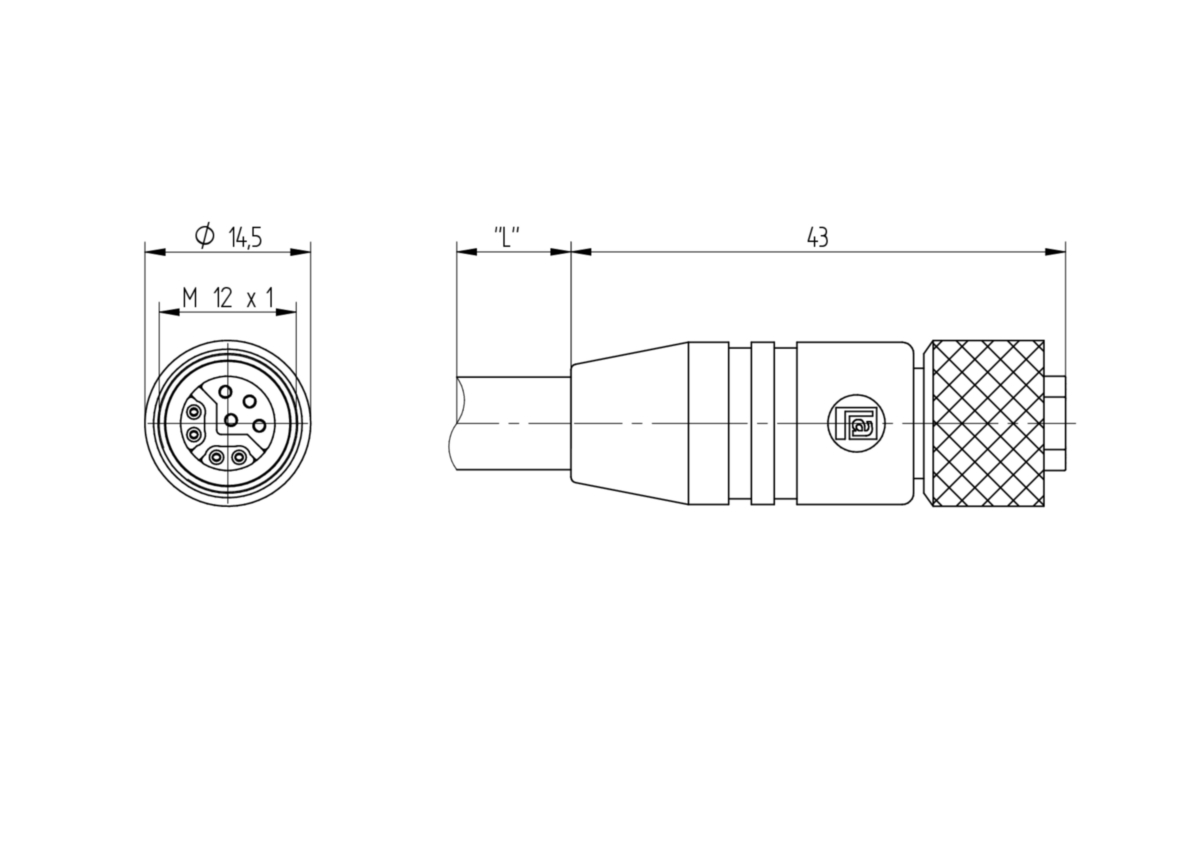

CAD Data
Side_1_M12 Hybrid-Female-Straight-Shielded-8Y-Thick.zip
Download
Side_2_M12 Hybrid-Female-Straight-Shielded-8Y-Thick.zip
Download
Certification
EU Declaration of conformity
Description: GEN-ALL-CST-201008-0354V02
Download
