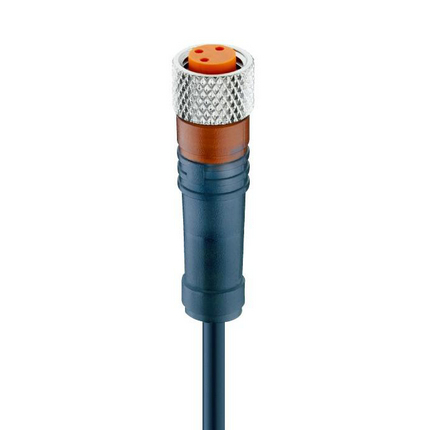

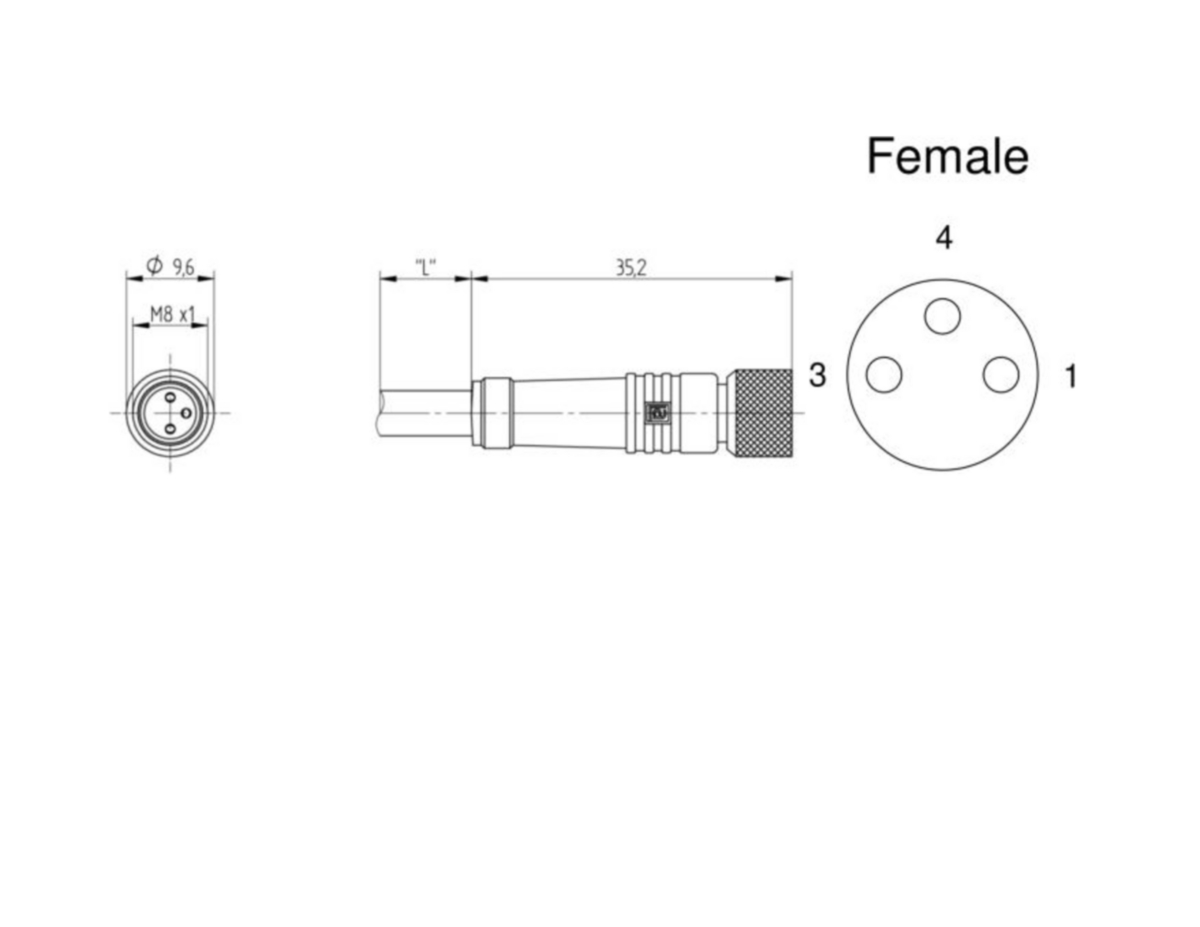

(4)M8 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 3-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PU black cable, 3-wires, 0.34 mm²
| Pin 1 | Pin 2 | Pin 3 |
|---|---|---|
| brown | blue | black |
| Side 1 Product Sub Family: | M8 Standard |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, single ended |
| Side 1 Type of Contact/Gender: | Female |
| Connector Design: | Straight |
| Number of Pins: | 3 |
| Coding, Side 1: | A |
| Shielding Type: | Unshielded |
| Attachment Type: | Coupling Nut |
| Rated Voltage (UL): | 60V |
| Rated Impulse Voltage: | 1.5 kV |
| Operating Voltage: | 50 V AC / 60 V DC |
| Rated Current (UL)*: | 4 A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | - 30 °C - + 80 °C |
| Protection Degree / IP Rating**: | IP 67 |
| Design Standard: | IEC 61076-2-104 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | CuSn |
| Side 1 Contact Plating: | Cu/Au |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | Orange |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | TPU |
| Molded Body Color: | Translucent |
| Flammability Class (Molded Body): | UL 94 HB |
| Attachment Material: | CuZn |
| Attachment Plating: | Nickel-plated |
| O-Ring Material: | FKM, green |
| Fastening Torque (Attachment): | M 8x1: 30 Ncm, hand-tight |
| Cable Number: | MF224 |
| Conductor Size: | 0.34 mm² |
| Number of Wires: | 3 |
| Minimal Bending Radius (Fixed Inst): | 4 x D |
| Minimal Bending Radius (Flexible Inst): | 10 x D |
| Conductor Material: | Cu |
| Cable Jacket Material: | PU |
| Cable Jacket Color: | Black |
| Cable Diameter D: | ø 4.30mm |
| Wire Insulation Material: | PVC |
| Insulated Wire Diameter: | ø 1.30 mm |
| Flammability Class (Cable Jacket): | IEC 60332-2-1/ FT2 |
| Note Derating: | Notice derating |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note: | Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 9600103015 | RKMV 3-MF224/0150 | 1.5 m |
| 960010302 | RKMV 3-MF224/0200 | 2 m |
| 960010304 | RKMV 3-MF224/0400 | 4 m |
| 960010305 | RKMV 3-MF224/0500 | 5 m |
| 960010306 | RKMV 3-MF224/0600 | 6 m |
| 960010308 | RKMV 3-MF224/0800 | 8 m |
