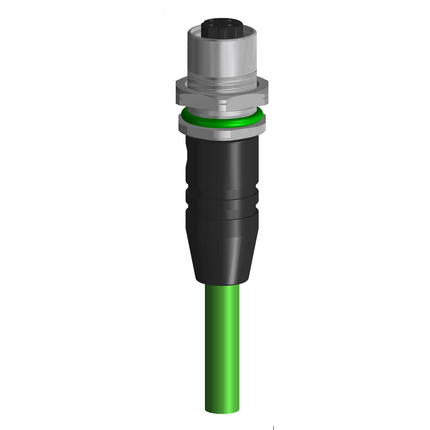

(4)Fast Ethernet Cat5e Data Receptacle Connector: Female, rear mount, M12 - mating side, cable - connecting side, 4-pin, D-coded, shielded, metallic housing, 50 V AC / 60 V DC, 4A; PUR green cable, 4-wires, 0.34mm2

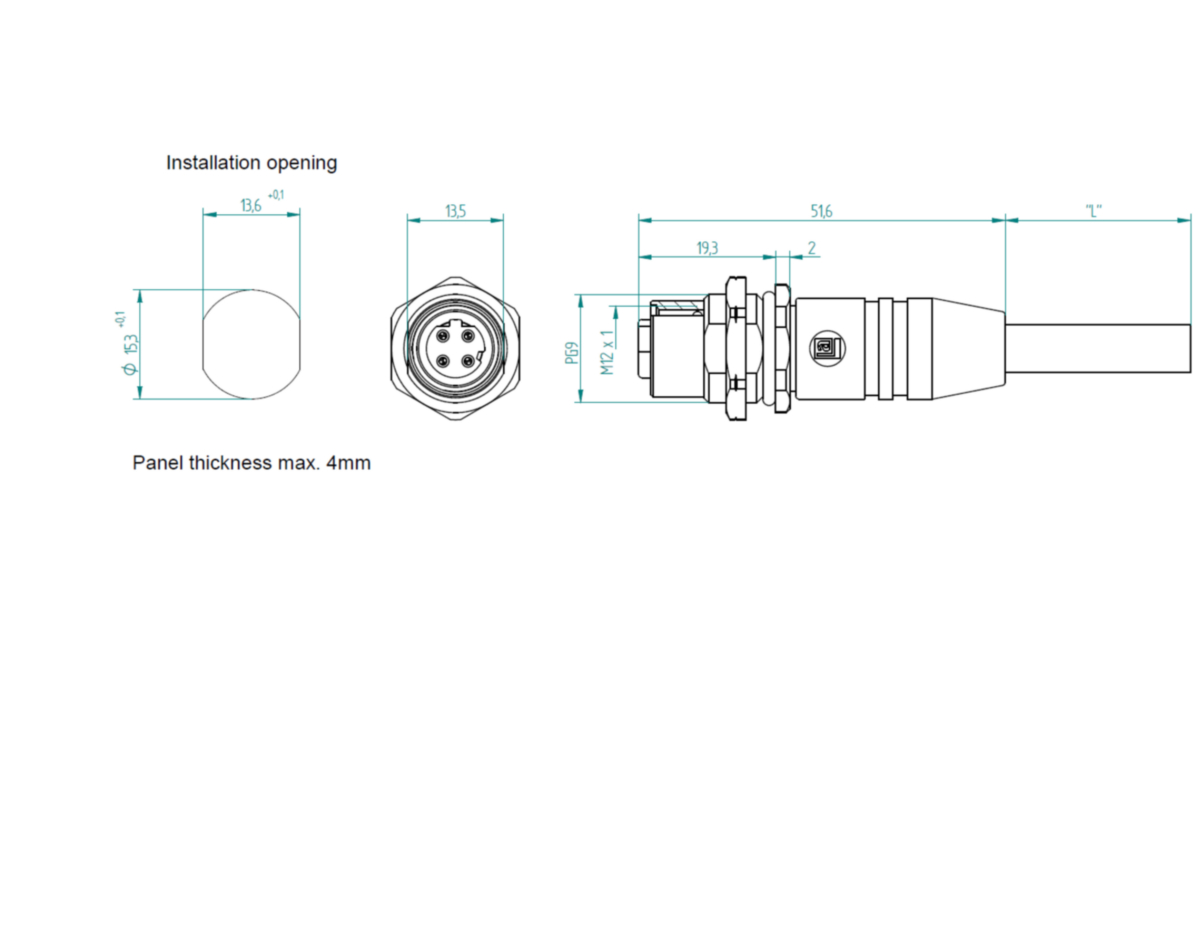

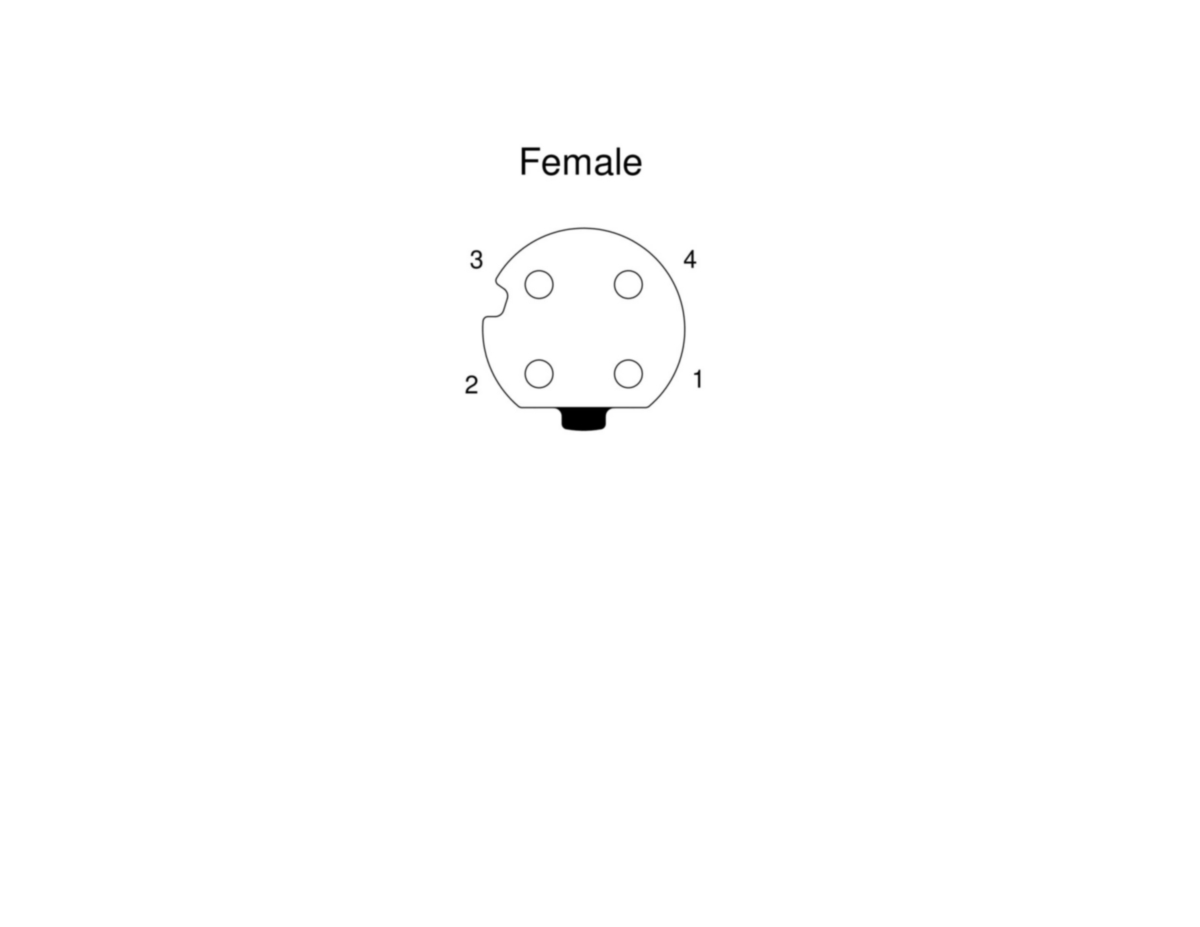

| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| yellow | white | orange | blue |
| Product Family: | Data Connectors |
| Product Sub Family: | M12 Standard |
| Mating Side: | M12 |
| Connecting Side: | Cable |
| Brand: | Lumberg Automation |
| Connector Type: | Receptacle |
| Type of Contact / Gender: | Female |
| Connector Design: | Rear Mount |
| Number of Pins: | 4 |
| Coding: | D |
| Shielding: | Shielded |
| Attachment Type: | Screw-Locking |
| Rated Voltage: | 60 V |
| Rated Impulse Voltage: | 1.5 kV |
| Operating Voltage: | 50 V AC/60 V DC |
| Rated Current*: | 4 A |
| Data Transmission Rate: | Fast Ethernet Cat5e |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^8 Ohm |
| Mating Cycles: | ≤ 100 |
| Thread Size: | PG9 |
| Thread Material: | CuZn |
| Thread Plating: | Nickel-plated |
| Ambient Temperature (Operation)*: | - 25 °C - + 85 °C |
| Protection Degree / IP Rating**: | IP 67 |
| Design Standard: | IEC 61076-2-101 |
| Contact Plating: | Cu/Au |
| Molded Body Material: | PA |
| Molded Body Color: | Black |
| Housing Material: | CuZn |
| Housing Plating: | Nickel-plated |
| O-Ring Material: | FKM |
| Cable Number: | 342 |
| Conductor Size: | 0.34 mm² |
| Number of Wires: | 4 |
| Minimal Bending Radius (Fixed Inst): | ＞ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ＞ 10 x D |
| Cycles (Bending): | ˃ 2 M |
| Conductor material: | Cu |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | green matt similarly RAL 6018 |
| Cable Diameter D: | ø 6.5 ± 0.2 mm |
| Wire Insulation Material: | PP |
| Insulated Wire Diameter: | ø 1.58 ± 0.05 mm |
| Overall Shield (Cable): | Cu-ETP1 tinned |
| Foil shield: | Al-PT Foil |
| Ambient Temperature (Fixed Installation): | -50 °C - + 80 °C |
| Ambient Temperature (Flex Installation): | -25 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
| UL Cable Type: | AWM: 20549 |
| RoHS Compliant: | yes |
| Note Derating: | Notice derating |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note: | The receptacle connector is constructively intended for usage in IP67-products. To realise this protection class, the estimated location has to be designed accordingly. Further details see IEC 61076-2-101. |
| Item # | Item Description | Cable Length |
|---|---|---|
| 93420101 | RKHS 4D-342/1M CN | 1m |
