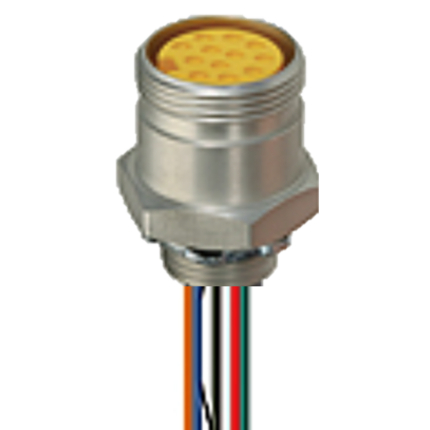

(4)Receptacle | 1-1/8" - Female Straight | 1/2NPTF | #Contacts: 9 | 600 V / 7 A | Hookup Wires; 9x16 AWG; US | UL 2238; cURus

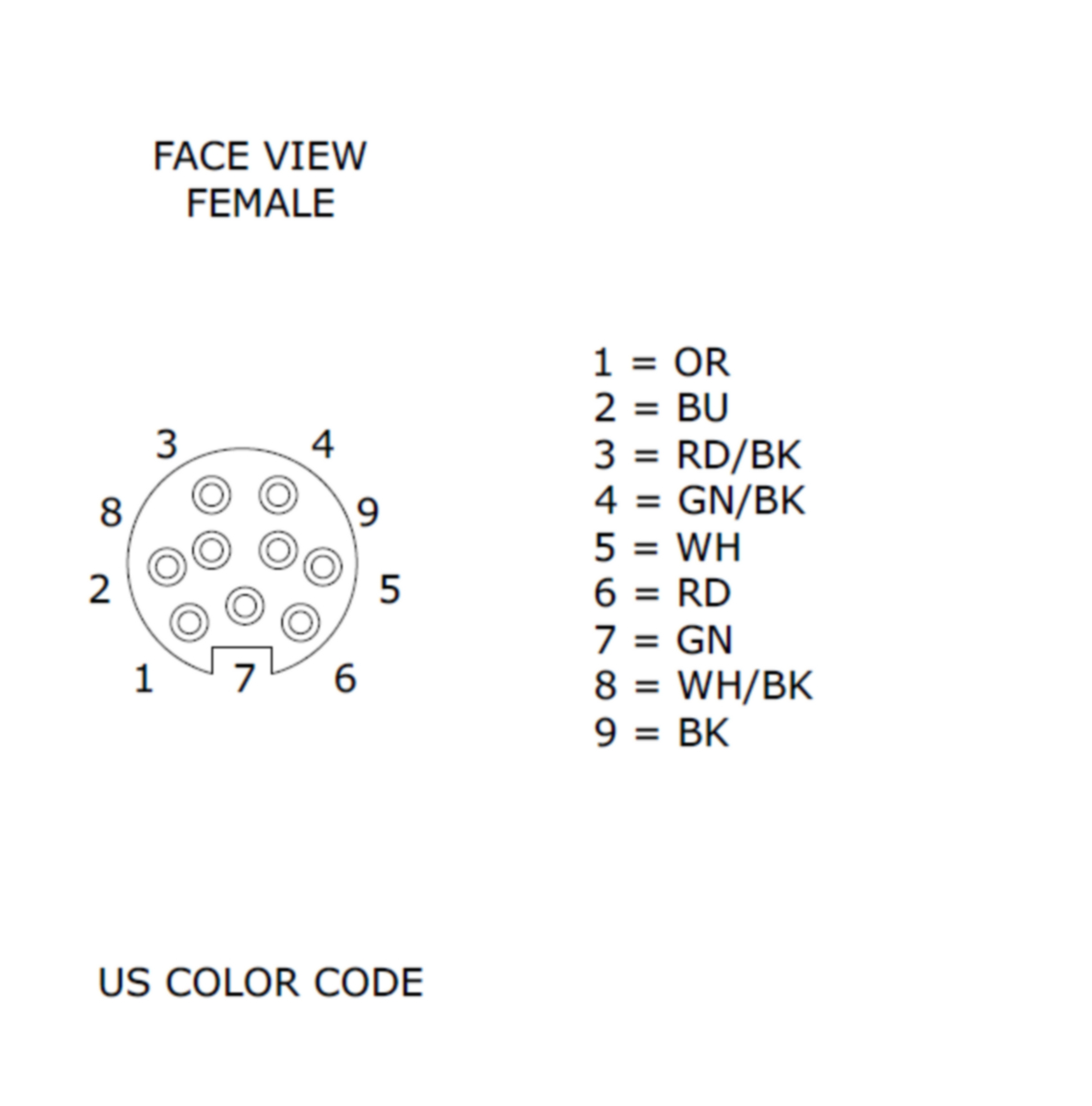

| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 | Pin 9 |
|---|---|---|---|---|---|---|---|---|
| orange | blue | red/black | green/black | white | red | green | white/black | black |
| Product Family: | Power Connector |
| Side 1 Product Sub Family: | 1-1/8" (9, 10 ,12, 19 contacts) |
| Brand: | Lumberg Automation |
| Connector Type: | Receptacle |
| Connector Sub Type: | Receptacle; Female |
| Side 1 Type of Contact/Gender: | Socket Contact / Female |

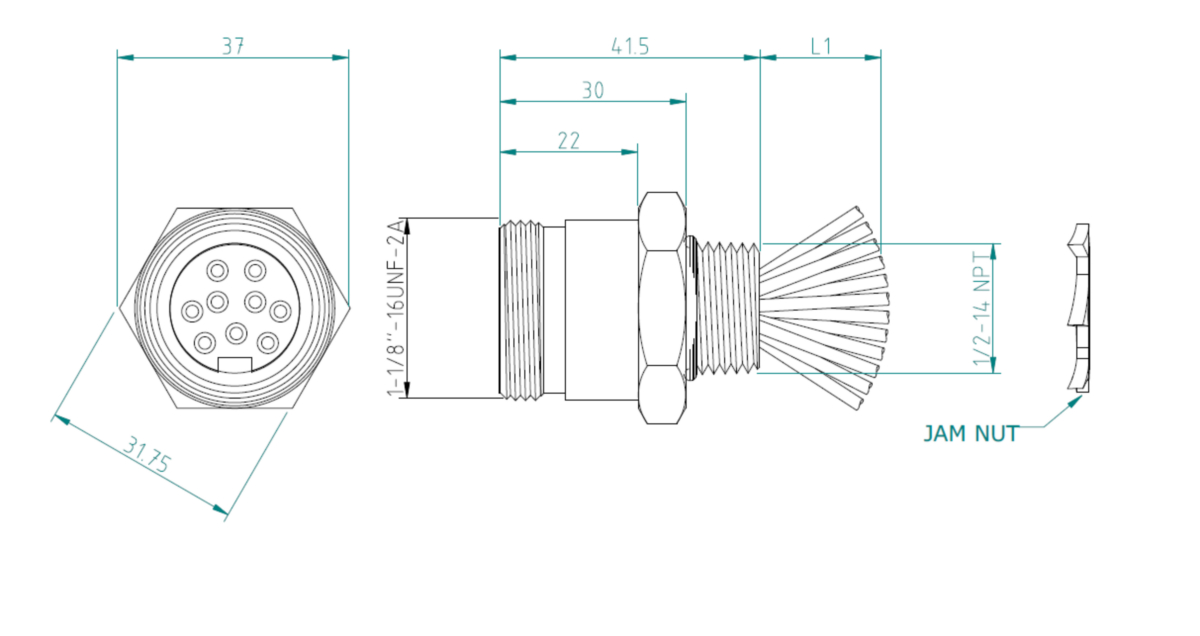

| Connector Design: | 1-1/8" | Female | 9 Pole | Front Mount |
| Number of Pins: | 9 |
| Coding, Side 1: | A |
| Shielding Type: | Unshielded |
| Attachment Type: | Fixed, External Thread |
| Voltage Rating: | 600 V |
| Rated Voltage (UL): | 600 V |
| Operating Voltage: | 540 V AC/DC |
| Current Rating: | 7 A |
| Rated Current (UL)*: | Power 7 A | Signal 7 A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Thread Size: | 1/2" NPTF |
| Ambient Temperature (Operation)*: | - 40 °C to + 90 °C |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | CuZn |
| Side 1 Contact Plating: | Copper-Silver-Gold-Alloy (Cu/Ag/Au) |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | Yellow |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Potted: | Yes |
| Housing Material: | Aluminum (Al) |
| Housing Plating: | Anodized with clear finish |
| Housing Color: | Silver |
| Threaded Ring Material: | Steal |
| O-Ring Material: | FKM, panel side |
| Attachment Type, Side 2: | 1/2-14 NPT, Steel, Lock Nut |
| Gasket Material: | Fluoroelastomer (FKM) |
| Fastening Torque (Attachment): | 1-1/8 | 70 Ncm, hand-tight" |
| Conductor Size: | 16 AWG |
| Number of Wires: | 9 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Conductor Material: | Cu |
| Wire Insulation Material: | Polyvinyl Chloride (PVC) |
| Insulated Wire Diameter: | Ø 3.07 mm [ 0.120" ] |
| UL Cable Type: | UL: 1015/1230 |
| Flammability Class (Cable Jacket): | VW-1 |
| UL-File: | E315587 |
| UL: | UL 2238; cURus |
| REACH: | Compliant |
| RoHS Compliant: | Yes |
| Halogenfree: | No |
| Oil Resistance: | Yes |
| Note Derating: | * Notice derating |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
