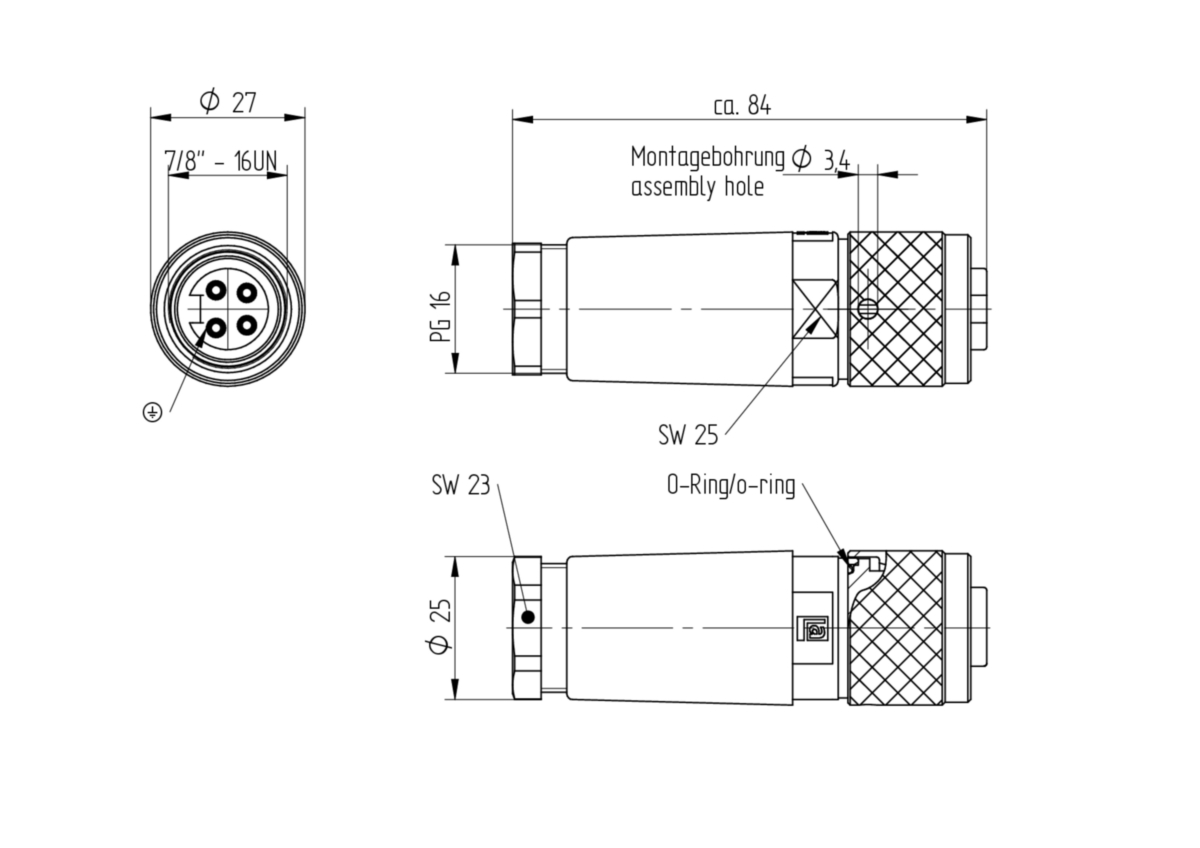

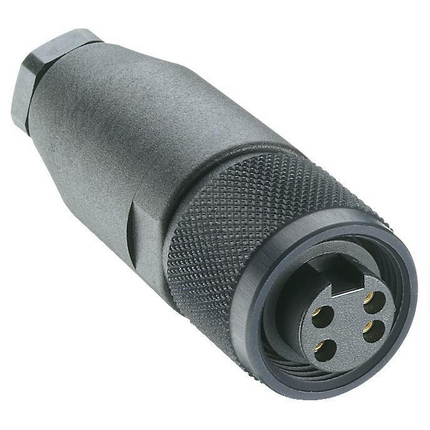

(109)7/8" Power Field Attachable Connector: Female, straight, 4-pin, black housing, 230 V AC/DC, 9 A
| Product Family: | Power Connector |
| Product Sub Family: | 7/8" |
| Brand: | Lumberg Automation |
| Connector Type: | Field Attachable |
| Type of Contact / Gender: | female |
| Connector Design: | straight |
| Number of Pins: | 4 |
| Shielding: | Unshielded |
| Attachment Type: | Coupling nut with external threads |
| Rated Voltage: | 250 V AC/DC |
| Operating Voltage: | 230 V AC/DC |
| Rated Current*: | 9 A |
| Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Type of Connection: | screw terminal |
| Cable Gland: | PG 16 |
| Conductor Cross Section: | max. 1.5 mm² |
| Ambient Temperature (Operation)*: | -40 °C to +90 °C |
| Protection Degree / IP Rating**: | IP67 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | CuZn |
| Contact Plating: | Cu/Au |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | black |
| Housing Material: | PA 66 |
| Housing Color: | black |
| Attachment Material: | Al (anodized) black |
| O-Ring Material: | NBR |
| UL-File: | E104696 |
| UL: | cURus |
| RoHS Compliant: | yes |
| Note Derating: | * Notice derating |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note: | Do not connect / disconnect under load. |
| Item # | Item Description |
|---|---|
| 11218 | RKC 40/16 |
