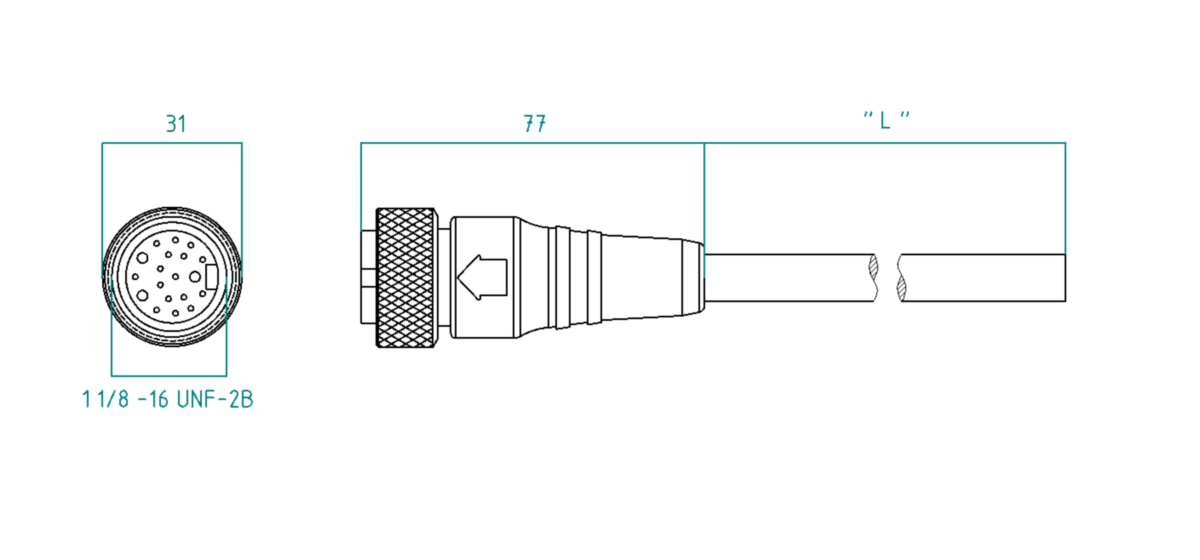

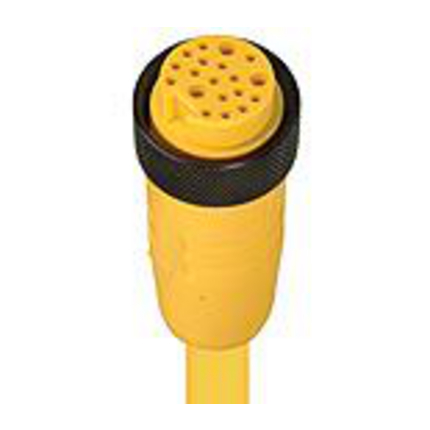

(4)1-1/8" Molded Female Cordset, Contacts: 19, 300 V | 3 A & 8 A , IP67; Cable PUR Yellow, 19x18AWG
| Product Family: | Power Connector |
| Product Sub Family: | 1-1/8" RK Female |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, single ended |
| Type of Contact / Gender: | Female |
| Connector Design: | Straight |

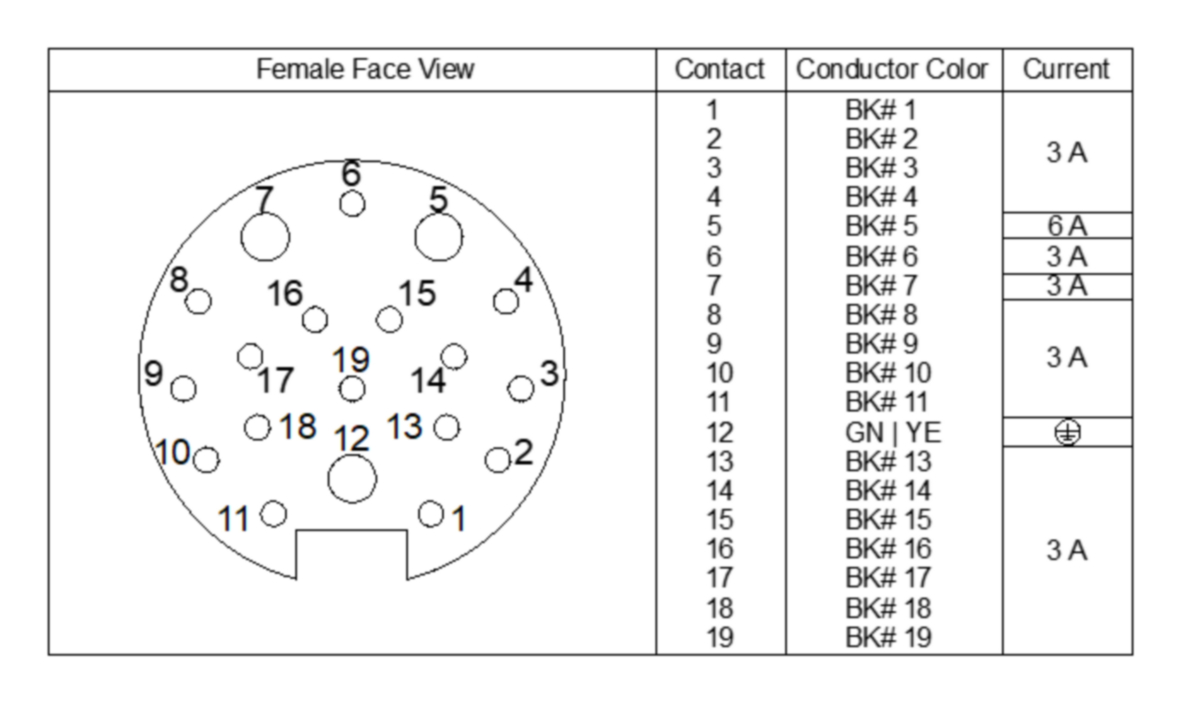

| Number of Pins: | 19 |
| Coding: | A |
| Shielding: | Unshielded |
| Attachment Type: | Coupling nut with internal threads |
| Rated Voltage: | 300 V |
| Mating Cycles: | ≤ 50 |
| Ambient Temperature (Operation)*: | -40 °C to +90 °C |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Contact Base Material: | CuZn |
| Contact Plating: | Au over Ag |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | YE |
| Molded Body Material: | TPU |
| Molded Body Color: | yellow |
| Attachment Material: | Anodized Bk, Al |
| Accessories to Order Separately: | 500000358 - RS-TU thread adaptor |
| Cable Number: | 669 |
| Conductor Size: | 18 AWG |
| Number of Wires: | 19 |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 5 Mio. |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | Yellow |
| Cable Diameter D: | Ø 12.4 mm |
| Wire Insulation Material: | PVC-Nylon |
| Insulated Wire Diameter: | Ø 2.00 mm |
| Ambient Temperature (Fixed Installation): | -40 C° - +80 C° |
| UL Cable Type: | AWM 20233 |
| Flammability Class (Cable Jacket): | FT1 |
| Cable Characteristics: | Oil and Coolant, Vibration, UV, Abrasion, and Weld Spark resistant, Continuous Flex |
| UL-File: | Do not connect or disconnect under load. |
| RoHS Compliant: | Yes |
| Note Derating: | Notice Derating |
| Update and Revision: | Revision Number: 0.27 Revision Date: 04-10-2025 |
| Item # | Item Description | Cable Length |
|---|---|---|
| 500003339 | RK 190M-669/2M | 2 m |
| 500000747 | RK 190M-669/5M | 5 m |
| 500000748 | RK 190M-669/10M | 10 m |
| 44601 | RK 190M-669/15 M | 15 m |
| 500000746 | RK 190M-669/15M | 15 m |
| 500000745 | RK 190M-669/20M | 20 m |
| 500001299 | RK 190M-669/20F | 20 ft |
| 87456 | RK 190M-669/20 F | 20 ft |
| 500000818 | RK 190M-669/25M | 25 m |
| 500000778 | RK 190M-669/30M | 30 m |
| 500001301 | RK 190M-669/30F | 30 ft |
| 56572 | RK 190M-669/30 F | 30 ft |
| 500002246 | RK 190M-669/40M | 40 m |
| 500003183 | RK 190M-669/60M | 60 m |
| 87457 | RK 190M-669/60 F | 60 ft |
