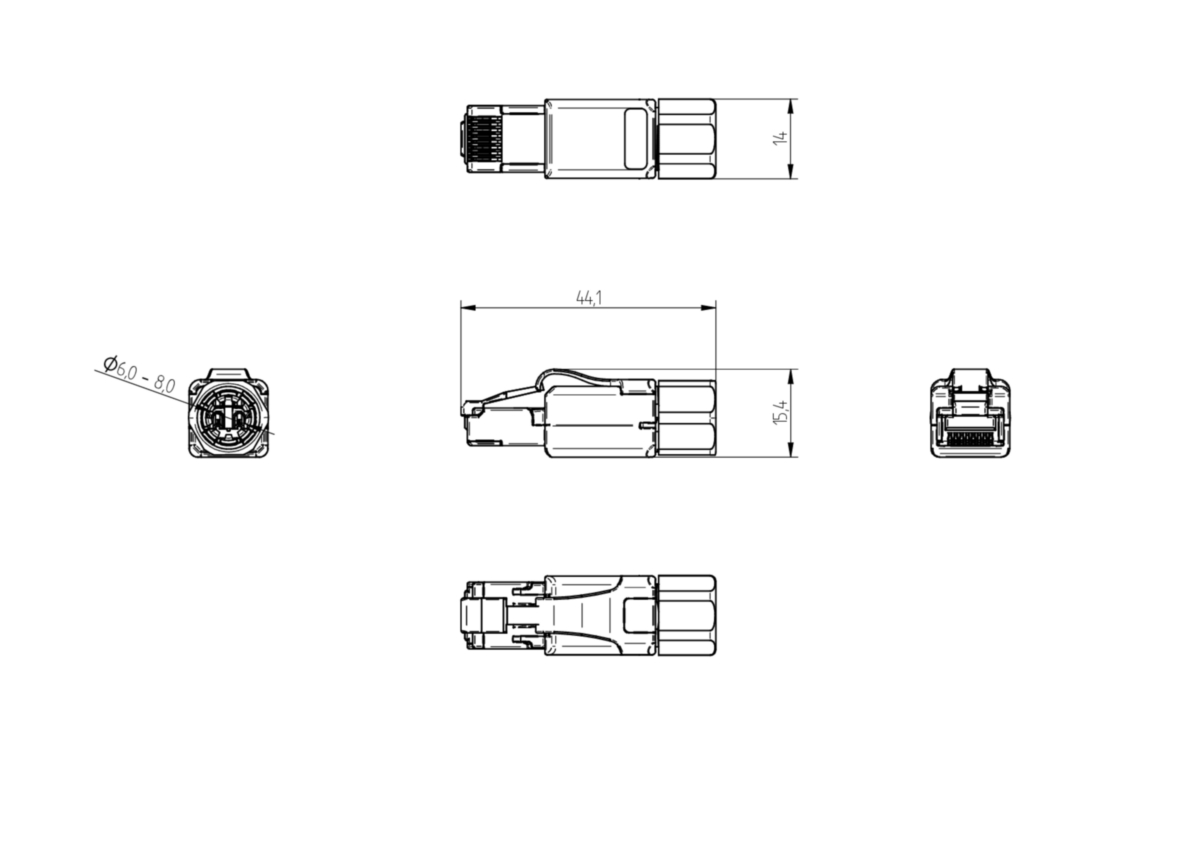

(4)RJ45 | Field Attachable | Male Plug | Straight | CAT 6 | Shielded

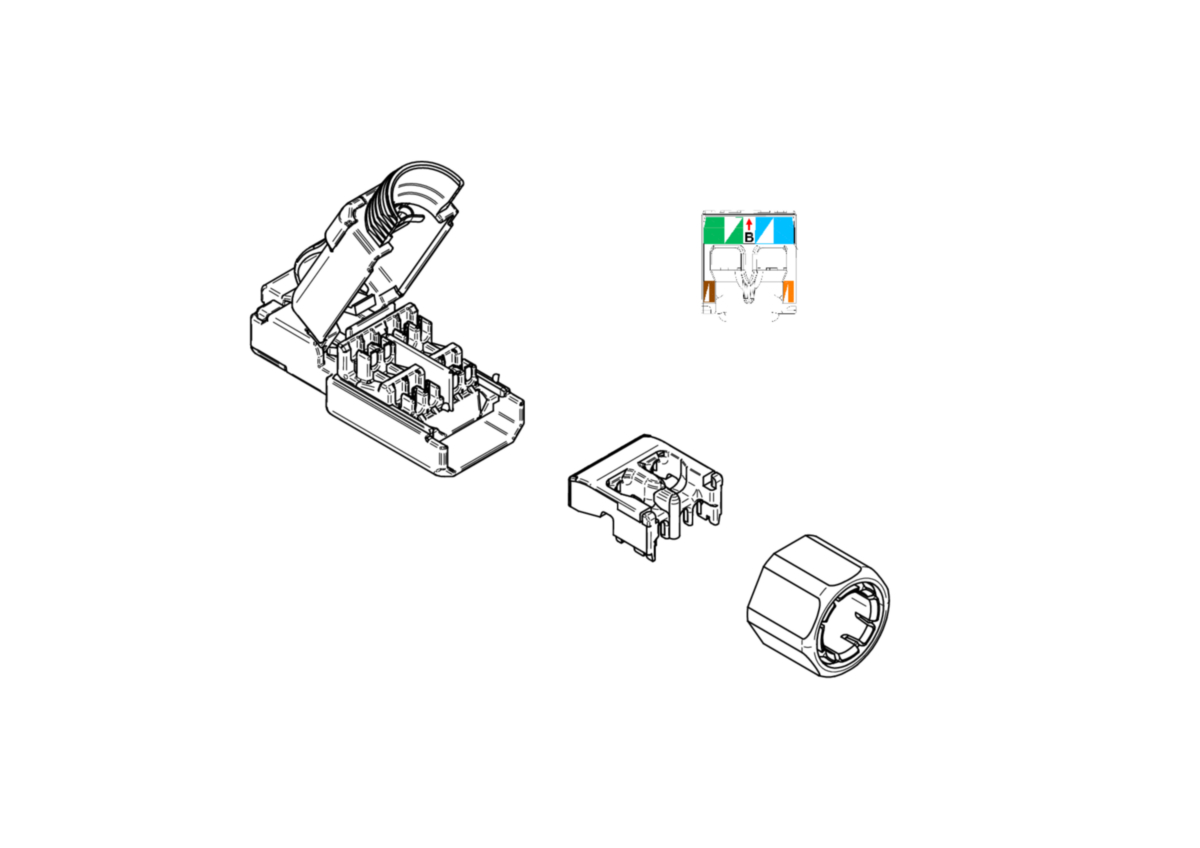

| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 |
|---|---|---|---|---|---|---|---|
| T568A Green White / T568B orange white | T568A green / T568B orange | T568A orange white / T568B green white | blue | blue white | T568 A orange / T568B green | brown white | brown |
| Product Family: | Data Connector |
| Side 1 Product Sub Family: | RJ45 Ethernet |
| Brand: | Belden |
| Connector Type: | Field attachable |
| Side 1 Type of Contact/Gender: | Spring Contact / Male |
| Connector Design: | Field Attachable | RJ45 | Straight |
| Number of Pins: | 8 |
| Coding, Side 1: | RJ45 |
| Shielding Type: | Shielded |
| Attachment Type: | Plug |
| Voltage Rating: | 63 V |
| Operating Voltage: | 60 V DC |
| Current Rating: | 1.5 A |
| Rated Current (UL)*: | 1.5 A |
| Rated Current (CSA)*: | 1.5 A |
| Data Transmission Type: | CAT 6 |
| Data Transmission Rate: | 1 Gbit/s |
| Insulation Resistance: | 500 MΩ |
| Mating Cycles: | ≥750 |
| Type of Connection: | IDC |
| Cross Section: | AWG 22-26 |
| Suitable Cables: | Outer cable diameter 6.00-8.00mm |
| Protection Degree / IP Rating**: | IP20 |
| Contact Base Material: | Phosphor Bronze alloy (CuSnP) |
| Side 1 Contact Plating: | Gold (Au) |
| Contact Bearer Color: | Black |
| Housing Material: | Zinc-alloy (Zn) |
| Housing Color: | Metallic |
| Cable Gland Material: | metal |
| Fastening Torque (Cable Gland): | hand-tight |
| UL-File: | E77103 |
| UL: | UL 1863; cURus |
| CSA: | Yes, via UL |
| RoHS Compliant: | Yes |
| Protection Degree / IP Rating Note: | IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked |
| Item # | Item Description |
|---|---|
| 935316002 | RJ45I-MSSV86-CAT6 |
