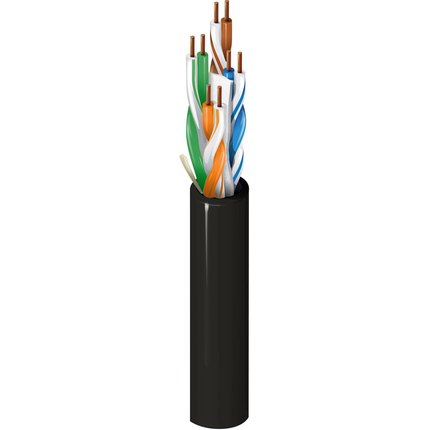

(4)RemoteIP Cable, 4 Pair, 22 AWG Solid Bare Copper Conductors, U/UTP, CMR/CMX-Outdoor, UV Resistant PVC Jacket
| Suitable Applications: | Indoor/Outdoor, Premise Horizontal Cable, Ethernet up to 1GBASE-T, Surveillance, PoE++, PoE+, PoE, Category 6 |
| Element | Size | No. of Pairs |
|---|---|---|
| Pair(s) | 22 AWG | 4 |
| Material | Color Code |
|---|---|
| PO - Polyolefin | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Separator | Material | Nom. Diameter |
|---|---|---|
| Dielectric Tape (Patented) | PVC - Polyvinyl Chloride | 0.30 in (7.6 mm) |
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 56.5 Ohm/km (17.2 Ohm/1000ft) | 330 pF/100m |
| Max. Delay | Nom. Velocity of Prop. |
|---|---|
| 537.6 ns/100m | 70% |
| UL Voltage Rating |
|---|
| 300 V (CMR, CMX-Outdoor) |
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 75°C | -40°C To +75°C | -25°C To +75°C | -40°C To +80°C |
| Installation Min. |
|---|
| 2.50 in (63.5 mm) |
| Max. Pull Tension: | 25 lbs (11 kg) |
| Bulk Cable Weight: | 35 lbs/1000ft (52 kg/km) |
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire |
| Flammability / Reaction to Fire: | UL1666 Riser |
| NEC / UL Compliance: | Article 800, Article 725, CMR-CMX, CMR, CMX-Outdoor |
| CEC / C(UL) Compliance: | CMR-CMX OUTDOOR |
| IEEE Compliance: | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance: | ANSI/NEMA WC-66 |
| Data Category: | Category 6 |
| TIA/EIA Compliance: | ANSI/TIA-568.2-D Category 6 |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | Electrical values are expected performance based on cable testing and representative performance within a typical system. Recommended for use with REVConnect Large Core, Part Number RVUECOGY. |
| Update and Revision: | Revision Number: 0.27 Revision Date: 10-17-2025 |
| Item # | Color | Putup Type | Length |
|---|---|---|---|
| RIPRXU 0101000 | Black | Reel | 1,000 ft |
