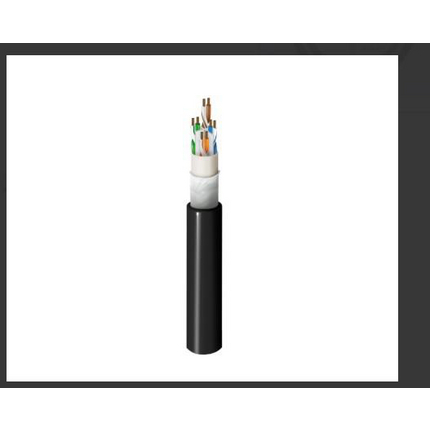

(4)RemoteIP Cable, OSP Rated, 4 Pair, 22 AWG Solid Bare Copper Conductors, U/UTP - Unshielded, Gel Free
| Suitable Applications: | Premise Horizontal Cable, Ethernet up to 1GBASE-T, Surveillance, PoE++, PoE+, PoE, Category 6 |
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 AWG | Solid | BC - Bare Copper | 4 |
| Color Code |
|---|
| White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
| Separator | Material | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.306 in (7.77 mm) | Yes | |
| Center Member (Patented X-Spline®) |
| Material | Nom. Diameter |
|---|---|
| PE - Polyethylene | 0.415 in (10.5 mm) |
| Overall Cable Diameter (Nominal): | 0.415 in (10.5 mm) |
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 56.5 Ohm/km (17.2 Ohm/1000ft) | 330 pF/100m |
| Max. Delay | Nom. Velocity of Prop. |
|---|---|
| 537.6 ns/100m | 68% |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating | Storage |
|---|---|---|
| 75°C | -20°C To +70°C | -40°C To +75°C |
| Installation Min. |
|---|
| 4.15 in (105 mm) |
| Max. Pull Tension: | 25 lbs (11 kg) |
| Bulk Cable Weight: | 87.5 lbs/1000ft (130 kg/km) |
| Environmental Suitability: | Outdoor |
| NEC / UL Compliance: | Article 800, Article 725 |
| IEEE Compliance: | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| NEMA Compliance: | ANSI/NEMA WC-66 |
| Data Category: | Category 6 |
| TIA/EIA Compliance: | ANSI/TIA-568.2-D Category 6 |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.18 Revision Date: 08-11-2025 |
| Item # | Color | Putup Type | Length |
|---|---|---|---|
| RIPDOU 0101000 | Black | Reel | 1,000 ft |
