(109)REVConnect 10GX Jacks are available in several colors and packaging quantities.
| Suitable Applications: | 10GX System, TIA Category 6A, ISO Class EA, 10GBASE-T |

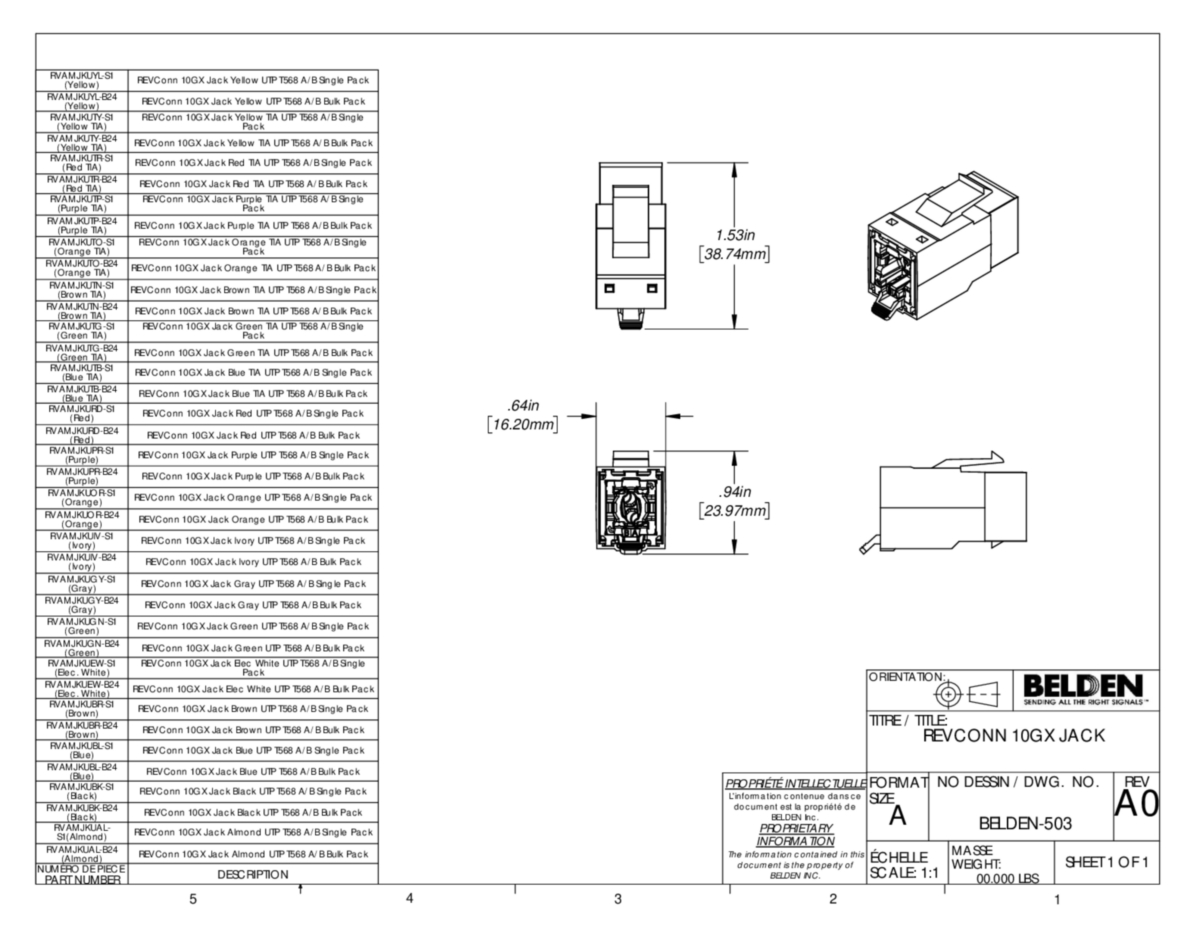

| Height: | 0.94 in |
| Width: | 0.64 in |
| Depth: | 1.337 in |
| Wiring Scheme: | T568A/B |
| Packaging: | Individually packaged in a plastic bag. |
| Weight: | 0.016 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Clad Flexible PCB, 50uin Gold plated contacts over Nickel | RJ45 |
| Rear Connection | Copper alloy, Gold plated contacts over Nickel | REVConnect |
| Connector Body | PBT glass reinforced UL94V-0 |
| Dielectric Strength: | 1,000V RMS @ 60 Hz for 1 minute (Signals to Ground) |
| Current Rating: | 1.300 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Termination Resistance: | 2.5 mOhm |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Footprint/Type: | REVConnect |
| Tool Compatibility: | REVConnect Termination Tool (p/n RVUTT01) |
| Plug /Jack Compatibility: | RJ45, RJ11 |
| Termination Front Connection: | Mated Connection |
| Termination Front Connection Durability: | 750 cycles |
| Termination Rear Connection: | Mated Connection |
| Termination Rear Connection Durability: | 20 cycles |
| Cable/Connector Retention: | 15 lbs. |
| Connector/Hardware Retention: | 20 lbs |
| Plug/Connector Retention: | 11.250 lbs |
| UL Rating: | UL94V-0 |
| Data Category: | Category 6A |
| TIA/EIA Compliance: | Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2 |
| IEEE Compliance: | Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
| Other Standards: | IEC 60603-7 |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| UL Flammability: | UL2043 Air Handling Spaces |
| Safety Listing: | c(UL)us Listed |
| Related Parts: | Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
| Item # | Color | Packaging |
|---|---|---|
| RVAMJKUAL-B24 | Almond | Bulk Pack (24) |
| RVAMJKUAL-S1 | Almond | Single Pack |
| RVAMJKUBK-B24 | Black | Bulk Pack (24) |
| RVAMJKUBL-B24 | Blue | Bulk Pack (24) |
| RVAMJKUBL-S1 | Blue | Single Pack |
| RVAMJKUBR-B24 | Brown | Bulk Pack (24) |
| RVAMJKUBR-S1 | Brown | Single Pack |
| RVAMJKUEW-B24 | Electric White | Bulk Pack (24) |
| RVAMJKUEW-S1 | Electric White | Single Pack |
| RVAMJKUGY-B24 | Gray | Bulk Pack (24) |
| RVAMJKUGY-S1 | Gray | Single Pack |
| RVAMJKUGN-B24 | Green | Bulk Pack (24) |
| RVAMJKUGN-S1 | Green | Single Pack |
| RVAMJKUIV-B24 | Ivory | Bulk Pack (24) |
| RVAMJKUIV-S1 | Ivory | Single Pack |
| RVAMJKUOR-B24 | Orange | Bulk Pack (24) |
| RVAMJKUOR-S1 | Orange | Single Pack |
| RVAMJKUPR-B24 | Purple | Bulk Pack (24) |
| RVAMJKUPR-S1 | Purple | Single Pack |
| RVAMJKURD-B24 | Red | Bulk Pack (24) |
| RVAMJKURD-S1 | Red | Single Pack |
| RVAMJKUYL-B24 | Yellow | Bulk Pack (24) |
| RVAMJKUYL-S1 | Yellow | Single Pack |
| Included Parts: | 1 Cat 6A REVConnect Jack; 1 REVConnect Cable Manager and Cap; 1 Installation Guide |
| Notes: | Please see Installation Guide PX106434. |
| Update and Revision: | Revision Number: 0.341 Revision Date: 02-12-2024 |
