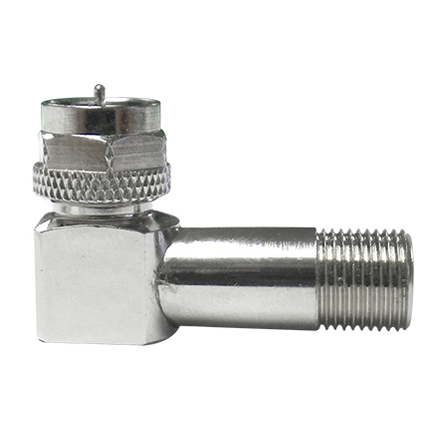

(4)RIGHT ANGLE ADAPTER, SIGNALTIGHT, FITS ANY EX SERIES F CONNECTOR Fits Any F Connector, Sold as Packages of 1
| Suitable Applications: | Adapter, Drop, Premises, CCTV, Security Cameras, Video |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Operating Temperature Range: | -40C to 60C |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | No |
| Patent: | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| Notes: | Meets SCTE IPS-TP-013 when paired with PPC approved products (Red-dye moisture migration test) |
| Update and Revision: | Revision Number: 0.38 Revision Date: 10-01-2025 |
