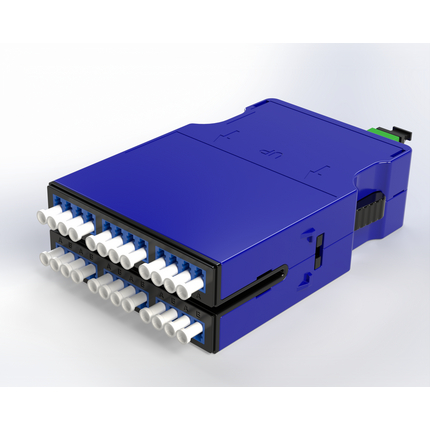

(4)PatchPro 12-Port (24-Fiber) LC OS2-UPC iPLM Ready MPO-APC LC Double Cassette STD Polarity
| Environmental Space: | Indoor |
| Suitable Applications: | Panel for Intelligent Ready (RFID based) Patching. Support current and future applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM |
| Weight: | 330 g |
| Overall Height: | 38.0 mm |
| Overall Width: | 95.4 mm |
| Overall Length: | 146.7 mm |
| Depth: | 146.7 mm |
| Max Capacity: | 12 Duplex LC Ports |
| Maximum Insertion Loss: | 0.6 dB |
| Connector System Compatibility: | LC |
| Operating Temperature Range: | -10°C To +60°C |
| Installation Temperature Range: | -10°C To +60°C |
| Description | Material | Type |
|---|---|---|
| LC Double Cassette | CE & RoHS compliant, UL 94 V-1 | Cassette Housing |
| LC Adapter | Blue OS2 UPC | 24 x LC Adapter |
| MTP Adapter | Green OS2 APC | 2 x MTP Adapter |
| Fiber Patch Cord | OS2 Singlemode Fiber (IEC 60793-2-50 B6_a1) | 2 x LC-MTP patch cords |
| TIA/EIA Compliance: | TIA/EIA-598 |
| Related Parts: | This cassette is compatible with: PP-1U-4DC empty panel PP range patch cords PPFOUK-D RFID antenna |
| Packaging: | Individually packaged in a box |
| Update and Revision: | Revision Number: 0.17 Revision Date: 10-08-2025 |
