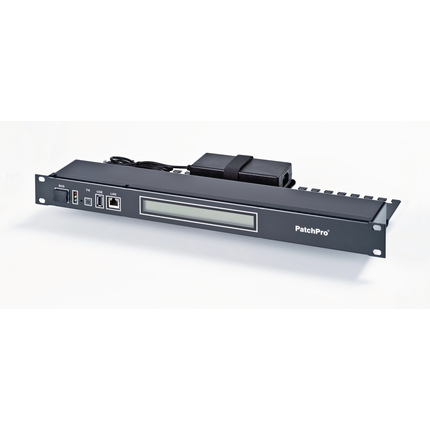

(109)PatchPro 19"RACK MNG, LC DISPLAY(2x40CH), 30 PP CONNECTED MAX, BLACK, ROHS
| Suitable Applications: | Horizontal and building cabling for Intelligent (RFID based) Patching. Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM |
| Height: | 44.5 mm |
| Width: | 483 mm |
| Depth: | 170 mm |
| Packaging: | Individually packaged in a box. |
| Description | Material | Color |
|---|---|---|
| Front Plate | Powder Coated Steel | Black |
| Back Plate | Galvanized Steel | Metal |
| Interface | USB, LAN, Bus | Black |
| Max Capacity: | 30 Panels |
| Current Rating: | 1.500 A |
| Storage Temperature Range: | -20°C To +85°C |
| Operating Temperature Range: | 0°C To +40°C |
| TIA/EIA Compliance: | ISO/IEC 11801-1:2017; TIA 568-C.3 |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | PatchPro Connectivity, Upgrade RFID kit |
| Item # | Color | Packaging |
|---|---|---|
| PPIRRC | Black | Individually packaged in a box. |
| Update and Revision: | Revision Number: 0.50 Revision Date: 02-27-2024 |
