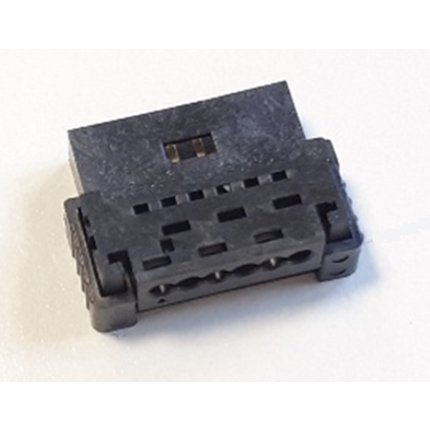

(4)PPRO Bus Cable Connector Type 3 Color Black for extension
| Suitable Applications: | Horizontal and building cabling for Intelligent (RFID based) Patching. Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM |
| Packaging: | 10 units packaged in a plastic bag |
| Description | Material | Color |
|---|---|---|
| Bus connector, 6 pin, male, 180°, black, 1.27mm pitch (AWG26/7) | LCP GF30 | Black |
| Centerline (Pitch): 1.27mm |
| Storage Temperature Range: | -55°C To +150°C |
| Operating Temperature Range: | -55°C To +150°C |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| Related Parts: | PatchPro Rack manager, Upgrade RFID kit |
| Update and Revision: | Revision Number: 0.19 Revision Date: 05-15-2025 |
