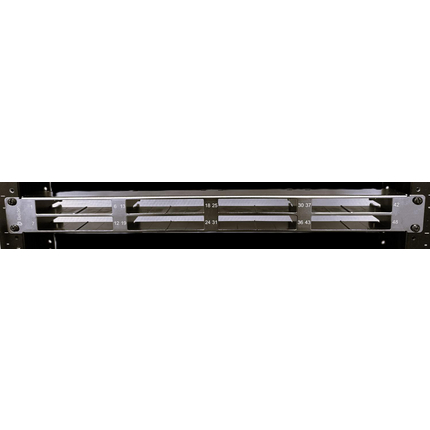

(4)96 Fiber System Empty Panel 1U Up to 4 LC Double Cassettes
| Max Capacity: | 4 LC Double Cassette, each LC Double Casette has 24 Fiber |
| Operating Temperature Range: | -40 °C to +85 °C |
| Storage Temperature Range: | -50 °C to +100 °C |
| Description | Material | Color | Type |
|---|---|---|---|
| Cold-rolled steel with nickel plating for corrosion resistance and strength | SPCC Steel (1.5 mm) | Metallic Silver (Nickel) | Patch Panel Body |
| Flame-retardant ABS plastic (UL 94V-0), lightweight and impact-resistant | ABS 94V-0 | Black | Port Bracket |
| Standard rack-mounting screws for 19” installation | Steel, Zinc plated | Silver | Mounting Screws |
| Belden logo printed on front panel | Ink/Screen print | White | Front Logo/Marking |
| Included Parts: | a. Port numbering label card x 8 b. Head machine screw x 4 c. Installation Guide x 1 |
| Related Parts: | PPLSMOM, PPLAMPOM, PPL3MPOM, PPL4MPOM, PPL5MPOM PPLSMPOM-ALT, PPLAMPOM-ALT, PPL3MPOM-ALT, PPL4MPOM-ALT, PPL5MPOM-ALT PPFOUK-D PP range fiber patch cords |
| Packaging: | 1 set per package |
| Update and Revision: | Revision Number: 0.15 Revision Date: 09-30-2025 |
