(4)| Suitable Applications: | Power cords for Horizontal PDU's from the EMEA Performance Line Series, having C20 inputs. Other electrical equipment with C14 or C20 inputs. |
| Color: | Black |
| EU CE Mark: | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Packaging: | Individually packaged in a plastic bag |

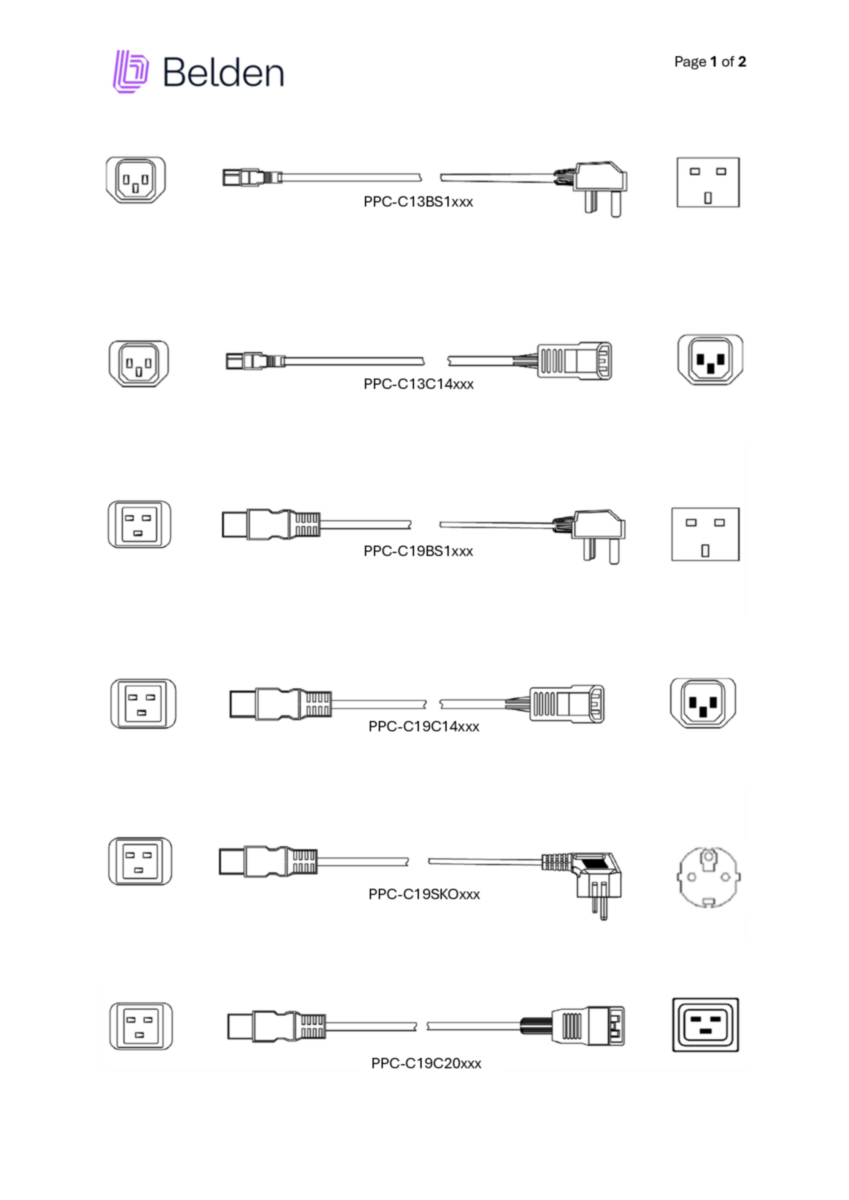

| Item # | Receptacle | Plug | Voltage Rating | Current Rating | Cord Length | Cable Type |
|---|---|---|---|---|---|---|
| PPC-C13C14VV3 | IEC60320 C13 | IEC 60320 C14 | 230 V | 10 A | 3 m | 1.5mm² H05VV-F |
| PPC-C19C14VV2 | IEC60320 C19 | IEC 60320 C14 | 230 V | 10 A | 2 m | 1.5mm² H05VV-F |
| PPC-C19C20VV2 | IEC60320 C19 | IEC 60320 C20 | 230 V | 16 A | 2 m | 1.5mm² H05VV-F |
| PPC-C19SKOVV2 | IEC60320 C19 | Schuko (Type F) | 230 V | 16 A | 2 m | 1.5mm² H05VV-F |
| PPC-C13BS1VV2 | IEC60320 C13 | BS 1363P | 230 V | 10 A | 2 m | 1.5mm² H05VV-F |
| PPC-C13BS1VV3 | IEC60320 C13 | BS 1363P | 230 V | 10 A | 3 m | 1.5mm² H05VV-F |
| PPC-C19BS1VV2 | IEC60320 C19 | BS 1363P | 230 V | 13 A | 2 m | 1.5mm² H05VV-F |
| Update and Revision: | Revision Number: 0.77 Revision Date: 04-24-2025 |
