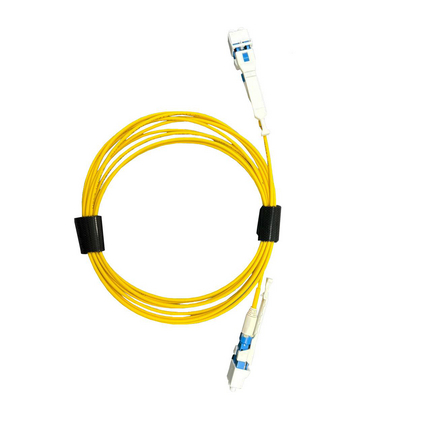

(4)FiberExpress Fiber Patch Cord, OS2, LC Duplex Uniboot -LC Duplex Uniboot, LSZH, Round 2.0mm, A/B, 3M,Yellow Jacket
| Suitable Applications: | Data Centers, Main Equipment Rooms,Telecommunications Rooms and Work Area |
| Fiber Type: | OS2 |
| Fiber Core Diameter: | 50 µm |
| Fiber Count: | 2 |
| Description | Type | Boot Color |
|---|---|---|
| Connector A (Inside End) | LC Duplex UHD Uniboot | White |
| Connector B (Outside End) | LC Duplex UHD Uniboot | White |
| Jacket Color |
|---|
| Yellow |
| Polarity Identification: | A/B |
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Connector A (Inside End) | LC Duplex UHD Uniboot | 0.3 dB | 55 dB |
| Connector B (Outside End) | LC Duplex UHD Uniboot | 0.3 dB | 55 dB |
| Crush Resistance: | 1000N/100mm(Short-Term),200N/100mm(Long-Term) |
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| TIA/EIA Compliance: | TIA 604, TIA-568.3-D |
| ISO/IEC Compliance: | IEC 60794-2-50, IEC 61034-2 - Smoke Density Min Transmittance = IEC 61034 |
| European Halogen Free Standards: | IEC 60754-1 - Halogen Amount = IEC 60754-1 |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2) |
| Related Parts: | FiberExpress Adapter Strips, FiberExpress Manager Modules and FiberExpress Ultra Frames and Cassettes, Workstation Outlets |
| Notes: | Packaging: Individually packaged in a clear plastic bag |
| Update and Revision: | Revision Number: 0.12 Revision Date: 07-17-2025 |
