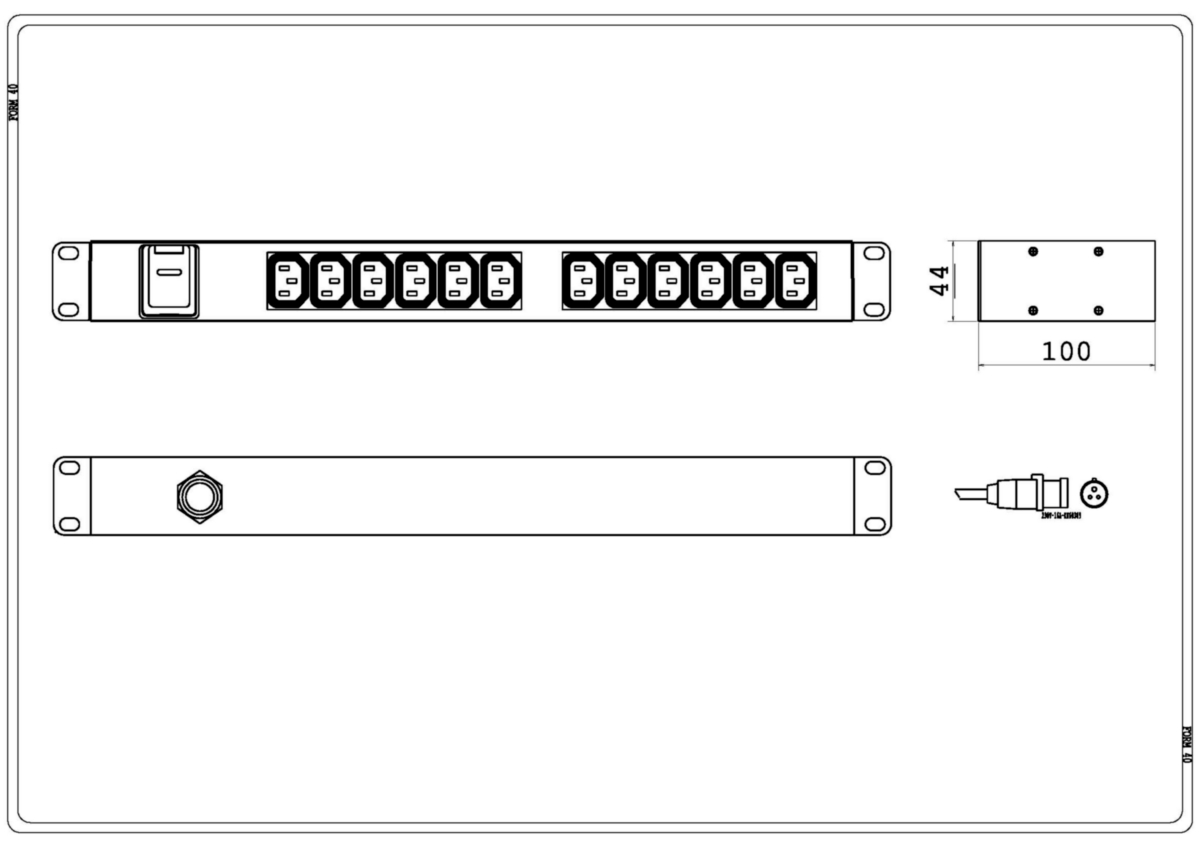

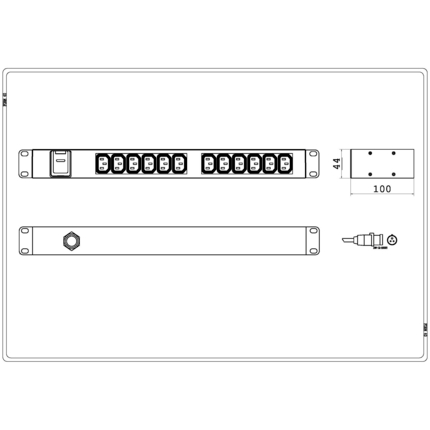

(109)PDU, Basic Standard, 16A, 230V, 3.6kW, Horizontal, (12) IEC C13, 3m power cord with 2P+E (IP44)
| Environmental Space: | Indoor |
| Power Distribution Type: | Basic Standard |
| Height: | 44 mm |
| Width: | 435 mm |
| Depth: | 100 mm |
| Input voltage: | 230 V |
| Rated Current*: | 16 A |
| Input frequency: | 50/60 Hz |
| VA per Input (Load Capacity): | 3.6 kW |
| On-Off Switch: | Yes |
| Plug Type: | IEC60309 2P + E, 16A, 250V, Splashproof IP44 |
| Quantity Of Inputs: | 1 |
| Receptacle 1 Type: | IEC C13 |
| Receptacle 1 Quantity: | 12 |
| Receptacle 1 Style: | Banks of 6 |
| Receptacle 1 Voltage per Receptacle: | 230 V |
| Receptacle 1 Maximum Output per Receptacle/Socket: | 10 A per receptacle bank |
| Cord Length: | 3 m |
| Type of Cordage: | 2.5mm² H07RN-F |
| Mounting: | Horizontal |
| Ambient Temperature (operation), max: | 45 |
| Finish: | Powder coat |
| Material: | Steel |
| Weight: | 1.81 kg |
| EU CE Mark: | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| CENELEC Compliance: | EN 55032, EN 55024 |
| Part Number: | PDU-10448 |
| Packaging: | Individually boxed |
| Item # | Color |
|---|---|
| PDU-10448 | Black |
| Update and Revision: | Revision Number: 0.33 Revision Date: 03-30-2023 |
