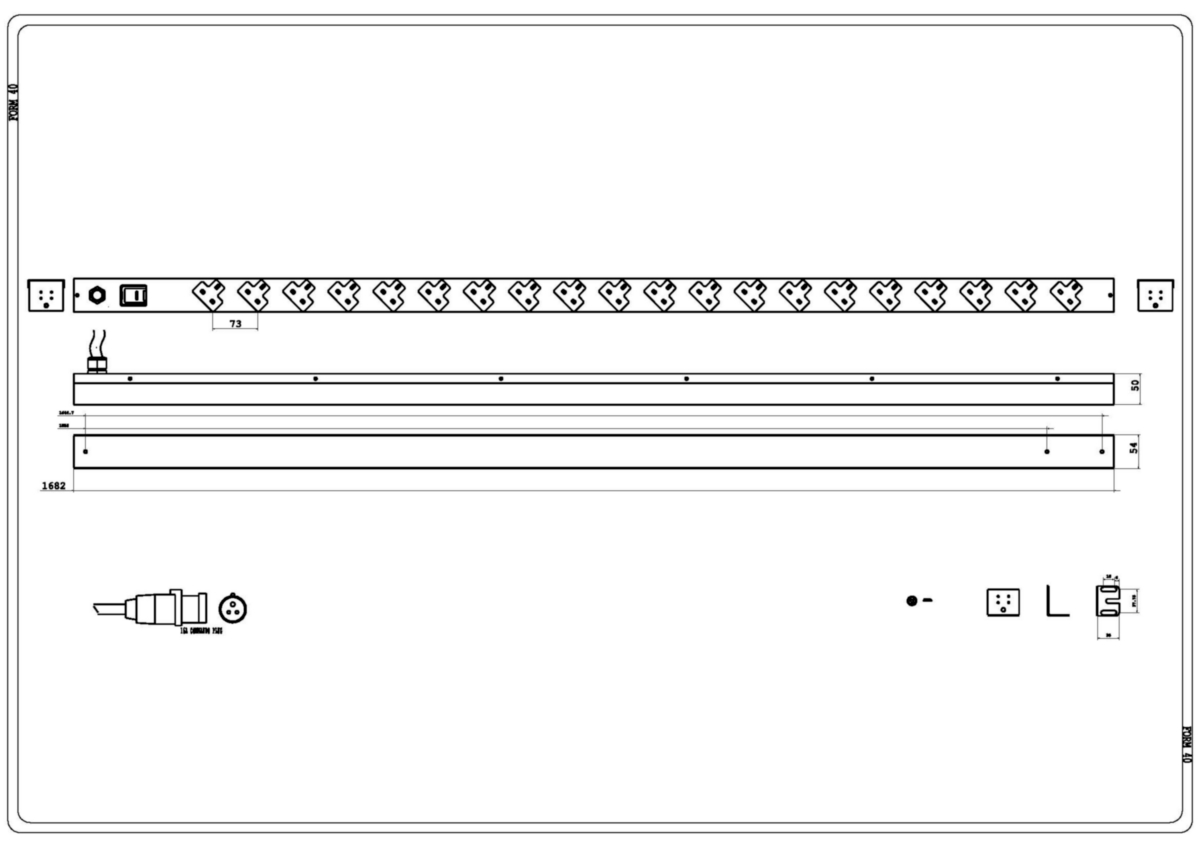

(109)PDU, Basic Standard, 16A, 230V, 3.6kW, Vertical, (20) BS1363, 3m power cord with 2P+E (IP44)
| Environmental Space: | Indoor |
| Power Distribution Type: | Basic Standard |
| Width: | 54 mm |
| Depth: | 50 mm |
| Length: | 1683 mm |
| Input voltage: | 230 V |
| Rated Current*: | 16 A |
| Input frequency: | 50/60 Hz |
| VA per Input (Load Capacity): | 3.6 kW |
| On-Off Switch: | Yes |
| Plug Type: | IEC60309 2P + E, 16A, 250V, Splashproof IP44 |
| Quantity Of Inputs: | 1 |
| Receptacle 1 Type: | BS1363 |
| Receptacle 1 Quantity: | 20 |
| Receptacle 1 Style: | Individual - Right Hand Angled |
| Receptacle 1 Voltage per Receptacle: | 230 V |
| Receptacle 1 Maximum Output per Receptacle/Socket: | 13 A |
| Cord Length: | 3 m |
| Type of Cordage: | 2.5mm² PVC |
| Mounting: | Vertical |
| Toolless Mounting Hardware Center to Center Spacing: | 1556mm and 1645mm |
| Ambient Temperature (operation), max: | 45 |
| Finish: | Powder coat |
| Material: | Steel |
| Weight: | 6.35 kg |
| EU CE Mark: | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Compliant |
| CENELEC Compliance: | EN 55032, EN 55024 |
| Part Number: | value |
| Packaging: | Individually boxed |
| Item # | Color |
|---|---|
| PDU-10442 | Black |
| Update and Revision: | Revision Number: 0.44 Revision Date: 03-30-2023 |
