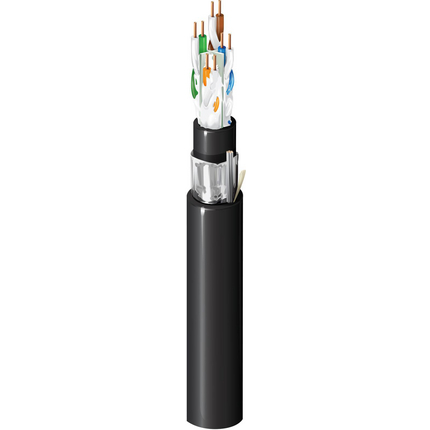

OSP6AF - Category 6A Outside Plant F/UTP Cable
Networking & Data Cable
(561)Industrial Ethernet Cable
(92)Enterprise Category Cable
(184)Industrial Protocol / Data Bus Cable
(283)Audio Cable
(529)Digital
(105)Analog
(145)Microphone
(44)Nurse Call
(23)Audio Over Internet Protocol (IP)
(7)Speaker & Control
(260)Video Cable
(397)75 Ohm SDI Coax
(147)Camera Cable
(60)CATV & Satelite
(100)CCTV & Security
(39)RGB Cable
(57)Video Over Internet Protocol (IP) Cable
(10)Coax & Triax Cable
(548)50 Ohm Transmission Cable
(89)75 Ohm SDI Coax
(138)CATV & Satelite Cable
(92)Triax Cable
(28)DS3 & DS4 Cable
(38)Conformable Cable
(12)Mil-Spec Cable
(5)CCTV & Security Cable
(36)Computer and Instrumentation Cable
(11)Multi-Media Cable
(45)Fiber Cable
(11277)Indoor Fiber Cable
(1458)Indoor/Outdoor Fiber Cable
(5422)Outdoor Fiber Cable
(4054)SMPTE Cable
(13)Tactical Fiber Cable
(355)Flexible Automation Cable
(107)300V (PLTC) & 600V (TC-ER) Control Cable
(82)Flex Data Cable
(7)Vision Systems
(5)Flex VFD Cable
(13)Tray Cable
(1045)Instrumentation Cable
(333)UL 300V PLTC/PLTC-ER Cable
(180)UL 600V TC/TC-ER Pairs/Triads
(118)UL Thermocouple
(35)CSA ACIC Cable
(35)Control / Power Cable
(729)VFD Cable
(135)Digital Electricity
(45)Hybrid Fiber-Copper Cable
(198)Safety, Sound, & Security Cable
(557)Audio, Sound, & Control Cable
(195)Access Control Cable
(21)Fire Alarm Cable
(72)Nurse Call
(15)Security & Alarm Cable
(203)Surveillance Cable
(51)Connectors & Outlets
(2414)Modular Couplers
(11)Modular Plugs
(28)Receptacles
(7)Coax Connectors
(82)12 GHz BNC Connectors
(10)6 GHz BNC Connectors
(17)ProSNS Connectors
(37)Double Bubble Connectors
(18)Multi Media Modules
(15)Copper Connector Accessories
(11)Fiber Connectors
(46)Mechanical Connectors
(20)Fiber Connector Accessories
(8)Adapters
(2)Fusion Splice-On Connectors
(16)Valve Connectors
(537)Type A
(423)Type A Field Attachables
(298)Type A Receptacles
(30)Type A Single-Ended Cordsets
(82)Type A Accessories
(13)Type B
(71)Type C
(43)Cross Connect Systems
(16)Category 6A Cross Connect Systems
(3)Category 6 Cross Connect Systems
(7)Category 5E Cross Connect Systems
(6)Power Connectors
(650)M12 Power
(281)ST Series
(59)CA Series
(12)7/8" Circular Connectors
(135)M23 Circular Connectors
(47)Mini Power
(58)Receptacles
(12)Tees, Reducers & Adapters
(10)Single-Ended Cordsets
(16)Double-Ended Cordsets
(20)G-Series
(58)Sensor Actuator Connectors
(825)Workstation Outlets
(71)KeyConnect Outlets
(12)MDVO-Style Outlets
(10)MediaFlex System
(17)Multi Media Modules
(17)Workstation Consolidation
(15)Data Connectors
(108)Assemblies & Cordsets
(167)Fiber Patch Cords
(1)Double-Ended Cordsets
(65)Pigtails
(15)Pre-Terminated Assemblies
(49)AV Assemblies
(10)Patch Panels & Components
(383)Fiber Patch Panels
(42)Preloaded Coupler Patch Panels
(2)Modular (Empty) Panels
(4)Fiber Cassettes
(145)Adapter Frames
(63)Adapter Strips
(13)Fiber Wall Mounts
(6)Patch Panel Accessories
(35)Industrial Networking
(992)RS20/30
(14)SPIDER Fast/Gigabit Switches
(85)Managed Switches
(306)BOBCAT
(95)GECKO Switches
(4)MSP – Modular Gigabit Switches
(21)MSP – The Modular Gigabit Switches (Layer 2/3)
(12)MSM - Configurable Media Modules for MSP Switches
(9)MICE - Modular Switches
(31)RSB20 Basic Switches
(36)RS20/30/40 Switches
(57)RSR Switches
(18)RED25 Switches
(4)RSP/RSPL/RSPS/RSPE Switches
(40)Rack Mount Switches
(106)DRAGON MACH4000
(15)GREYHOUND 1020/1030
(11)GREYHOUND 1040
(23)MACH1020/1030
(3)MACH1040
(4)MACH4000
(21)MACH100
(29)IP65/IP67 Switches & Routers
(56)Embedded Ethernet
(4)Routers & WAN
(1)Security & Firewalls
(22)MPLS Backbone Switches
(87)Wireless
(32)Cellular Routers
(10)Wireless LAN Devices
(11)BAT450-F WLAN Access Points
(2)BAT867 - Industrial Wireless Access Points
(3)BAT-C2
(5)OpenBAT-R / -F
(1)Wireless LAN Controller
(2)Accessories
(9)Software
(86)Secure Remote Access
(8)Network Management
(17)Software Tools
(4)Device Software
(57)Accessories
(152)Transceivers
(64)Fast Ethernet SFP Transceiver
(14)Fast Ethernet Bi-Directional SFP Transceivers
(6)Gigabit Ethernet SFP Transceiver
(15)Gigabit Ethernet Bi-Directional SFP Transceiver
(12)2.5 Gigabit Ethernet SFP Transceiver
(5)10 Gigabit Ethernet XFP and SFP+ Transceivers
(11)DAC cable
(1)Auto-Configuration Adapter – ACA
(11)Connectors
(5)Mounting Accessories
(19)MIPP
(6)Miscellaneous Accessories
(12)Power Supplies and Cables
(18)Power over Ethernet (PoE) Injector
(3)Serial to Ethernet converters
(1)Terminal Cables
(6)Wireless Accessories
(8)FiberINTERFACES
(47)Fieldbus Repeater
(31)Geniusbus Repeater
(2)Modbus Plus Repeater
(2)Profibus Repeater
(24)Universal Fieldbus Repeater
(3)Fiber Converters
(6)OptoQuick Components
(7)Optical Bypass Relay OBR40
(3)Racks & Cabinets
(353)Server Cabinets
(3)Wall Mount Cabinets
(11)Seismic Cabinets
(10)Consolidation-MDU Enclosures
(2)Cabinet Individual Component Ordering Options
(20)Zone Enclosures
(3)Racks
(26)2 Post Rack
(12)Aluminum Knockdown
(1)Swing Rack
(1)Steel Knockdown
(4)Steel Welded
(2)Value Series Rack Kit
(4)4 Post Rack
(3)Seismic Rack
(3)Wall Mount Rack
(8)Heat Containment
(8)Security & Access Control
(4)Cable Management
(32)Cable Runways
(200)Rack & Cabinets Accessories
(32)Shelves
(1)Cabinet Accessories
(21)Lacing Accessories
(6)Lacing/PDU Mounting Panels
(1)Bottom Seal Skirts
(2)Cabinet Caster Kit
(1)Frame & Rail Brush Kits
(3)Front to Rear Cable Manager
(1)Top Cable Trough
(1)Vertical Finger Managers
(2)Filler (Blanking) Panels
(3)Grounding & Bonding
(3)Mounting Hardware
(1)PDU Accessories
(1)Zero U Vertical Patch Panel
(2)Termination Tools & Accessories
(48)Fiber Splicers & Tool Kits
(9)Label & Identification
(7)Fanout & Breakout Kits
(2)Outlet & Hardware Accessories
(17)I/O Systems
(79)Ethernet I/O Modules
(34)IO-Link Masters and Devices
(33)Fieldbus I/O Modules
(10)CAT6A (500 MHz), 4 Pair, F/UTP-Foil Shielded, Outdoor OSP, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented X-Spline, Gel-Filled, UV resistant LLDPE Inner Jacket, Overall Beldfoil® Shield with Drain Wire, Ripcord, UV Resistance LLDPE Outer Jacket
| Suitable Applications: | OSP-Outside Plant, 10 Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, PoE, PoE+ |
| Patent: | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents. |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Material |
|---|
| PO - Polyolefin |
| Bonded-Pair: | N/A |
| Number | Color |
|---|---|
| 1 | White & Blue |
| 2 | White & Orange |
| 3 | White & Green |
| 4 | White & Brown |
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PE - Polyethylene | 0.26 in | No |
| Water Penetration: | GR 421‐CORE para. 4.3.5.1, ANSI/ICEA S‐107‐704 para. 8.2.1, ANSI/ICEA S-99-689 |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 26 |
| Material | Nominal Diameter | Ripcord |
|---|---|---|
| PE - Polyethylene | 0.360 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance | Max DCR Unbalanced Between Pairs [%] |
|---|---|---|
| 82 Ohm/km | 3.0 % | 5.0 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 45 pF/100m | 17 pF/ft |
| Frequency [MHz] | Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 64% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. PSANEXT | Min. PSAACRF | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.1 dB/100m | 74.3 dB | 72.3 dB | 72.2 dB | 70.2 dB | 67.8 dB | 64.8 dB | 20.0 dB | 105 +/- 10 | 115 +/- 15 | 67.0 dB | 67.0 dB | 40.0 dB | 35.0 dB |
| 4 MHz | 3.8 dB/100m | 65.3 dB | 63.3 dB | 61.5 dB | 59.5 dB | 55.8 dB | 52.8 dB | 23.0 dB | 105 +/- 10 | 100 +/- 7 | 67.0 dB | 66.2 dB | 40.0 dB | 23.0 dB |
| 8 MHz | 5.3 dB/100m | 60.8 dB | 58.8 dB | 55.4 dB | 53.4 dB | 49.7 dB | 46.7 dB | 24.5 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 60.1 dB | 40.0 dB | 16.9 dB |
| 10 MHz | 5.9 dB/100m | 59.3 dB | 57.3 dB | 53.4 dB | 51.4 dB | 47.8 dB | 44.8 dB | 25.0 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 58.2 dB | 40.0 dB | 15.0 dB |
| 16 MHz | 7.5 dB/100m | 56.2 dB | 54.2 dB | 48.8 dB | 46.8 dB | 43.7 dB | 40.7 dB | 25.0 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 54.1 dB | 38.0 dB | 10.9 dB |
| 20 MHz | 8.4 dB/100m | 54.8 dB | 52.8 dB | 46.4 dB | 44.4 dB | 41.8 dB | 38.8 dB | 25.0 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 52.2 dB | 37.0 dB | 9.0 dB |
| 25 MHz | 9.4 dB/100m | 53.3 dB | 51.3 dB | 44.0 dB | 42.0 dB | 39.8 dB | 36.8 dB | 24.3 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 50.2 dB | 36.0 dB | 7.0 dB |
| 31.25 MHz | 10.5 dB/100m | 51.9 dB | 49.9 dB | 41.4 dB | 39.4 dB | 37.9 dB | 34.9 dB | 23.6 dB | 100 +/- 22 | 100 +/- 7 | 67.0 dB | 48.3 dB | 35.1 dB | 5.1 dB |
| 62.5 MHz | 15.0 dB/100m | 47.4 dB | 45.4 dB | 32.4 dB | 30.4 dB | 31.9 dB | 28.9 dB | 21.5 dB | 100 +/- 22 | 100 +/- 7 | 65.6 dB | 42.3 dB | 32.0 dB | |
| 100 MHz | 19.1 dB/100m | 44.3 dB | 42.3 dB | 25.2 dB | 23.2 dB | 27.8 dB | 24.8 dB | 20.1 dB | 100 +/- 22 | 100 +/- 7 | 62.5 dB | 38.2 dB | 30.0 dB | |
| 200 MHz | 27.6 dB/100m | 39.8 dB | 37.8 dB | 12.2 dB | 10.2 dB | 21.8 dB | 18.8 dB | 18.0 dB | 100 +/- 22 | 100 +/- 7 | 58.0 dB | 32.2 dB | 27.0 dB | |
| 250 MHz | 31.1 dB/100m | 38.3 dB | 36.3 dB | 7.3 dB | 5.3 dB | 19.8 dB | 16.8 dB | 17.3 dB | 100 +/- 32 | 100 +/- 7 | 56.5 dB | 30.2 dB | 26.0 dB | |
| 300 MHz | 34.3 dB/100m | 37.1 dB | 35.1 dB | 2.9 dB | 0.9 dB | 18.3 dB | 15.3 dB | 16.8 dB | 100 +/- 32 | 100 +/- 7 | 55.3 dB | 28.7 dB | 25.2 dB | |
| 350 MHz | 37.2 dB/100m | 36.1 dB | 34.1 dB | 16.9 dB | 13.9 dB | 16.3 dB | 100 +/- 32 | 100 +/- 7 | 54.3 dB | 27.3 dB | 24.6 dB | |||
| 400 MHz | 40.1 dB/100m | 35.3 dB | 33.3 dB | 15.8 dB | 12.8 dB | 15.9 dB | 100 +/- 32 | 100 +/- 7 | 53.5 dB | 26.2 dB | 24.0 dB | |||
| 450 MHz | 42.7 dB/100m | 34.5 dB | 32.5 dB | 14.7 dB | 11.7 dB | 15.5 dB | 100 +/- 32 | 100 +/- 7 | 52.7 dB | 25.1 dB | 23.5 dB | |||
| 500 MHz | 45.3 dB/100m | 33.8 dB | 31.8 dB | 13.8 dB | 10.8 dB | 15.2 dB | 100 +/- 32 | 100 +/- 7 | 52.0 dB | 24.2 dB | 23.0 dB |
| Segregation class according EN50174-2: | a |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Installation Temp Range: | -40°C To +60°C |
| Non-UL Temp Rating: | +75°C |
| Storage Temp Range: | -40°C To +75°C |
| Operating Temp Range: | -40°C To +75°C |
| Cold Bend Test: | -40°C Compliance Per UL 1581 |
| Bulk Cable Weight: | 49 lbs/1000ft |
| Max. Pull Tension: | 25 lbs |
| Min. Bend Radius During Installation: | 3.75 in |
| Min. Bend Radius/Minor Axis: | 3.0 in |
| NEC/(UL) Compliance: | N/A |
| ISO/IEC Compliance: | 11801 ed 2.2 (2011) Class EA |
| Data Category: | Category 6A |
| ANSI Compliance: | S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A |
| TIA/EIA Compliance: | ANSI/TIA 568-C.2 Category 6A |
| IEEE Compliance: | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Other Specification: | Outdoor Use ANSI/ICEA S-56-434, Broadband Outdoor Use ANSI/ICEA S-99-689, Verified Channel/Category 6A |
| Environmental Space: | Outdoor |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | Yes |
| EU CE Mark: | No |
| EU REACH SVHC Compliance (yyyy-mm-dd): | 2017-07-10 |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2016-03-02 |
| Suitability - Aerial: | Yes - When supported by messenger wire |
| Suitability - Burial: | Yes - Engineered burial only |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | No |
| Suitability - Non-Halogenated: | No |
| Suitability - Oil Resistance: | No |
| Suitability - Outdoor: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| OSP6AF 0101000 | Black | Reel | 1,000 ft | 612825378839 |
| Notes: | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Not Suitable for Direct Burial. Belden recommends using an entrance demarcation point when transitioning inside buildings with gel-filled OSP cables due to the cable design containing gel specific for wet outdoor environments. The suggested transition point is the REVConnect core coupler, part number RVACPKUBK-S1. |
| Update and Revision: | Revision Number: 0.224 Revision Date: 09-08-2021 |
