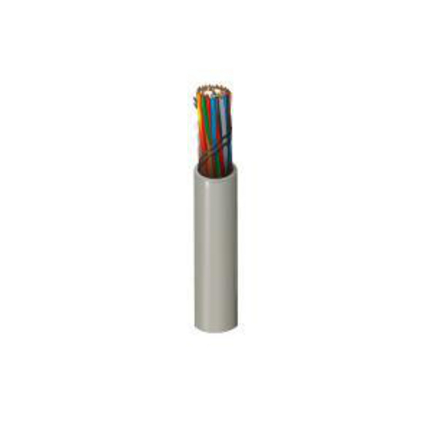

(109)Category 3 Premise Horizontal Cable (16MHz), 25-pair, 24 AWG, HDPE insulation, U/UTP, LSZH jacket
| Suitable Applications: | Backbone cable; Support current and future Category 3 applications, suitable for outdoor use |
| Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|
| 24 AWG | Solid | BC - Bare Copper | 25 | 50 |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 0.88 mm (0.035 in) | White & Blue, White & Orange, White & Green, White & Brown, White & Grey, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Grey, Black & Blue, Black & Orange, Black & Green, Black & Brown, Black & Grey, Yellow & Blue, Yellow & Orange, Yellow & Green, Yellow & Brown, Yellow & Grey, Violet & Blue, Violet & Orange, Violet & Green, Violet & Brown, Violet & Grey |
| Table Notes: | Telecom Color Order |
| Description |
|---|
| 2+8+15 pairs twisted in concentric layers and covered with a polyester foil |
| Material | Nom. Diameter | Ripcord |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 12.2 mm (0.480 in) | Yes |
| Overall Cable Diameter (Nominal): | 12.2 mm (0.480 in) |
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 93.8 Ohm/km | 66 pF/m (20 pF/ft) | 330 pF/100m | 100 Ohm |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. SRL (Structural Return Loss) [dB] |
|---|---|---|---|---|
| 0.772 | 2.2 dB/100m | 45 | 43 | 12 |
| 1 | 2.6 dB/100m | 44 | 41 | 12 |
| 4 | 5.6 dB/100m | 34 | 32 | 12 |
| 8 | 8.5 dB/100m | 29 | 27 | 12 |
| 10 | 9.7 dB/100m | 28 | 26 | 12 |
| 16 | 13.1 dB/100m | 25 | 23 | 10 |
| Voltage Rating |
|---|
| 72 V DC |
| Operating | Installation |
|---|---|
| -30°C to +60°C | 0°C To +50°C |
| Stationary Min. | Installation Min. |
|---|---|
| 61 mm (2.4 in) | 183 mm |
| Environmental Suitability: | Outdoor |
| Data Category: | Category 3 |
| ISO/IEC Compliance: | ISO/IEC 11801-1 |
| European Directive Compliance: | EU CE Mark |
| Notes: | Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. |
| Update and Revision: | Revision Number: 0.237 Revision Date: 12-12-2023 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| NN00097.00305 | Gray | Reel | 305 m | 8719605103482 |
| NN00097.001000 | Gray | Reel | 1,000 m | 8719605103475 |
