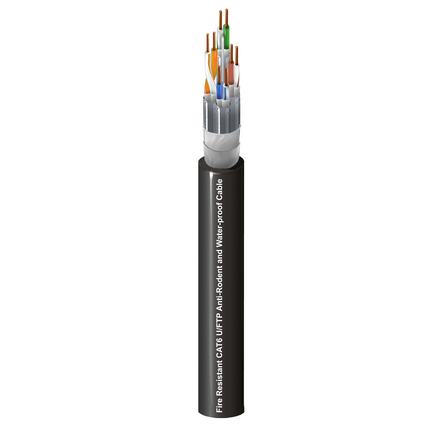

(4)23 AWG solid bare copper conductors, Polyethylene insulation, Mica Glass Tape Fire Protection, Individual Shielded Pair (U/FTP), Central Drain Wire, Mica Glass Tape and Water Blocking tape, LSZH Jacket, Anti-Rodent and Water-block
| Suitable Applications: | Industrial Ethernet Cat 6 connection with Fire Resistant capability |
| Element | Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|---|
| Conductor(s) | 23 AWG | Solid | BC - Bare Copper | 4 | 8 |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PE - Polyethylene | 1.58 mm (0.0622 in) | Blue & White with Blue Strip, Orange & White with Orange Strip, Green & White with Green Strip, Brown & White with Brown Strip | Fire Protection Barrier: Mica glass Tape(MGT) |
| Element | Shield Type | Material | Drainwire Type | Notes |
|---|---|---|---|---|
| Individual Shielded Pair | Tape | Bi-Laminate (Alum+Poly) | 26 AWG (Solid) TC | Fire Protection Barrier: Mica Glass Tape(MGT), Water blocking structure: Water block tape |
| Material | Nom. Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 11.40 mm (0.4488 in) |
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| 73.2 Ohm/km @ 20 Deg. C | 100 Ohm |
| Max. Delay Skew |
|---|
| 45 ns/70m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 4 | 3.8 dB/70m | 66.3 | 63.3 | 56.0 | 53.0 | 23.0 |
| 10 | 6.0 dB/70m | 60.3 | 57.3 | 48.0 | 45.0 | 25.0 |
| 20 | 8.5 dB/70m | 55.8 | 52.8 | 42.0 | 39.0 | 25.0 |
| 25 | 9.6 dB/70m | 54.3 | 51.3 | 40.0 | 37.0 | 24.3 |
| 31.25 | 10.7 dB/70m | 52.9 | 49.9 | 38.1 | 35.1 | 23.6 |
| 62.5 | 15.5 dB/70m | 48.4 | 45.4 | 32.1 | 29.1 | 21.5 |
| 100 | 19.9 dB/70m | 45.3 | 42.3 | 28.0 | 25.0 | 20.1 |
| 200 | 29.1 dB/70m | 40.8 | 37.8 | 22.0 | 19.0 | 18.0 |
| 250 | 33.0 dB/70m | 39.3 | 36.3 | 20.0 | 17.0 | 17.3 |
| UL Voltage Rating |
|---|
| 60 V |
| Table Notes: | Temperature range : -40°C To +80°C |
| Environmental Suitability: | UV Resistance, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23 |
| Data Category: | Category 6 |
| TIA/EIA Compliance: | ANSI/TIA 568.2-D |
| ISO/IEC Compliance: | IEC 61156-5, IEC 61034-2 - Smoke Density Min Transmittance = 60% |
| European Halogen Free Standards: | IEC 60754-1 - Halogen Amount = 0.50%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| Update and Revision: | Revision Number: 0.2 Revision Date: 09-03-2025 |
