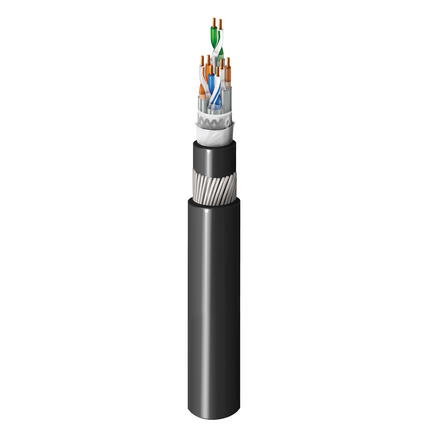

(4)DataTuff™ Industrial Ethernet CAT6A 4x2x23AWG/1 S/FTP SWA Fire Resistant (EN 50200-PH120 & BS 6387 CWZ) Anti-termite & Water proof
| Suitable Applications: | Industrial Ethernet Cat 6A connection with Fire Resistant capability |
| Size | Stranding | Stranding Class | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|---|
| 23 AWG | Solid | Class 1 | BC - Bare Copper | 4 | 8 |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PE - Polyethylene | 1.17 mm (0.0461 in) | Blue & White with Blue Strips, Orange & White with Orange Strips, Green & White with Green Strips, Brown & White with Brown Strips | Fire Protection Barrier: Mica glass Tape(MGT) |
| Element | Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|---|
| Individual Pair | Tape | Bi-Laminate (Alum+Poly) | 26 AWG (Solid) TC | All four pairs laid up together, bound by a fire-protection barrier of mica-glass tape (MGT) | |
| Overall | Braid | Tinned Copper (TC) | 60% | Water-blocking tape is wrapped over the braid shielding |
| Material | Nom. Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 12.7 mm (0.500 in) |
| Armor Type & Material |
|---|
| SWA - Steel Wire Armor |
| Material |
|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Overall Cable Diameter (Nominal): | 16.1 mm (0.634 in) |
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| 73.2 Ohm/km @ 20 Deg. C | 100 Ohm |
| Max. Delay Skew |
|---|
| 45 ns/70m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|---|---|
| 4 | 3.8dB/70m | 66.3 | 63.3 | 56.0 | 53.0 | 23.0 |
| 10 | 5.9 B/70m | 60.3 | 57.3 | 48.0 | 45.0 | 25.0 |
| 20 | 8.4 dB/70m | 55.8 | 52.8 | 42.0 | 39.0 | 25.0 |
| 25 | 9.4 dB/70m | 54.3 | 51.3 | 40.0 | 37.0 | 24.3 |
| 31.25 | 10.5 dB/70m | 52.9 | 49.9 | 38.1 | 35.1 | 23.6 |
| 62.5 | 15.0 dB/70m | 48.4 | 45.4 | 32.1 | 29.1 | 21.5 |
| 100 | 19.1 dB/70m | 45.3 | 42.3 | 28.0 | 25.0 | 20.1 |
| 250 | 31.1 dB/70m | 39.3 | 36.3 | 20.0 | 17.0 | 17.3 |
| 300 | 34.3 dB/70m | 38.1 | 35.1 | 18.5 | 15.5 | 17.3 |
| 500 | 45.3 dB/70m | 34.8 | 31.8 | 14.0 | 11.0 | 17.3 |
| Voltage Rating |
|---|
| 60 V |
| Operating |
|---|
| -40°C to + 80°C |
| Environmental Suitability: | UV Resistance, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23, BS 6387 CWZ |
| Resistance to Fire: | EN 50200-PH120 |
| Data Category: | Category 6A |
| TIA/EIA Compliance: | EIA/TIA 568.2-D |
| ISO/IEC Compliance: | IEC 61156-5, IEC 61034-2 - Smoke Density Min Transmittance = 60% |
| European Halogen Free Standards: | IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| Update and Revision: | Revision Number: 0.27 Revision Date: 07-29-2025 |
