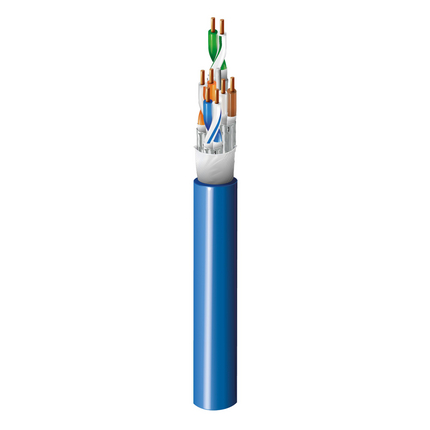

(4)DataTuff™ Industrial Ethernet CAT5e 4x2x23AWG/1 U/FTP Fire Resistant
| Suitable Applications: | This Category 5e Cable is a cable standard for Gigabit Ethernet, capable to continue transmitting data even when being directly attacked by fire. |
| Size | Stranding | Stranding Class | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|---|
| 23 AWG | Solid | Class 1 | BC - Bare Copper | 4 | 8 |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PE - Polyethylene | 1.58 mm (0.0622 in) | Blue & White with Blue Strips, Orange & White with Orange Strips, Green & White with Green Strips, Brown & White with Brown Strips | Fire Protection Barrier: Mica glass Tape(MGT) |
| Shield Type | Material | Drainwire Type | Notes |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 26 AWG (Solid) TC | All 4 Pairs laid up together & binded by Fire Protection Barrier: Mica Glass Tape(MGT) |
| Material | Nom. Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 10.80 mm (0.4252 in) |
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| 73.2 Ohm/km @ 20 Deg. C | 100 Ohm |
| Max. Delay Skew |
|---|
| 45 ns/100m |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. RL (Return Loss) [dB] |
|---|---|---|---|---|
| 1 | 2.04 | 65.3 | 62.3 | 20 |
| 4 | 4.05 | 56.3 | 53.3 | 23 |
| 8 | 5.77 | 51.8 | 48.8 | 24.5 |
| 10 | 6.47 | 50.3 | 47.3 | 25 |
| 16 | 8.25 | 47.2 | 44.2 | 25 |
| 20 | 9.27 | 45.8 | 42.8 | 25 |
| 25 | 10.42 | 44.3 | 41.3 | 24.3 |
| 30 | 11.47 | 43.1 | 40.1 | 23.8 |
| 31.25 | 11.72 | 42.9 | 39.9 | 23.6 |
| 62.5 | 16.99 | 38.4 | 35.4 | 21.5 |
| 100 | 21.98 | 35.3 | 32.3 | 20.1 |
| Operating |
|---|
| -40°C to + 80°C |
| Environmental Suitability: | UV Resistance, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23 |
| AWM Compliance: | AWM 21130 |
| Data Category: | Category 5e |
| TIA/EIA Compliance: | ANSI/TIA 568.2-D |
| European Halogen Free Standards: | IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| Update and Revision: | Revision Number: 0.2 Revision Date: 09-03-2025 |
