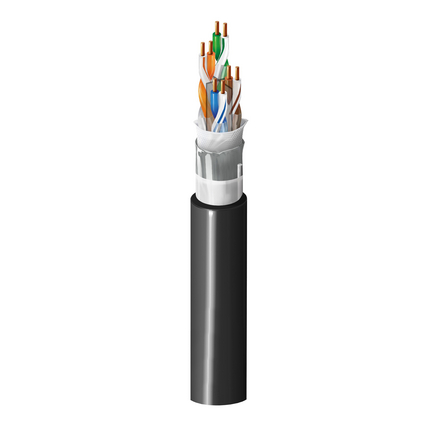

(4)DataTuff™ Industrial Ethernet CAT5e 4x2x22AWG/1 F/UTP Fire Resistant
| Suitable Applications: | This Category 5e Cable is a cable standard for Gigabit Ethernet, capable to continue transmitting data even when being directly attacked by fire. |
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 AWG | Solid | BC - Bare Copper | 4 |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PE - Polyethylene | 1.23 mm (0.0484 in) | Blue & White with Blue Strips, Orange & White with Orange Strips, Green & White with Green Strips, Brown & White with Brown Strips | Fire Protection Barrier: Mica glass Tape(MGT), Twist Direction = S |
| Notes |
|---|
| All 4 Pairs laid up together over a cross filler & binded by Fire Protection Barrier: Mica Glass Tape(MGT) |
| Material |
|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) |
| Overall Cable Diameter (Nominal): | 10.60 mm (0.4173 in) |
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| 54.3 Ohm/km @ 20 Deg. C | 100 Ohm |
| Max. Delay Skew |
|---|
| 45 ns/100m |
| 536 ns/100m |
| Voltage Rating |
|---|
| 60 V |
| Operating |
|---|
| -40°C to + 60°C |
| Environmental Suitability: | UV Resistance, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-22, IEC 60331-23 |
| AWM Compliance: | AWM 21130 |
| Data Category: | Category 5e |
| TIA/EIA Compliance: | EIA/TIA 568 |
| European Halogen Free Standards: | IEC 60754-1 - Halogen Amount = 0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| Other Standard Compliance(s): | BS EN 50289-4-16 |
| Update and Revision: | Revision Number: 0.12 Revision Date: 02-26-2026 |
