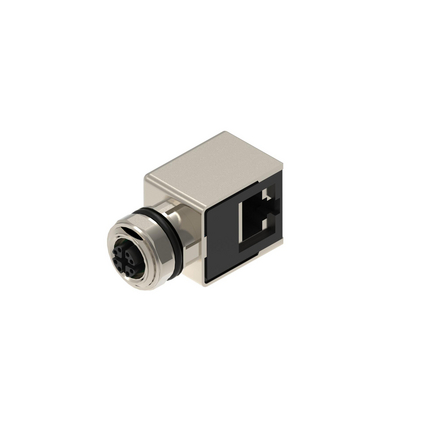

(4)M12 X-Code to RJ45 Ethernet Adapter, angled version, M12 side with wall mount, RJ45 side angled, Rail Applications, EN45545
| Housing Color: | nickel-plated silver |
| Number of Pins: | 8 |
| Design Standard: | IEC 61076-2-109 |
| Contact Bearer Color: | black |
| Contact Bearer Material: | LCP |
| Rated Current*: | 0.5 A |
| Rated Voltage: | 48 V AC / 60 V DC |
| Type of Contact / Gender: | female |
| Contact Base Material: | copper alloy |
| Contact Plating: | gold-plated |
| Housing Material: | GD - ZnAl nickel-plated |
| UL-File: | UL 1977 CSA-C22.2 No. 182.3 |
| Weight: | 48 g |
| Update and Revision: | Revision Number: 0.10 Revision Date: 05-04-2025 |
