NB1800-Wac - High-Performance Router with GbE, GbE/SFP Combo, WLAN-ac,


Hich-Performance Router with 1x Gigabit Ethernet , 1x Gigabit / SFP Combo, WLAN 802.11ac (Wi-Fi 5),

Product Overview

Name: NB1800-Wac
WAN: IPv4; IPv6; IP Passthrough; DynDNS Client; PPPoE;

Product Life Cycle

Life Cycle: Active - Product is available

General Information

Scope of delivery: Device, General safety instructions, 1x Terminal block 3.5mm

More Interfaces

USB interface: 1 x USB 2.0 socket to connect an approved USB storage device, USB Type A socket
Local Management and Device Replacement: Management via Web (HTTPs); Command Line Interface (CLI) over SSH/Serial/Web; SNMP v1/v2c/v3; Discovery via LLDP, CDP, FDP, SONMP, EDP, IRDP
Ethernet: Gigabit Ethernet: Auto MDIX, 1000/100/10 Mbps; 1x RJ45; 1x Combo RJ45 or SFP (SFF-8472, max. Class 1 module, 1.25 GBd ±100 ppm, 3.3 VDC ± 10%)
Power Supply: 5-pin terminal block (connector included)
Serial: 1x RS-232, RS-485; Signals GND, TX, RX; Up to 115kBit/s
CPU: 1.3 GHz dual-core
Memory: 1 GB RAM
Storage: 4 GB flash
LEDs: 6 LEDs + Ethernet LEDs (Speed, Activity)
Reset Function: Pin-hole push button for reboot and factory reset

Radio technology

Modules
DescriptionMIMOAntenna ConnectorAdditional Radio FeaturesRadio ProtocolFrequency BandAccess Point FunctionalityClient / STA Functionality
Module 42x2 MIMO; Max. 866 Mbps2x SMA femaleWLAN FCC ID: TK4WLE600VX802.11 a/b/g/n/ac (Wi-Fi 5)WLAN 2.4 or 5 GHzYes (up to 100 clients)Yes
Load Balance: Link Prioritizatoin and Aggregation; Load Balancing; Diffserv; SFQ; HTB; Priority based Queuing

Diagnostics features

Alarm and event actions: Email; SMS
Monitoring: Watchdogs (Hard- and Software); Link Supervision; MQTT Broker

Security features

Multipoint VPN: VXLAN, CSD dial-in, OpenVPN, IPSec, GRE, L2TP, PPTP, IKEv1/v2

Service

Other services: DNS Cache;

Software

Firmware Storage: Fail-safe update (FOTA); Software Update via USB, HTTP(s) (push), FTP (pull), SFTP (pull), TFTP (pull)
Radius Server: External Radius Server Management User Authentication
Software features: Software Development Kit (SDK);
Software Version: 5.0 (updates free of charge)
Operating system: NRSW (NetModule Router Software)
Switching: VLAN (802.1Q)
Redundancy: Multipath TCP, VRRP (Virtual Router Redundancy Protocol), RSTP (Rapid Spanning Tree Protocol)
Diagnostics: Netflow (Softflow), Ping, Traceroute, Tcpdump, Speed Test
Configuration: DHCP Client and Server
Security: Certificate Management (SCEP Client, Signing Requests), Certificate formats: PKCS12, PKCS7, PEM/DER, RSA/Ed25519 (OpenSSH/Dropbear), "Let's encrypt" support, Elliptic Curve Certificates (ECC), 802.1x for LAN, Stateful Firewall, Connection Tracking, Bridge Filtering
Time synchronisation: NTP Client and Server, SNTP Server
Routing: Destination, Policy, Multipath, OSPF, BGP, Multicast, TCP-MSS Clamping, NAT, NAPT, Masquerading
Management Software: Compatible with "Connectivity Suite"
Cellular Functions: Signal Strength Monitoring

Ambient conditions

Air Pressure (Operation): Up to 4000m above sea level
Degree of Protection when Installed: IP40
Relative humidity (non-condensing): 0-95 %

Mechanical construction

Dimensions (WxHxD): 61 mm x 128/140 mm x 121 mm
Weight: 800 g
Housing Material: brushed aluminium
Mount Type: DIN Rail 35 mm
Labeling: Type label on bottom

Approvals

Basis Standard: CE according to 2014/53/EU (RED), UKCA (RER), FCC
UK Regulation Compliance: UKCA Mark
Suitability - Indoor: Yes

Further Instructions

History

Update and Revision: Revision Number: 0.4 Revision Date: 12-15-2025
Variants
Item #Type
942998235NB1800-Wac
Belden-NetModule-Industrial-2023-10-BR-EN.pdf
NB1800_NB1810_CE_DoC.pdf
NB1800_Installation_Instruction.pdf

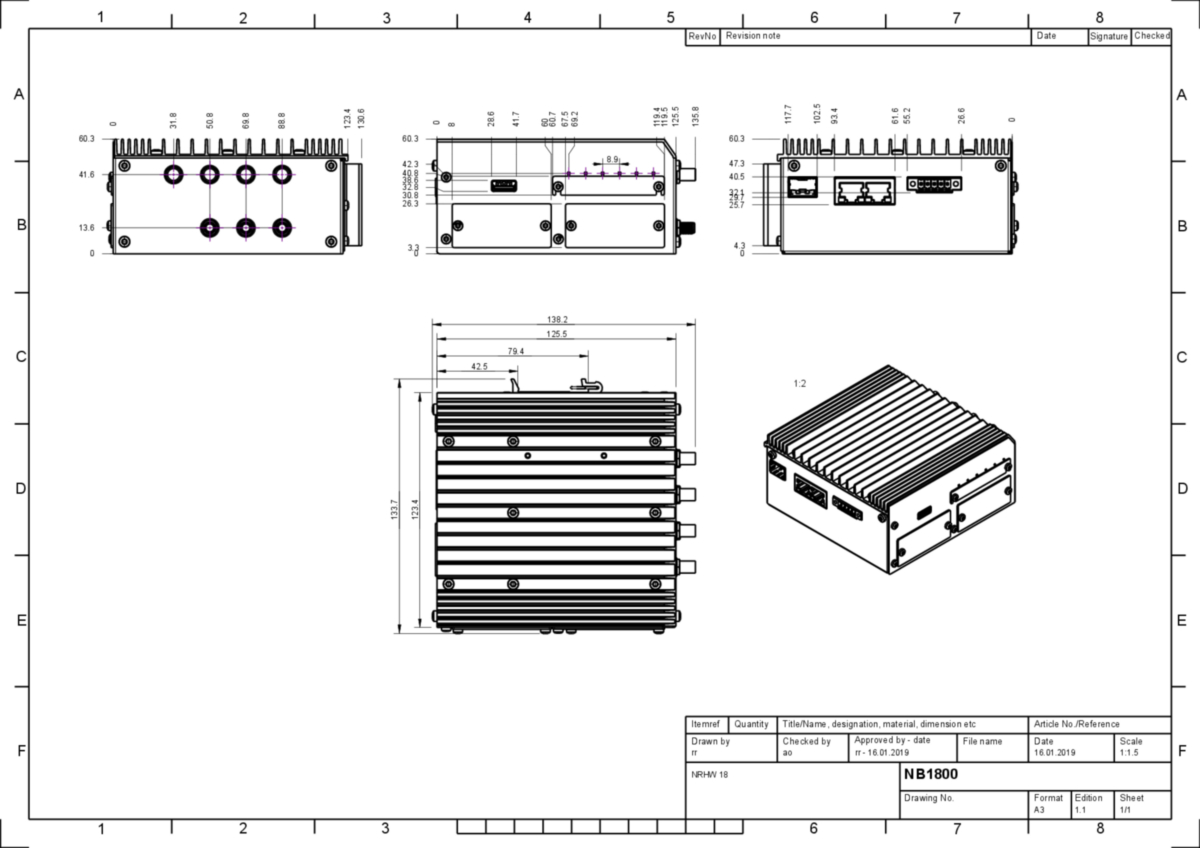

NB1800_enclosure.pdf
NB1800_3D.zip
