(109)Environmental Monitors and Sensors
| Product Overview: | Belden Climate monitors and sensors allow precise monitoring/alarming of key environmental parameters for improved equipment availability in mission-critical applications (data center, networking closet, remote locations) |
| Benefits: | Built-in intuitive web interface for remote access via Ethernet browser, Built-in and external sensor options (temperature, humidity, airflow, water detection, door position, smoke), SNMP-enabled for compatibility with leading DCIM package Recognize IP-based camera for space viewing, Set alarm threshold, can be sent to up to five e-mail addresses, Allows viewing of data graphs and analysis of historical logs, Power Supply included as noted, UL & cUL Listed |
| Environmental Space: | Indoor |
| Part # | Description |
|---|---|

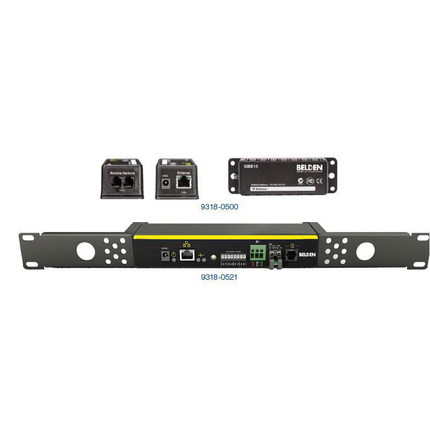

| 9318-0500 | Environmental Monitor, on-board Temperature, Humidity and dew-point sensors, capacity to add 4 digital, US Power Supply included |
| 9318-0503 | Remote Temperature, Airflow, Humidity and Dew Point Sensor, 12ft |
| 9318-0515 | Remote Temperature, Airflow, Humidity and Dew Point Sensor, 20' |
| 9318-0516 | Remote Temperature, Airflow, Humidity and Dew Point Sensor, 50' |
| 9318-0518 | Remote Temperature, Humidity and Dew Point Sensor |
| 9318-0520 | Five Way Splitter for Remote Sensors |
| 9318-0521 | Environmental Monitor, on-board temperature, humidity and dew-point sensors, one relay contact, capacity to add 4 digital and 4 I/O sensors, "Universal" power supply included |
| 9318-0522 | Analog to Digital Converter, 10' Cable allows you to interface an analog sensor to a Plug-n-Play port. It is compatible with 9318-0500 - 9318-0521 - 9318-0527 - 9318-0543 environment monitors and Belden Upgradeable PDUs |
| 9318-0523 | Environmental Monitor, on-board temperature, humidity and dew-point sensors, one relay contact, capacity to add 4 digital and 4 I/O sensors, built-in PoE, NO power supply included |
| 9318-0527 | Environmental Monitor, on-board temperature, humidity and dew-point sensors, capacity to add 4 digital, built-in PoE, "Universal" power supply included |
| 9318-0530 | Leak Detection Cable Kit, 10' |
| 9318-0534 | Flood Sensor, 15' |
| 9318-0535 | Photoelectric Smoke Alarm, 120V, Battery Back-up |
| 9318-0536 | Sensor, Smoke Detector, No Alarm |
| 9318-0537 | Power Failure Sensor, US Power Supply |
| 9318-0542 | Remote Temperature x3, Humidity and Dew Point Sensor |
| 9318-0543 | Environmental Monitor, on-board temperature, humidity and dew-point sensors, one relay contact, capacity to add 4 digital and 4 I/O sensors, built-in PoE, US power supply included |
| 9318-0544 | Remote Temperature Sensor, 25' |
| 9318-0545 | Photoelectric Smoke Alarm, 220V, Battery Back-up |
| 9318-0546 | Leak Detection Cable Kit, 40' |
| 9318-0553 | Leak Detection Extension Cable, 100' |
| 9318-0554 | Leak Detection Extension Cable, 50' |
| 9318-0555 | Leak Detection Extension Cable, 25' |
| 9318-0556 | Leak Detection Extension Cable, 10' |
| 9318-0557 | Remote Temperature, Humidity and Dew Point Sensor, 50' Cord |
| 9318-0558 | Environmental Monitor, on-board temperature, humidity and dew-point sensors, capacity to add 4 digital, built-in PoE, US power supply included |
| 9318-0501 | Remote Temperature Sensor, 12' Cord |
| 9318-0504 | Door Position Sensor, magnetic, with 30ft wire |
| 9318-0506 | Remote PDU Display, RJ12 Connection |
| Update and Revision: | Revision Number: 0.253 Revision Date: 04-19-2022 |
