(4)Cloud-native ZTNA solution with next-gen VPN, micro-segmentation, and compliance enforcement. Ensures secure access to on-prem, private, and public cloud resources via policy-driven identity and device posture checks.
| License: | Subscription user / annum |
| Configuration functions: | Zero Trust Network Access, Secure Defined Perimeter |
| Alarm and event actions: | Authentication success/failure (user, device), Endpoint security posture evaluations, Gateway connections (local/cloud), Resource access logs (IP, ports, protocols), Quarantine/remediation alerts based on compliance |
| Event generation: | Authentication success/failure (user, device), Endpoint security posture evaluations, Gateway connections (local/cloud), Resource access logs (IP, ports, protocols), Quarantine/remediation alerts based on compliance |

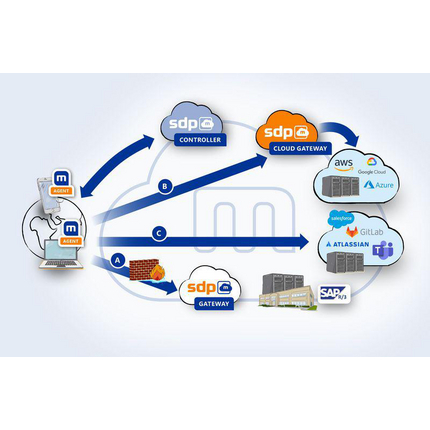

| Modules and components: | SDP Agent (Windows, macOS, Linux, Android, iOS), SDP Controller (cloud-based policy engine), Local SDP Gateway (OVF/Debian), Cloud SDP Gateway |
| Monitoring: | Logs authentication events, device posture, access attempts, compliance status; triggers quarantines and remediation actions |
| Topology recognition: | none |
| Security functions: | Encrypted tunnels, Micro-segmentation, Endpoint compliance checks, Identity-based access, Quarantine capabilities |
| Operating system: | Windows, macOS, Linux, Android, iOS |
| Browser: | Microsoft Edge, Google Chrome, Mozilla Firefox |
| Integration & APIs: | SAML, OpenID Connect, LDAP, Kerberos |
| Processor: | 2 CPU (virtual or physical) |
| Hard disk space: | 50 GB |
| RAM: | 4 GB |
| Network: | Supports IP/port segmentation via gateways, Encrypted resource-specific tunnels, Multi-site and scalable with gateway clustering, IPv4 Ethernet Interface, Deployable as OVF appliance or Debian package |
| Supported protocols: | WireGuard, IPSec, OpenVPN, SAML, OpenID |
| Compliance Standards: | GDPR-compliant, Supports endpoint compliance policies |
| Manual and help texts: | English, German |
| Menus and dialogs: | English, German |
| Scope of delivery: | Software download + Access to functionality under licensing model |
| Product Documentation: | Embedded in Product |
| Update and Revision: | Revision Number: 0.21 Revision Date: 11-04-2025 |
